TSX200 Stanton Frames 3mm

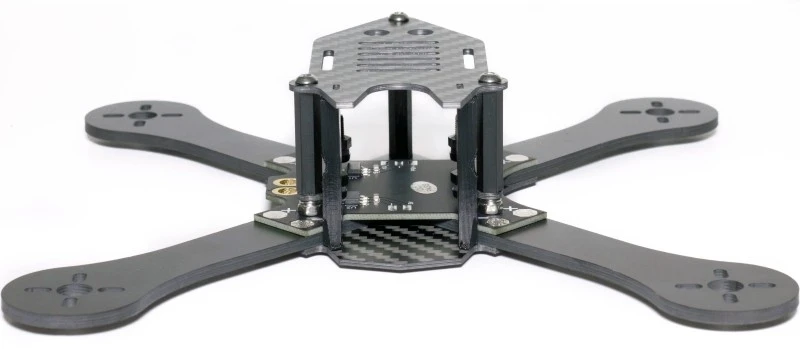

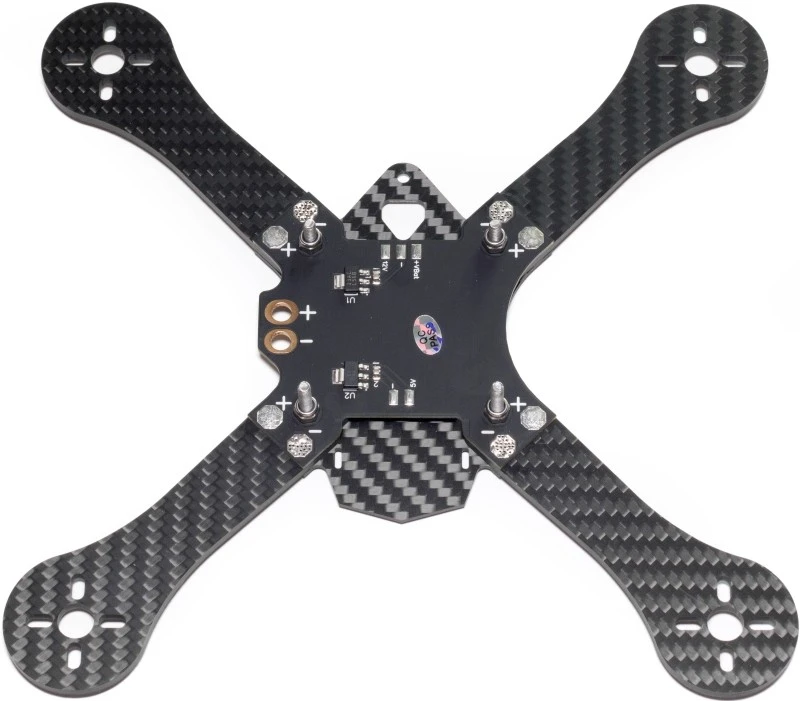

The TSX200 Stanton Frame FPV airframe is a more agile and lighter than the previous TSX frames, cut from high quality matte carbon twill at only 78 grams when built using the 3mm arms, the TSX200 strikes the balance between strengh and weight using 1.5mm Carbon Fibre for the main frame plates.

The TSX200 has been designed to allows you to fit your flight controller and electronics in with ease, the included power distrubition board has two filtered linear regulators, these provide 5 and 12 volt supplies which helps keep builds neat and tidy and makes building more convinient.

Incorporating a unique design that requires only ONE bolt per arm has greatly improved the strength and simplicity of the TSX200 frame. This design also allows the mounting of the flight controller to be separate from the standoffs, so the application of soft mounting is possible.

Specification

• Size: 200mm

• Weight: 78g (3mm arms)

• Max prop size: 5″

• PDB: 3oz copper with 5v and 12v regulators

• Standoffs: Nylon

• Carbon finish: Matte Twill

TSX200 Build Manual
