TBS Unify Pro Nano 5.8Ghz VTX

TBS Unify Pro Nano 5.8Ghz

The demand for a new high-quality micro video transmitter increases as the innovation of micro brushless and brushed motor driven quads rises, that is exactly what the TBS Unify Pro Nano is designed for. TBS has engineered the smallest VTX possible, focusing on size, weight and efficiency bringing you another fantastic product to feature on your next micro project.

Whilst still supporting the Unify Pro pedigree, a revised u.FL and smart audio port will add to your experience and blow you away with the performance of range, signal spacing and signal clarity. A variable output of 25-50mW has been chosen to suit various applications and environments.

This product is suitable for use with the TBS Tiny Camera.

Specifications

• Input Voltage: 4.5V – 5V

• Power levels: 25mW / 50mW

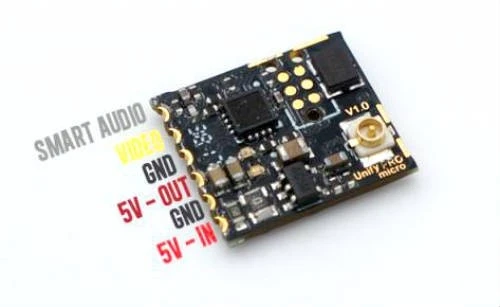

• Interface: SmartAudio and capacitive button (or solder external tactile button separately – included!)

• Weight: 1.4g (incl. antenna)

• Size: 13.2mm x 14.6mm

• Antenna connector: u.FL (upgraded)

• Antenna length: 45.6mm (end to end)

• TBS Tech: Smart Audio, Clean Switch

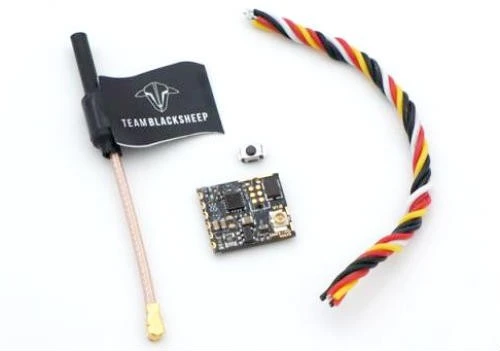

Includes

• 1x Unify Pro nano 5G8 VTX

• 1x button switch

• 1x TBS UNIFY PRO 5G8 Linear Antenna

• 6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)

Downloads

• TBS Unify Pro Manual
