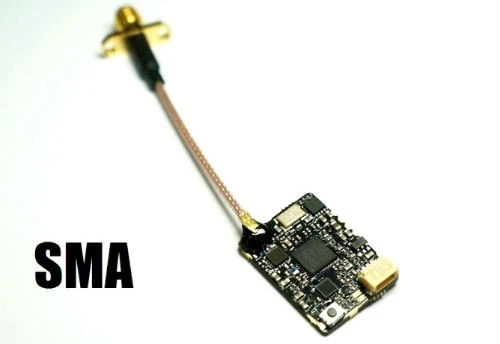

TBS Unify Pro 5.8GHz SMA V3

The TBS Unify Pro 5.8GHz SMA V3 is one of the most popular, smallest and most powerful video transmitter on the market from TBS. The TBS Unify Pro 5.8GHz SMA V3 runs on 5V and has additional protection against power spikes upto 13V, with the built in filters, the power supplied is cleaned which means that you get a clean video signal. With a brand new active output power monitor, we ensure that you’ll always meet the race requirements while giving you the best possible picture.

Do not connect the TBS Unify Pro 5.8GHz SMA V3 direct to LiPo power as this will damage it, if you need to connect direct to your LiPo please use the TBS Unify Pro HV 5.8 GHz SMA.

Weighing only 5g and with a slim form factor, your quad will barely notice it’s there. The 25mW – 800mW adjustable output (please check local laws on power outputs) on the TBS Unify Pro 5.8GHz SMA V3 power allows you to race with friends and then up the power for ultimate penetration with just a few pushes of a button. The 40CH coverage gives you the freedom to fly at any race without having to resort to video transmitter swapping practices.

PitMode – Made To Race

The Pit Mode means zero interference to other pilots on the same channel even while powered up! If you’ve ever repaired a quad during a race, you’ll know the frustrations of not being able to power on and test your system. With PitMode the TBS Unify Pro 5.8GHz SMA V3 will reduce the output power to a bare minimum (way below single digit mW’s), and move to frequencies unused by race organizers, to allow you to power up your quad and still see the image! You’ve got a few meters of range to put your quad through its paces before placing it back on that starting grid, and in combination with CleanSwitch you can power on as soon as your channel is available without interrupting any other pilots.

Smart Audio V2 – Easy Channel and Power Changing

SmartAudio V2 technology provides UART and I2C control for your entire video transmitter. Parameters such as output power, bands, channels and frequency can be easily controlled on the TBS Unify Pro 5.8GHz SMA V3. This enables remote channel control directly from a smart device (TBS Crossfire, external Bluetooth or wifi module required), from your radio (TBS Crossfire with TBS Tango or OpenTX compatible remote required), or from the OSD (e.g. TBS CORE PRO). With all these options available, you ought to find something that fits your needs. Together with CleanSwitch, the sky is literally the limit … jump between channels without interfering fellow pilots in the air, create backup-/emergency-frequencies, global VTX power adjustments by race organizers or other clever systems aimed at streamlining and improving race management are now a possibility!

Cleanswitch – Neighbor Friendly

CleanSwitch is a technology that was developed at TBS, it ensures that your video transmitter is interference-free while powering on, or while changing channels. All current video transmitters swipe across the entire band while being powered on, often resulting in flickering and heavy interference to anyone in the air, regardless of video channel chosen. With the TBS Unify Pro 5.8GHz SMA V3 the TBS CleanSwitch will allow you to power on and change channels while your buddies are in the air, without any external interference. CleanSwitch is race friendly, and pilot friendly …

Say No! To Dipswitches

TBS Unify Pro 5.8GHz SMA V3 has no dipswitches, in practice a single-push-button or OSD-controlled video transmitter is just much easier to operate. Gone are the days of video transmitter cards, stepping on people’s channels by mistake, or a mismatch between your goggle and video transmitter frequencies.



Specifications

• Operating Voltage: 4.5-5.5V

• Supply current: up to 600mA

• Operating Temperature: watch for normal airflow

• Audio carrier Frequency: 6.5 MHz

• Video Input Impedance: 75 Ohm

• Weight: 5g (with SMA, without antenna)

• Antenna Connector: SMA Female Socket with screw mounting holes

• Video Format: NTSC/PAL

• Output Power: 13dBm (25mW), 23dBm (200mW), 27dBm (500mW), 29dBm (800mW*)

Included

• TBS UNIFY PRO 5G8 V3 Video transmitter

• 5V Video Transmitter pigtail cable

• TBS Manual
