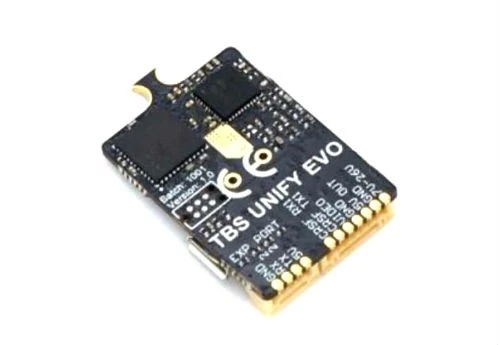

TBS Unify EVO 5.8GHz VTX (SMA)

The TBS Unify EVO VTX comes with a built-in graphical OSD and microphone, the TBS Unify EVO VTX talks all the protocols and transmits all the power levels! This makes it a perfect companion for any situation where you don’t have an OSD, or want to benefit from the simplicity and clarity that the TBS OSD is known for.

TBS packed all the features that they could into the smallest form factor possible. When TBS set out to make the TBS Unify EVO video transmitter they looked to make something that would fit all uses for analog video transmitters ever envisioned. Long range, racing, freestyle, wings, cars. You name it, the TBS Unify EVO VTX will shine in that application. More features are still under development and they can be loaded via the TBS AgentX with the onboard USB port.

The TBS Unify EVO VTX is capable of processing the camera image, TBS taught it to read barcodes! This means the VTx no longer needs to be transmitting to set channels, and setting channels can be done in the pits. This means that there is no more guesswork what channel the VTx is on, simply point it at the barcode of your choice and it will move to that channel or power level! There are many more exciting features coming with this technology, stay tuned and barcode on!

CRSF is the defacto standard in FPV and racing drones, so it makes sense that in theTBS Unify EVO VTX video transmitter can both understand as well as speak CRSF. For compatibility, the VTx also speaks SA 2.1 and has the teamrace-friendly pitmode feature. PWM controls allow you to use the VTx with any radio and product. For example, you may have it on your R/C cars, R/C motorcycles or other devices that don’t have flight controllers or Crossfire and control the VTx button with a switch or button you have on the radio.

Specifications:

• Operating Voltage: 6V – 26V (2S – 6S)

• Supply current: (25mW) ~ 0.11A | (100mW) ~ 0.13A | (400mW) ~ 0.18A | (full power) ~ 0.24A

• Operating Temperature: watch for normal airflow

• Video Input Impedance: 75 Ohm

• Weight: 7g

• Dimensions: 30 x 23 x 5.5mm

• Antenna Connector: u.FL socket

• Video Format: NTSC/PAL

• Audio: Microphone included

• Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 29dBm (800mW)



Included:

• 1x TBS UNIFY EVO VTX 5G8 Video transmitter

• 1x u.FL pigtail SMA

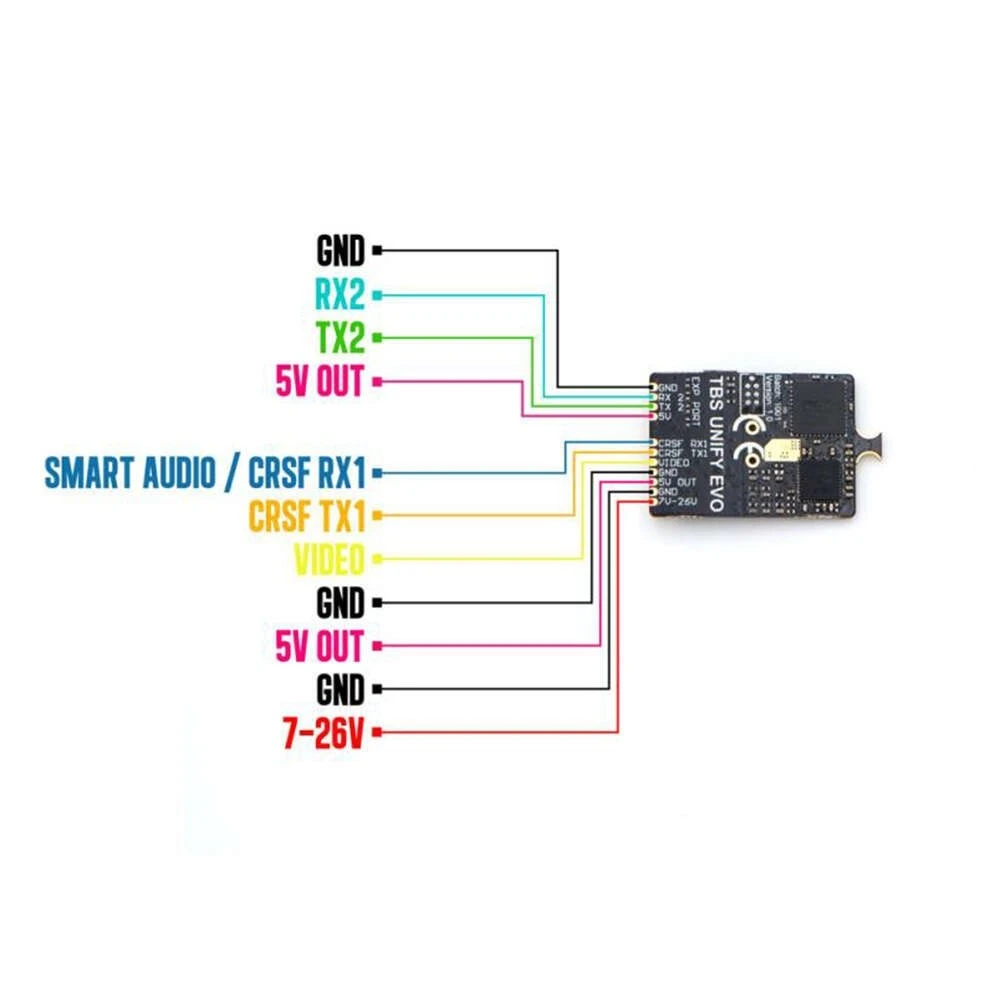

• 1x Power, Camera and CRSF cables

IMPORTANT:

Never turn on your transmitter without an antenna connected this will damage it and this damage is not covered by warranty!
