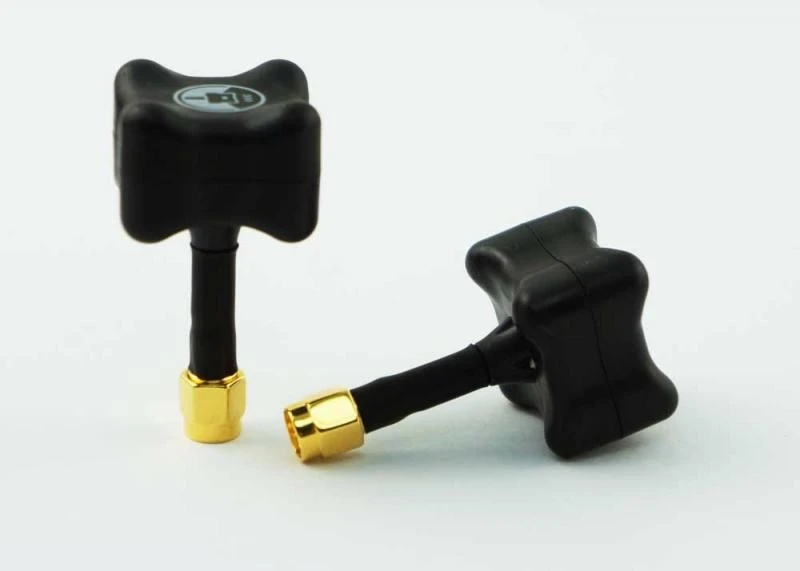

TBS Triumph Stub 5.8GHz Antenna RHCP (SMA) (2 Pack)

While other antennas rely on traditional cloverleaf designs the TBS Triumph takes a giant leap in 5.8 GHz antenna technology. Video Aerial Systems LLC (IBcrazy) and Team-BlackSheep have come together to re-invent how the modern 5.8 circular polarized antenna should look and perform.

In the quest for the cleanest video signal and best range possible, TBS have ventured way beyond the traditional bent lobes of Cloverleaf designs and invested significant time and effort in finding the best antenna designs known to man, and modifying them specifically for FPV use.

After extensive design and testing, TBS focused on making sure the Triumph was durable enough to take even the toughest of abuse. After many test flights and extensive feedback from pilots, they decided to use a double-jacket heavy duty Semi-Rigid cable and tin-plated connectors. For protection, TBS created a special foam-filled and ultrasonic welded enclosure to secure the antenna from inbound trees, or other objects, anything that an antenna may have to take.

Features:



• Manufactured and tested to highest standards

• Best in class range and signal quality

• Extra compact and low weight

• Ultrasonic welded and foam infused cover for ultimate crash-protection

• Double-jacket semi-rigid cable for heavy impact resistance



Specifications:



• Frequency range: 5500-6000MHz

• Gain: 1.26dbic

• Axial Ratio:   0.74

• Cable: RG402 (heavy duty)

• Weight: 8.5g – 9.8g

• Height: 50mm, 1.97 in

• Connector: SMA




Package Contents:

• 2x TBS Triumph Stub antenna SMA
