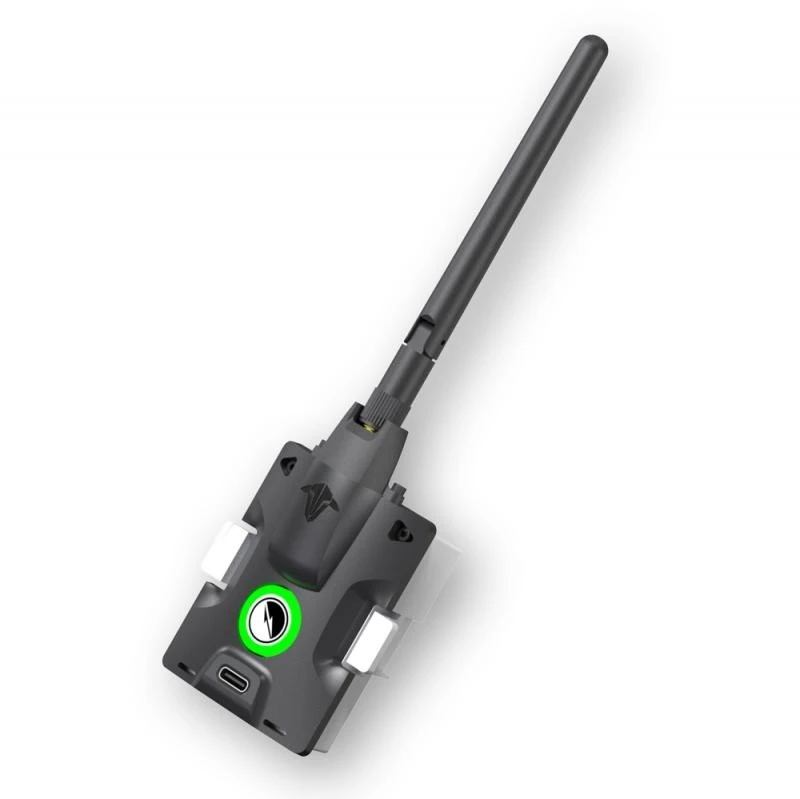

TBS Tracer Micro TX

The TBS Tracer Micro TX borrows its core technology from its larger brother, the TBS Crossfire Long Range Transmitter. The TBS Tracer Micro TX manages to pack in the most sought after features all in a small JR-module transmitter package.

For pilots who are looking to do extreme long range flights beyond 15-20km, the TBS Crossfire TX V2 is still the way to go. For anyone looking to penetrate buildings, fly racing drones, mini quads or just explore your surroundings with a fixed wing up to a 15 kilometres away, the TBS Tracer Micro TX is the perfect choice.

Remote control links, are tasked with much more than just range, in optimum conditions the TBS Tracer Micro TX will still go out to many Km’s . Latency, telemetry, robustness against interference, connectivity with smart devices, ease of use and the overall finish are too often sacrificed for that last bit of range. The Crossfire comes with plenty of range, and uses that margin for additional functionality and reliability. The TBS Tracer Micro TX has a 250Hz link, the fastest available radio and telemetry link with 3ms end to end latency..

Apart from the unparalleled performance, the TBS Tracer Micro TX just works so well. Many of the leading drone racing organizers require pilots to fly the TBS Crossfire and a growing number of drone racers fly the TBS Tracer Micro, due to the price point many of the furthest long range missions are flown with a TBS Crossfire.

TELEMETRY / CRSF

As a modern radio controller link there is built in telemetry as standard, this allows for two-way communications which in turn opens up new possibilities not seen in standard radio controllers. With the TBS Tracer Micro you can look at streaming MAVLink to you smart device, updating your firmware, setting your video transmitter channel or adjusting flight control parameters such as PIDs. The adaptive bandwidth controls the speed of transmission or optimizes for ultimate range. CRSF is a proprietary TBS communication protocol between the Crossfire and Radio controller and Flight Control. It provides ultra-low latency with incredible bandwidth (3x faster, 6x more data than any comparable protocol). With such tight integration, the TBS Crossfire Micro Receiver V2 & TBS Crossfire Micro is the logical choice for anyone flying Betaflight, KiSS or ArduPilot / Pixhawk platforms.



FEATURES:

• Adaptive and robust remote control system for your aircraft

• Immune to on-board noise

• Two-way communication link with real-time link vitals and telemetry

• Self-healing & frequency hopping (DSSS, FHSS)

• Adaptive bandwidth control and range optimization

• Serial Modem capable of transmitting MAVLink or other serial protocols (up & downlink)

• RX beacon mode to recover your downed aircraft

• Low latency, 250Hz update rate (3x faster than typical RC links) control for perfect immersive feeling

• Two receiver models: 8 port Diversity Rx, 4 port Mini-receiver (4g weight!)

• 8 or 12ch output via SBUS/PPM/CRSF on both receivers

• Ability to fly with multiple friends at the same time (10 or more)

• Selectable RF power from 25mW to 100mw (local restrictions apply)

• Transmitter LED shows link health

• Expansion port for future feature support

• Micro-receiver for smaller drones. Smaller than you think!

• Software updates via RF Link



TECHNICAL SPECIFICATIONS:

• Frequency Bands: 2.4GHz

• Input Voltage: 5 – 13V

• USB-C Connector

• Power consumption: 1.1W (@10mW) – 2W (@100mW)

• Dimensions: 65 x 48 x 22 mm (JR module size)

• Weight: 48g



PACKAGE INCLUDES:

• TBS Tracer Micro TX (JR module)

• TBS Tracer Micro Stock TX Antenna
