TBS Tiny Camera

TBS Tiny Camera

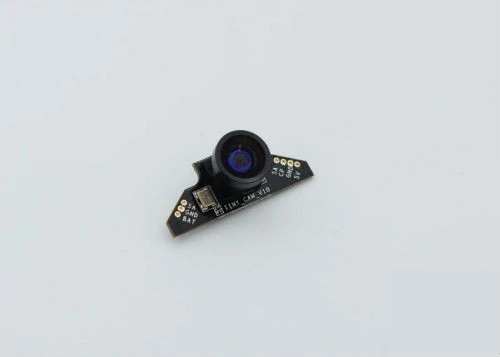

The TBS Tiny Camera is designed for FPV pilots flying the smallest of quads and fixed wing aircraft. TBS Tiny Camera can be used in a variety of applications requiring a small FPV camera, at only 29.5mm wide and 11mm tall you can install this FPV camera just about anywhere. The TBS Tiny Camera is only 1.8 g’s, fitting this camera into the smallest builds without compromising on quallity when the space is small.

The TBS Tiny Camera requires a 5v feed which now most video transmitters and PDB’s will supply, or a 1S Lipo source can also be used. This camera can also pass 5v straight through and out the other side of the board, making it very convenient if you need to power something else in the same circuit as the camera on 5v.

This product is suitable for use with the TBS Unify Pro Nano.

Specifications

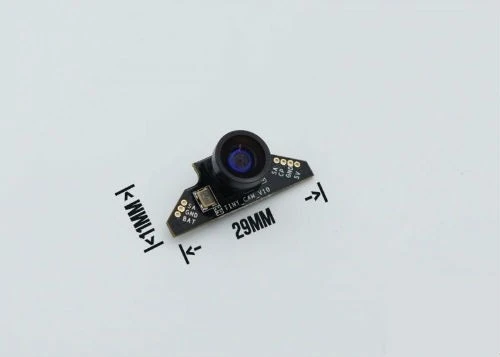

• Dimensions: 29.5mm (flap) or 11mm (top) x 11mm

• Power supply:3.7-5V

• Smart Audio Passthrough

• Resolution: 700TVL

• FOV: 120 degree

• Video format: NTSC

• Mini illumination:1.0lux

• Weight:1.8g

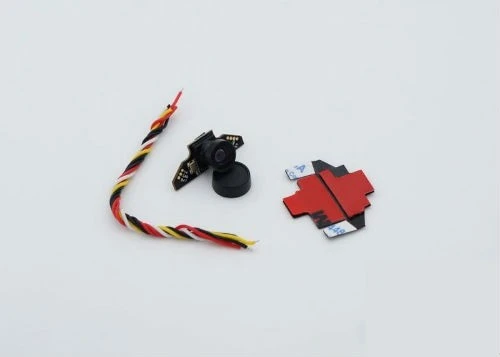

Includes

• 1 x TBS Tiny Camera

• PVC Mount with 3M double sided tape

• 6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)
