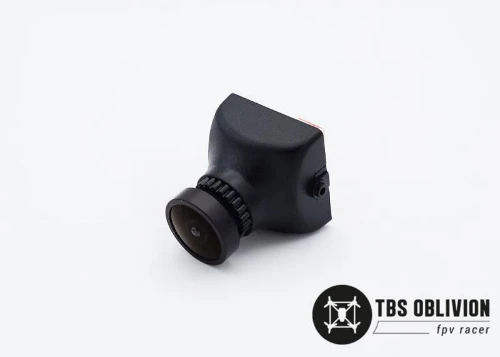

TBS Oblivion 650TVL FPV Camera

The TBS Oblivion FPV Camera is a 600TVL NVP2040 based camera, used on both the TBS Oblivion PNP  & TBS Oblivion RTF racing drones. Built from a strong plastic enclosure with intenal foam padding, which means that the weight is lowered while increasing the durability and strength of the TBS Oblivion FPV camera.

A wide power input range (5-22v) gives you ultimate flexibility and combined with the 1/3 Sony Super HAD II CCD sensor you will have a crisp colour rich image to enhancing your flying experience. This camera is similar in size to a Rucam Swift V2, and therefore can be used on most racing frames, however it has been optimized for use with the TBS Oblivion racing drones.

Specifications:

• Lens: 2.5mm Lens

• DSP: Nextchip 2040

• CCD: 1/3″ Sony SUPER HAD II CCD

• Resolution: 600TVL (color), 650TVL (Black & White)

• TV Format: NTSC

• Power Input: DC5V~22V

• Power Consumption: 70mA
