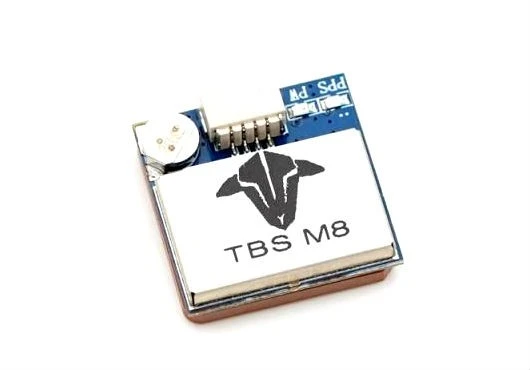

TBS M8 GPS GLONASS

The TBS M8 GPS Glonass is a 18x18x6mm GPS module ideal for planes, micro or larger quads. The TBS M8 GPS Glonass unit only weighs 5.8g and it can be powered from 3.3v.

Specifications:

• Chipset – ublox UBX-M8030

• Frequency – L1, 1575.42MHz

• Baud Rate – 4800,9600,19200,38400,57600,115200bps

• Channel – 72

• Sensitivity – (Tracking: -164dBm) | (Capture: -159dBm) | (Cold Start – 147dBm)

• Cold start – Average 26 seconds

• Warm start – Average 24 seconds

• Hot start – Average 1 second

• Accuracy – (Horizontal Position:Autonomous<2.5m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns)

• Maximum height – 50000m

• Maximum speed – 500 m/s

• Maximum acceleration – ≦ 4G

• Refresh Rate – 1-10 Hz

• Size – 18 x 18 x 6mm

• Weight – 4.3g

• Input Voltage – 3.3V
