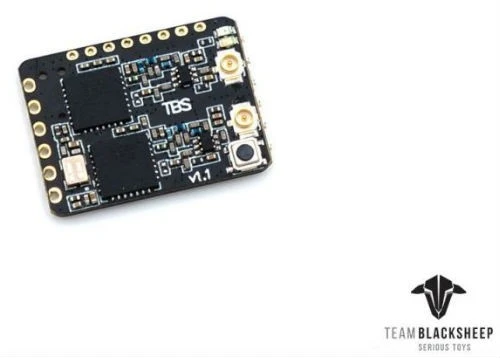

TBS Crossfire Diversity Nano RX

The TBS Crossfire Diversity Nano RX is redefining long range FPV flying. TBS have made the most powerful Crossfire receiver to date, this is the smallest full-fledged diversity receiver of any frequency, even boasting a power-redundancy circuit (battery not included!)

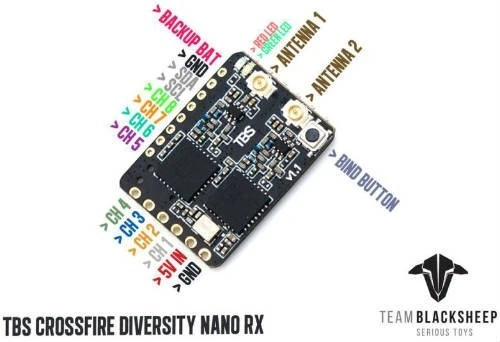

The TBS Crossfire Diversity Nano Receiver is a compact R/C receiver with 8ch outputs (PPM, SBUS, and CRSF capable), with best-in-industry noise-rejection and record-breaking range capability. It is the only receiver to provide a true dual-input stage, chip-based diversity, with the usual filtering and noise rejection from onboard video systems.

If you have ever lost a plane, spent hours looking for it then the TBS Crossfire Diversity Nano Receiver is for you! The diversity nano receiver comes with a built-in LiPo battery that will keep the receiver running for a full day after all onboard electronics are gone. It will be screaming for help by giving you its GPS coordinates, and also blasting out RF beacon signals that will allow you to pinpoint its location even if no GPS was ever on your airplane.

FLARM is a traffic awareness and collision avoidance technology for General Aviation, light aircraft, and UAVs. The TBS Crossfire Diversity Nano RX’s will be able to broadcast on the FLARM network for free, receiving drone and general aviation traffic information on your OSD requires additional licenses. Paired with the CORE PRO or FPVision and TBS GPS, you can get a virtual radar showing other FLARM devices around you (~3km range).

This allows safe navigation in crowded airspace or nailbiting proximity formation flights with your buddies! Fullscale aviation will be alerted if your drone is on a collision course with them, and vice versa.



UPDATE YOUR CROSSFIRE TRANSMITTER TO V2.88 OR ABOVE BEFORE BINDING!



Specifcations:

• Weight: 1.8g (receiver only)

• Size: 24mm x 18mm

• Requires: Firmware V2.87

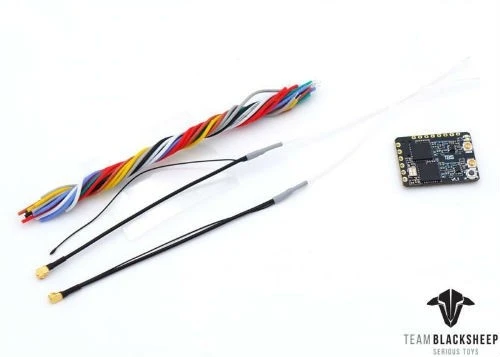

• INCLUDES

• 1x TBS Crossfire Diversity Nano Receiver

• 2x TBS Crossfire Micro Receiver Antenna

• 1x Spare shrink tube

• 14x 30awg silicon connection wires



Downloads:

• TBS Crossfire – RED Declaration of Conformity

• Quickstart Guide / Manual
