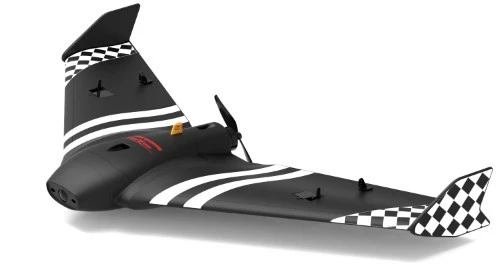

SonicModell Mini AR Wing 600mm Wingspan PNP

The SonicModell Mini AR Flying Wing PNP is a compact 600mm flying wing built from high strength EPP material with built-in carbon fiber tube spar and leading edge strips making the SonicModell Mini AR Flying Wing very rigid for tight turns, agile flight  and resistant to crashes and abuse.

SonicModell based the Mini AR Flying Wing on the original full sized AR Wing, the result was a 600mm pure racing wing with pre-installed motor, ESC with BEC & high quality analog 8g servos. This means that after a small amount of construction (glue the wings and spar to the body and install radio equipment) you are ready to fly the exciting Mini AR Flying Wing.

The Mini AR Wing from SonicModell is easy to transport at 600mm. However, this compact flying wing has plenty of space internally, with a huge equipment bay. A 3-4S 800-1300mAh battery can be fitted, which will give around 10 minutes of flight time, there is also room to install FPV equipment, the nose of the Mini AR Wing can be fitted in two orientations to allow for a slightly downward view or straight ahead. The screen split for FPV use is approximately 70 / 30 ground and sky for the downward and 50 / 50 for the straight ahead configuration.

Features:

• Black EPP material molded wing, pre-built in carbon fibre spar, light and flexible plus crash resistence

• Recommended Max weight 400g

• 600mm wingspan

• 30A ESC with 5A Bec

• Built in carbon fibre tube and spar, rigid and crash resistant.

• Motor: 1806 2400KV Brushless

• Compact size, perfect for casual FPV action.

• Bonus camera mount, compatible with all FPV and AIO cameras in the market.

• Extra plastic cover for protecting the main wing leading edge from damage.

• Carefully designed skids for hand grip launch and landing.

• Stable flying performance, 10-70km/h flying speed.

• Propellor: HQ5045

• Huge equipment bay for more FPV gear and bigger battery.

• Plywood for fuselage with pre-cut FC mount.

• Convenient and clear “CG” mark under the main wing.

• “NACA” Air intake and outlet for FPV gear cooling.

• Two color decals set supplied, red and black.
