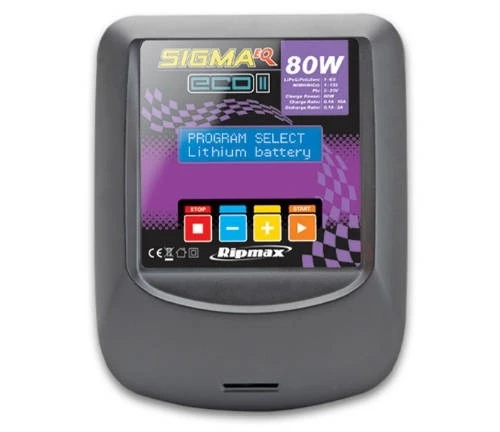

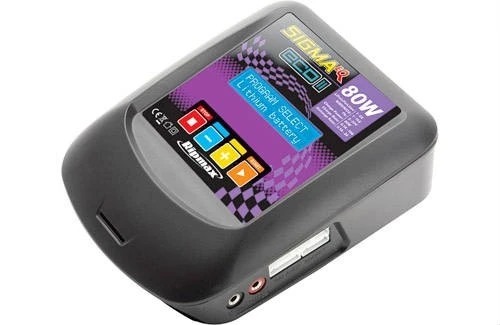

Sigma EQ Eco II AC/DC Charger 80W

The new Sigma EQ Eco II 80W battery charger is a full refresh and upgrade from the original Sigma EQ Eco LiPo battery charger. The exterior case is not the only part which has changed, the ‘new generation’ of the Sigma EQ style, has a whole raft of upgrades added as part of the constant program of offering more in every charger developed.

The Sigma EQ Eco II has the same 80W output of the Sigma EQ Touch II, with the Sigma Eco II now being a 80W capable LiPo charger, it now has the ability to use up to 10A charging within that 80W limit. Particularly useful for high capacity packs used in racing drones where a high C charge rate is now normal.

By increasing the cell balance voltage of the Sigma EQ Eco II 80W to 460mAh/cell, balancing can be faster and hence shorten the balance charge process or independent balancing of packs.

The new range of features are extensive and detailed but include:

• Dual Language (English/German)

• Battery Capacity Checker

• Battery Balancer (Lithium)

• Battery Cell Meter (Lithium)

• Battery Internal Resistance (IR) Checker

• Digital Power Supply Output

• Brushed Motor Power Source for Break In

• ESC and Servo Checkers

• USB Output (for phone charging or to power the Hex charger)

• Thrust Calculator

• Foam Cutter Power Source

Specification

PB:

2 – 20V

Charge Current:

0.1 – 10A

Discharge Current:

0.1 – 2.0A

Input Voltage:

11 – 18.0V DC (100 – 240V AC (50 – 60Hz)

Weight:

590g

Dimensions:

180 x 145 x 57mm

LiPo:

1 – 6 Series

NiCad/Ni-MH:

1 – 16 Cells

Power Output:

80W
