Runcam Split Mini

Runcam Split Mini

The Runcam Split Mini FPV Camera can record HD 1080p @ 60 FPS to it’s onboard recorder using Micro SD memory cards (Upto 64GB supported). It’s smaller size and mounting board (20x20mm) make it more suitable for smaller flying platforms with restricted space, meaning you can fly this awesome camera in virtually anything!

Specifications

• FOV Angle of Field: FPV FOV 130° / Recording FOV 165°

• Video Resolution: 1080@60fps / 1080@30fps / 720@60fps

• Video Files: MOV

• Image Resolution: 2 MP

• TV Output: NTSC (720*480) / PAL (720*576) Switchable

• Interface: Micro USB / UART

• Max Micro SD Card Supported: 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II)

• Hole Distance of Installation: 20*20mm

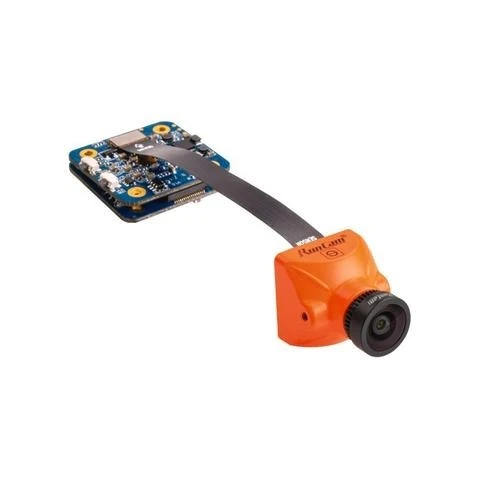

• Dimensions: PCB 27*29mm / Lens Module 19*19mm

• Power Input: DC 5-17V/DC 5V(USB)

• Working Current: 650mA @5V / 270mA @12V

• Weight: 15g

Features

• 1080P/60fps HD recording & WDR FPV camera

• Power-off protection for video files

• Ultra light weight (15g)

• Low latency TV-OUT

• Wide voltage (5-17V)

• Anti-drop SD card
