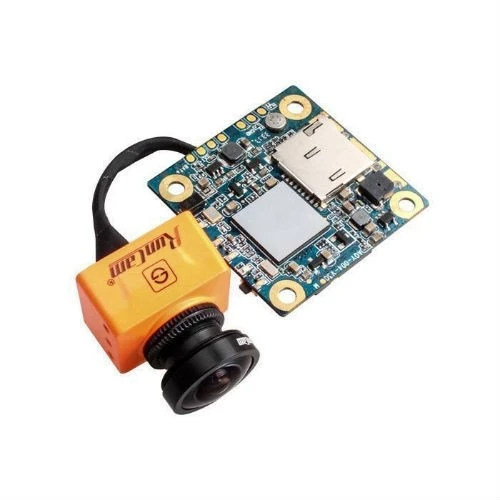

Runcam Split 2S With WiFi

The Split 2S from Runcam is their latest FPV camera to replace the previous Runcam Split 2. The Runcam Split 2S gives you Go Pro quality in much smaller form. Recording in 1080 @ 60FPS with an FPV FOV of 130° and recording FOV of 165°, makes it a great product for small FPV quads and planes. Being able to record to the on-board Micro SD card (upto 64GB) means you can watch back your flights in HD quality.

The camera can also be controlled by 3 methods, first being the from the control board itself, second being after linking the camera to your FC’s UART port, and thirdly being from the optional WiFi module (supplied) using the ‘Runcam App’ on Android and Apple devices. The camera control functions enable you to turn WiFi on/off, start/stop record and switch modes between video, photo and OSD settings.

Please click here for the product manual.

Whats New

• Camera is 19*19mm like Micro Swift

• New type ribbon cable with steel retaining plate on the PCB

• Package includes anti-vibration mounts

• Camera adapter to take up to 28x28mm

• Improvements in image quality

• Power input from 5-15V DC

Specification

• FOV Angle of Field FPV FOV 130° / Recording FOV 165°

• Video Resolution 1080@60fps / 1080@30fps / 720@60fps

• Video Files MOV

• Image Resolution 2 Megapixels

• TV Output NTSC / PAL Switchable

• Real-Time Audio Output Yes

• Interface Micro USB / UART

• Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II)

• WiFi Module Support (Removable)

• Dimensions: PCB 38*38mm/Lens Module 19*19mm

• Power Input DC 5 – 15V

• Working Current 650 mAh @5V/ 270mAh @ 12V

• Net Weight: 19g
