Runcam Micro Swift III

Runcam Micro Swift III

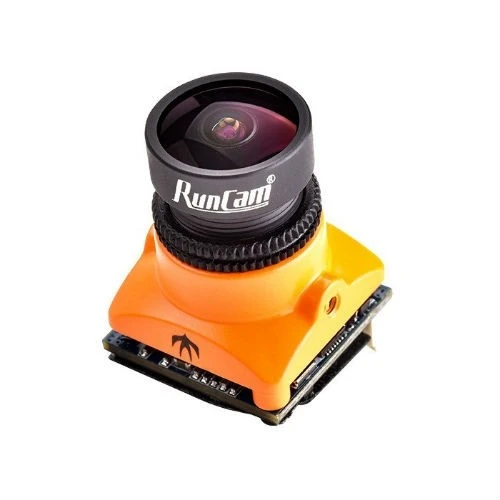

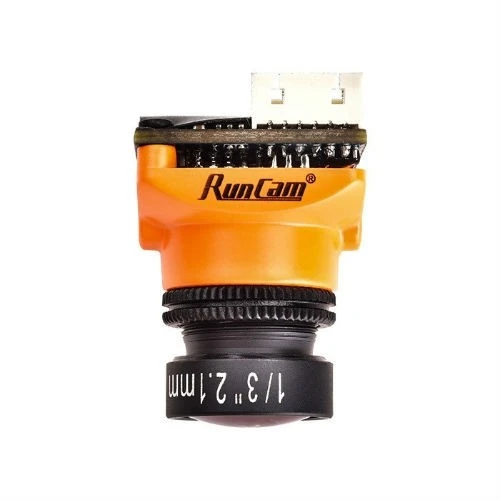

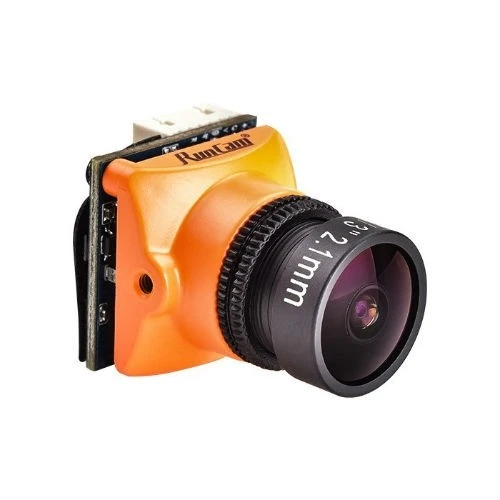

The Runcam Micro Swift III uses a standard size M12 lens for improved image quality, combined with the latest UART camera control technology.

 The Runcam Micro Swift III is a 600TVL 4:3 aspect ratio FPV camera with a 1/3″ Sony Super HAD II CCD lens and a wide input voltage range (DC5-36V) and built-in OSD.

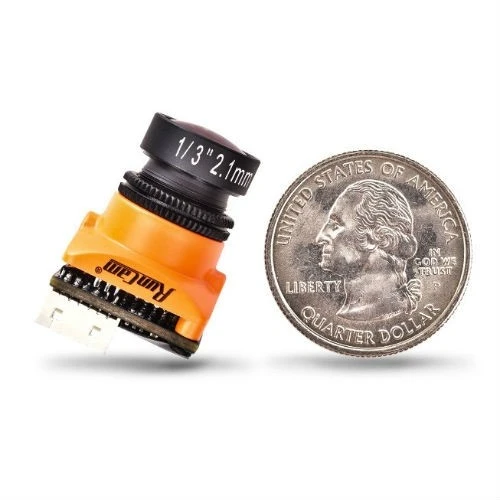

 At a reduced size and weight to the Runcam Micro Swift, the Micro Swift III only weighs 9-11g depending on whether you use the 2.1mm or 2.3mm lens. With size dimensions of 19x19x25mm, making it perfect for small light weight FPV setups.

 This version is supplied with a 2.1mm M12 lens offering a 165 degree FOV at a 4:3 resoltuion.

Specification

• Model: Micro Swift 3

• Image Sensor: 1/3″ SONY Super HAD II CCD

• Horizontal Resolution: 600TVL

• Lens: 2.1mm ​(M12)​ FOV165° / 2.3mm(M12) FOV 150°

• Signal System: PAL / NTSC

• Intergrated OSD:  Yes

• Once Key Scene: Personal / Lightrax / Outdoor / Indoor / Cloudy / Twilight

• S/N Ratio: >60dB (AGC OFF)

• Electronic Shutter Speed: PAL: 1/50~100,000; NTSC: 1/60~100,000

• Auto Gain Control (AGC): Yes

• Min.Illumination: [email protected]

• WDR: D-WDR

• DNR: 2DNR

• Day/Night: Color/Auto/B&W

• Remote Control: Flight Controllers : BetaFlight 3.3 / ButterFlight 3.4 / Cleanflight 2.2

• Power: DC 5-36V

• Current:60mA@12V / 120mA@5V

• Net Weight: 9g(2.3mm) / 11g(2.1mm)

• Dimensions: L19mm*W19mm*H25mm

In The Box

• Runcam Micro Swift III Camera (x1)

• Aluminium Mounting Bracket (x1)

• Set Of Screws (x1)

• 6 Pin FPV Silicone Cable (x1)

• Manual (x1)

User Manual
