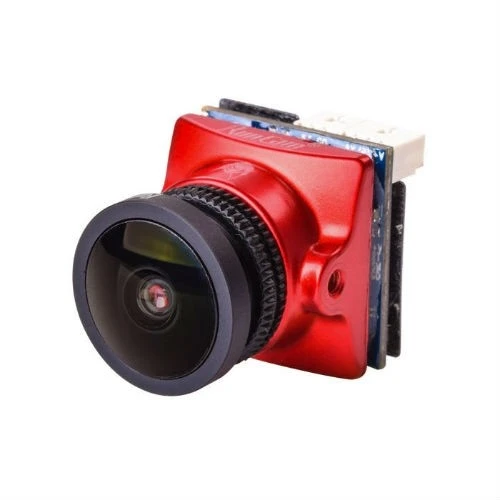

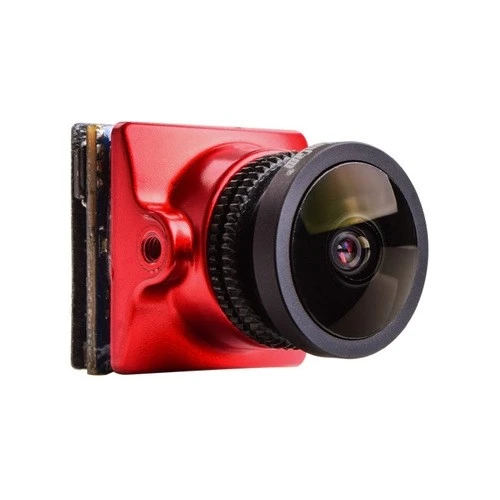

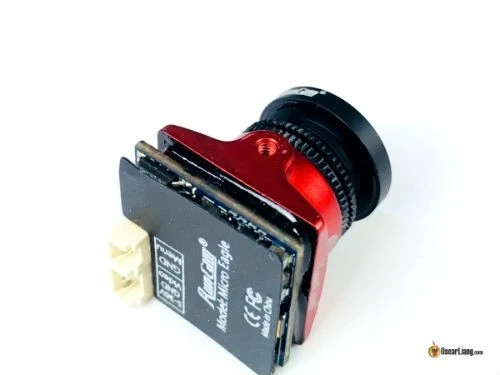

Runcam Micro Eagle 800TVL FPV Camera

Runcam Micro Eagle 800TVL FPV Camera

The Runcam Micro Eagle is a symetrically sized (19x19mm) FPV camera, featuring a 1/1.8″ CMOS Sensor and 800TVL, giving a very clear and crisp image. Due to it’s micro size and light weight ABS cas this camera has an AUW of 8.5g, making it ideal for very small fixed wing and multirotor applications where space is limited.

With a built-in OSD and the flexability to run DC5-36V input, the camera can display live battery information making it compatible with a wide range of batteries and simplest flight control boards which do not incorporate and OSD of their own. This camera has a very low current consumption of only 200mA @ 5V, and 90mA @ 12V again making it suitable for small aircraft running low capacity battery packs.

With improved sensors and lenses the Runcam Micro Eagle performs better in low light conditions to previous micro sized camera’s.

Specification

• Model: Runcam Micro Eagle

• Sensor: 1/1.8″ CMOS Sensor

• Horizontal Resolution: 800TVL

• FOV: 170 Degree @ 16:9 / 140 Degree @ 4:3

• Screen Formation: 16:9 / 4:3 Switchable in OSD menu

• Signal System: NTSC / PAL Switchable in OSD menu

• Mirror/Flip: Yes

• S/N Ratio: >50dB

• Electronic Shutter Speed: Auto

• Main Gain: 1-9 Level

• Min.Illumination: [email protected]

• WDR: 1-6 Level Available

• Day/Night: Auto/External/Color/B&W

• Power: DC 5-36V

• Current: 200mA @ 5V / 90mA @ 12V

• Housing Material: ABS

• Net Weight: 8.5g

• Dimensions: L19mm*W19mm*H22mm

Download the manual here.
