Power Distribution Board With OSD, LC Filter And 5v And 12v BEC’s

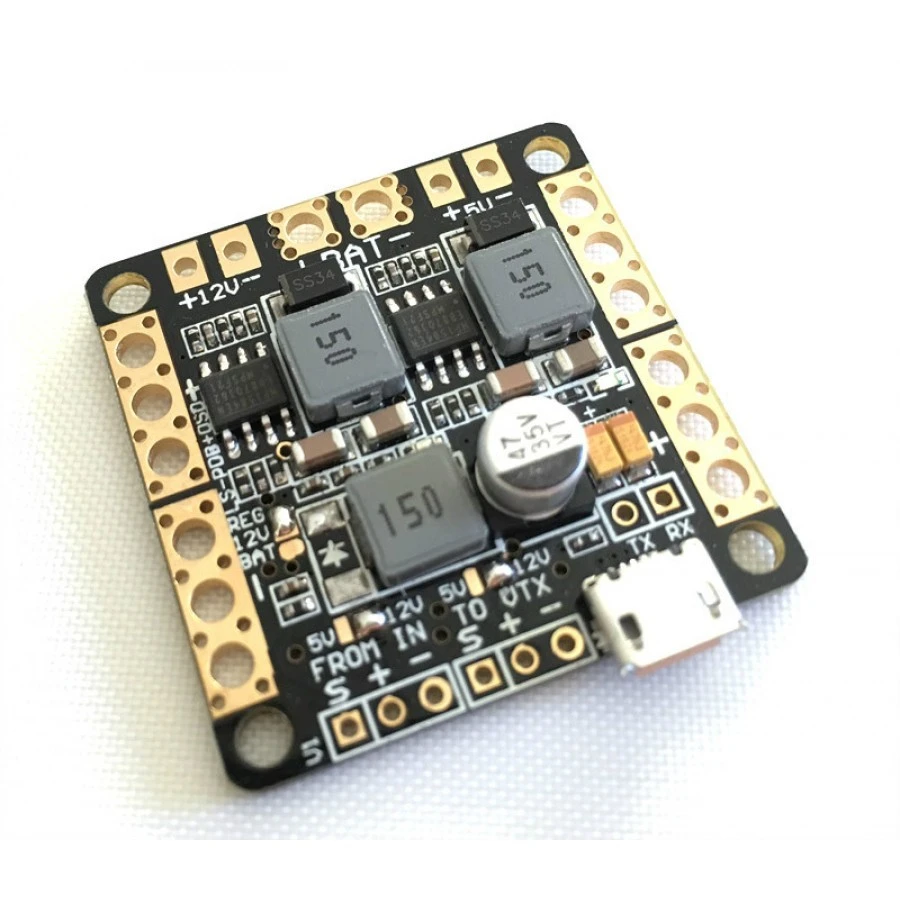

The power distribution board is designed to fit under your flight controller board (32 x 32mm hole spacing) and is the same size for a neat and tidy installation. Unlike other power distribution boards this has two battery eliminator circuits (BEC) one which will provide a clean 5v supply and another which will either step up or step down your power to a clean constant 12v. As well as this the board will route your camera and osd cables to reduce the mess of wires onboard your craft. Overall this board will reduce the hassle of various step down circuits and help to make your craft look clean and as though it was built by professionals. As well as being a power distribution board this is also an OSD for your Fpv signal so will display the battery voltage and flight time (if not connected to flight controller) or when connected to the flight controller will also display other information such as RSSI (if set-up). The OSD is based off of the miniM osd so is compatible with all of the firmware.

Code For GUI Download / Operation Download



Specification

• 2oz copper PCB

• Input Voltage: 2-6S

• BEC Output: 12v and 5v

• BEC max. current: 3A

• Size: 36mm x 36mm

• Integrated LC filter

• 70A constant 110A burst
