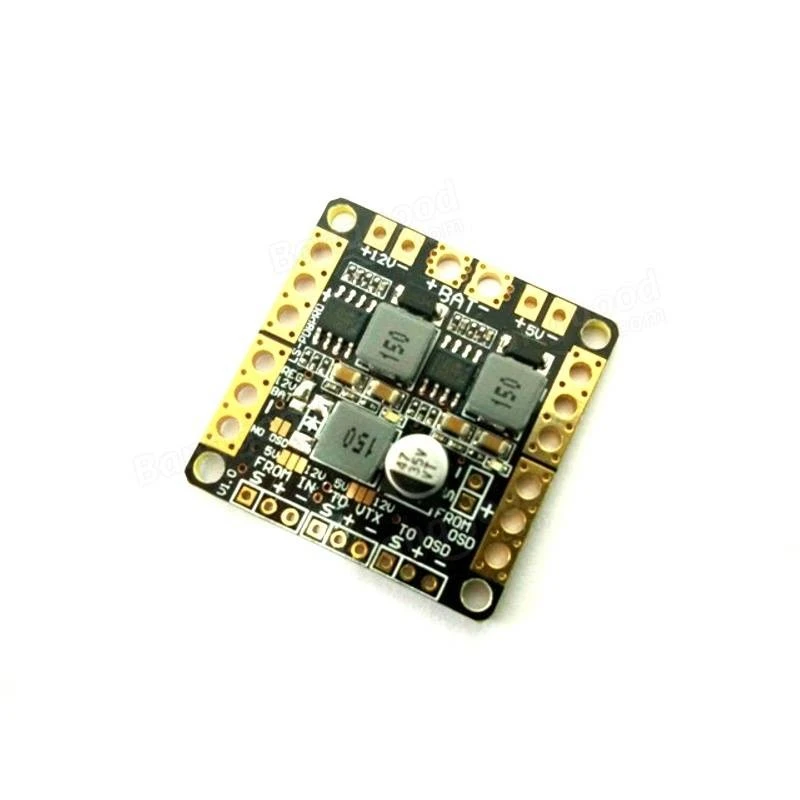

Power Distribution Board With 5v And 12v Regulators

The power distribution board is designed to fit under your flight controller and is the same size. Unlike other power distribution boards this has two battery eliminator circuits (BEC) one which will provide a clean 5v supply and another which will either step up or step down your power to a clean constant 12v. As well as this the board will route your camera and osd cables to reduce the mess of wires onboard your craft. Overall this board will reduce the hassle of various step down circuits and help to make your craft look clean and as though it was built by proffesionals.

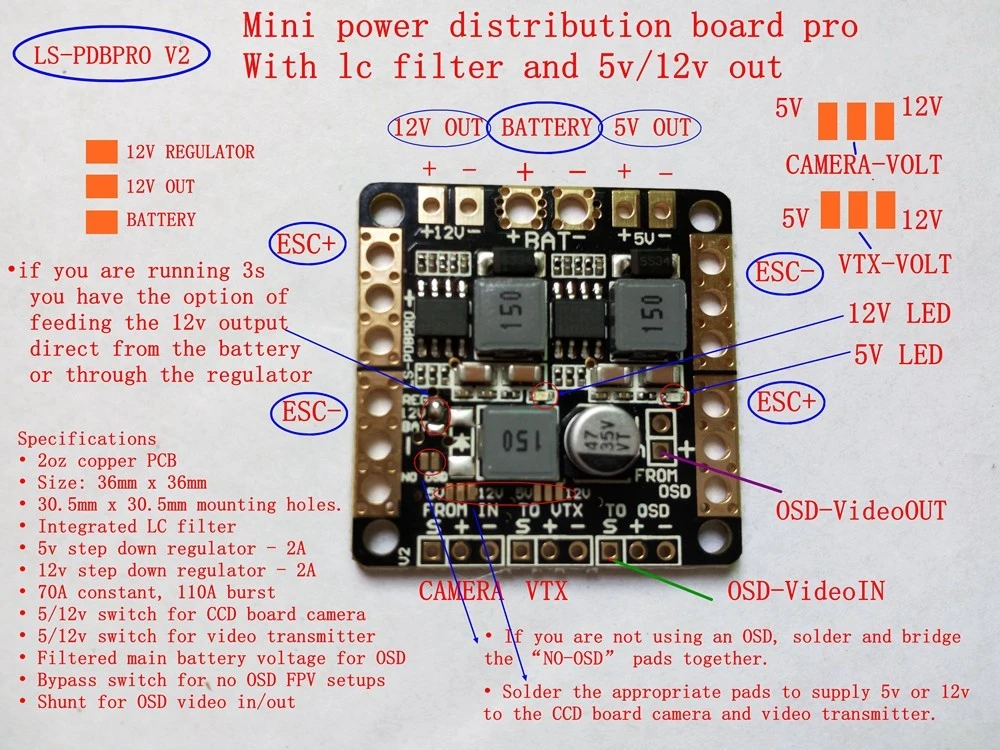

Specifications

• 2oz copper PCB

• Input Voltage: 2-6S

• BEC Output: 12v and 5v

• BEC max. current: 3A

• Size: 36mm x 36mm

• Integrated LC filter

• 70A constant 110A burst
