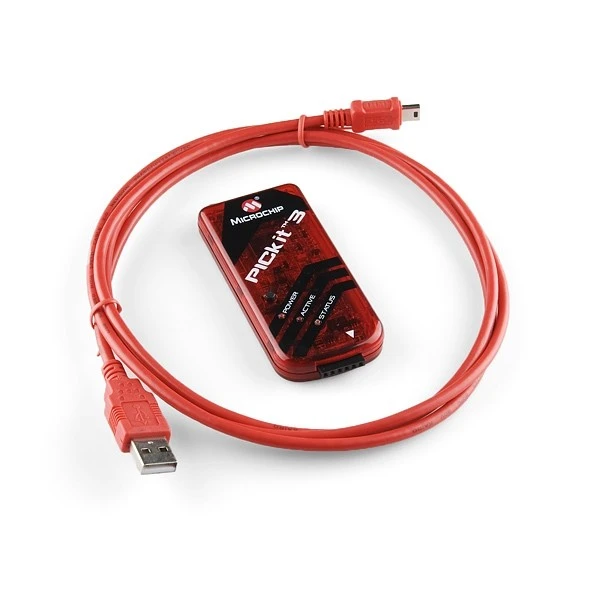

MPLAB PICkit 3

This is the new PICkit 3 from Microchip for use with the UAV V3 and the UDB4 autopilots. If you want an official programmer from Microchip, this is it! The PICkit 3 allows debugging and programming of PIC and dsPIC microcontrollers using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to a PC using a full speed USB interface and can be connected to the target via an Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2/ 3 and MPLAB REAL ICE). The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming. miniUSB cable included.

Features:

• USB (Full speed 12 Mbits/s interface to host PC)

• Real-time execution

• MPLAB IDE compatible (free copy included)

• Built-in over-voltage/short circuit monitor

• Firmware upgradeable from PC/web download

• Fully enclosed

• Supports low voltage to 2.0 volts (2.0v to 6.0v range)

• Diagnostic LEDs (power, busy, error)

• Read/write program and data memory of microcontroller

• Erase of program memory space with verification

• Freeze-peripherals at breakpoint

Documents:

• User’s Manual

• MPLab IDE

• Product Page

sku: PGM-09973
