Micro MiniM OSD Naze32 SP Racing F3

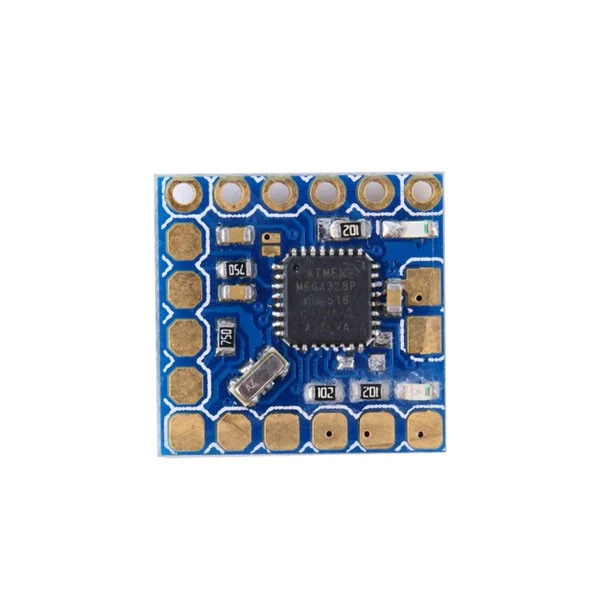

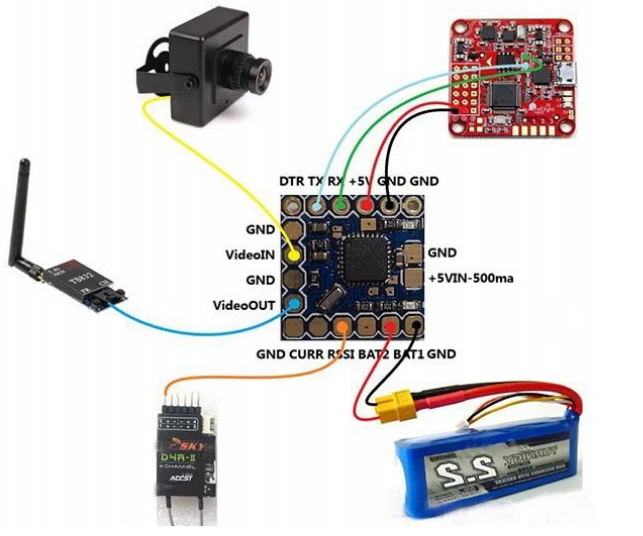

The Micro MiniM OSD for the Naze32 board is based off of the original MiniM OSD and is basically the same thing just in a smaller package (1/3 of the size). It has the same features as its older brother but without the DC-DC power converter which means it must be provided with a 5v power source. The new osd has been developed to allow for more firmware options this is now compatible with the clean flight flight controllers, this makes it ideal for mounting on your mini race quad or any other system that uses either a Mavlink or Multiwii serial connection. The micro miniM OSD will display; the voltage of 2 battery packs up to 4S, a current sensor and either a digital or analogue pwm rssi signal.

This can be flashed with a variety of different software but as stock come loaded with the Kv_Mod firmware. To Program this OSD and to flash the firmware you will need an FTDI to USB converter. Note: Make sure to plug the cable in correctly as this is not keyed so will go in either way.



Features

• All the same features as the original, around 1/3 of the size.

• NO DC/DC converter. Power board via 5V DC.

• FTDI cable compatible pinout

• Two LED indicators

• ATmega328P with Arduino bootloader

• MAX7456 monochrome on-screen display

• 15 x 15mm size

• Modifications for direct connection of two batteries (up to 4S)

• Pad for an Analog or Digital PWM RSSI signal

• Pad for the connection of a Current Sensor

• ATmega328P with Arduino bootloader



In The Box

• 1 x Micro MiniMOSD

• 2 x 6 pin straight headers

• 1 x 6 pin 90-degree header

• 1 x 4 pin straight header

• 1 x 4 pin 90-degree header

• 1 x 2 pin 90-degree header

• 1 x 2 pin straight header
