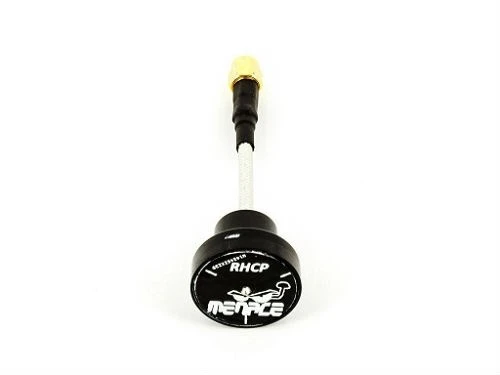

MenaceRC Raptor 5.8ghz Antenna RHCP

MenaceRC Raptor 5.8ghz Antenna RHCP

The Raptor is a compact aero design Omni antenna with excellent directional pattern. It’s unique PCB pagoda style construction give a gain of 1.09db and a radiation efficiency of 92% for clearer video with up to 20% greater signal received.

The antenna features a metal crimp collar and robust injection moulded case for crash protection, with a weight of only 9.4 grams. Also fitted with an SMA plug for instant compatibility with most EU video transmitters.

Specification

• Centre frequency 5.8 GHz

• Frequency Range: 5550 – 6050 MHz

• Matching S11 < -20dB, VSWR <1.22

• Gain: 1.09dB with efficiency: 92%

• Axial Ratio <1.3

• Beam width: 360 degrees

• Right Hand Circular Polarised ( LHCP or RHCP)

• SMA Connector

• Height: 85mm

• Weight: 9.4grams
