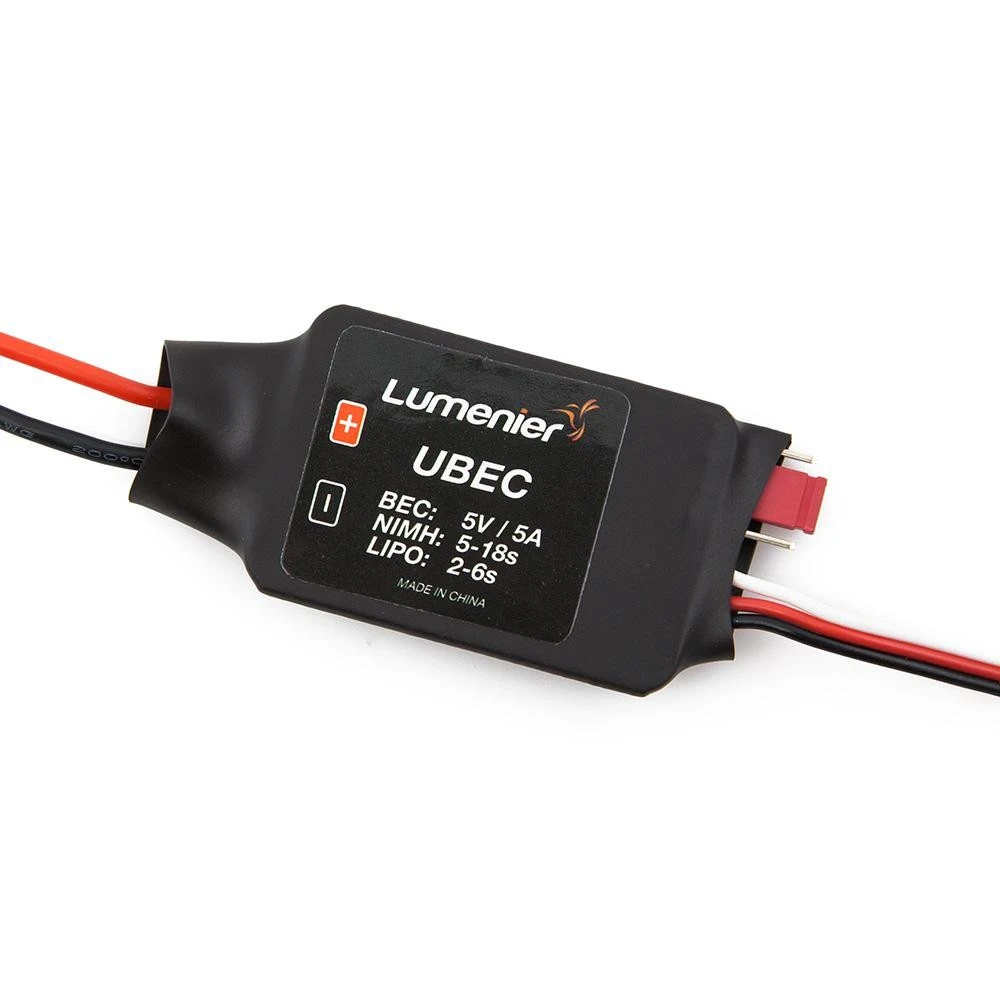

Lumenier UBEC 5V, 5.5V, 6V 5 Amp 2 – 6s Lipo Input

The Lumenier UBEC is used to step down a higher voltage to an adjustable 5V, 5.5V or 6V at 5 Amps from a 2-6s LiPo power source. The Lumenier UBEC is small, lightweight and features a high efficiency switch mode design. This provides a better level of heat dissipation when compared to a UBEC with linear voltage regulators.

UBEC Features:

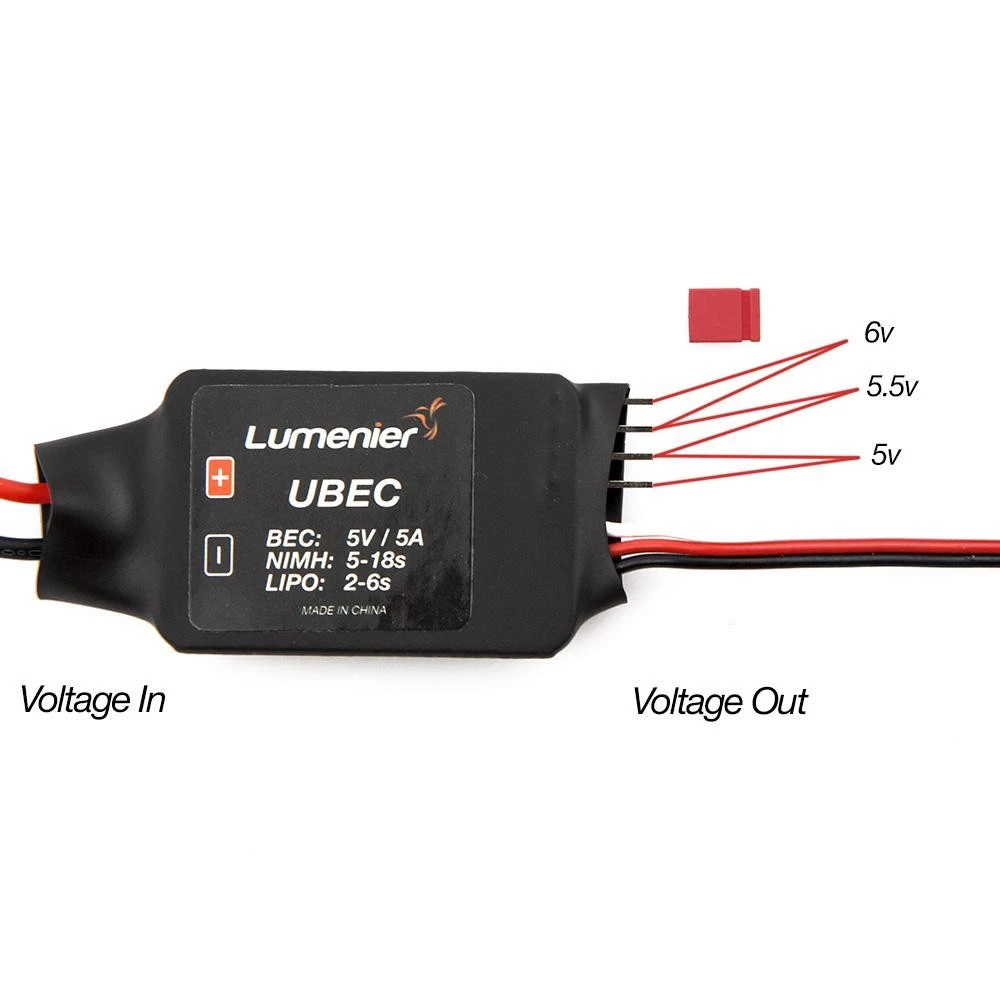

• Output Voltage 5V, 5.5V, 6V (selectable via jumper)

• Output Amp: 5A

• Input voltage range from 7.2V – 26V (2-6s LiPo)

• Dimension: 46 x 25 x 7mm

• Weight: 12g

• Wire Length: 15cm wire to male servo connector, 10cm power wire
