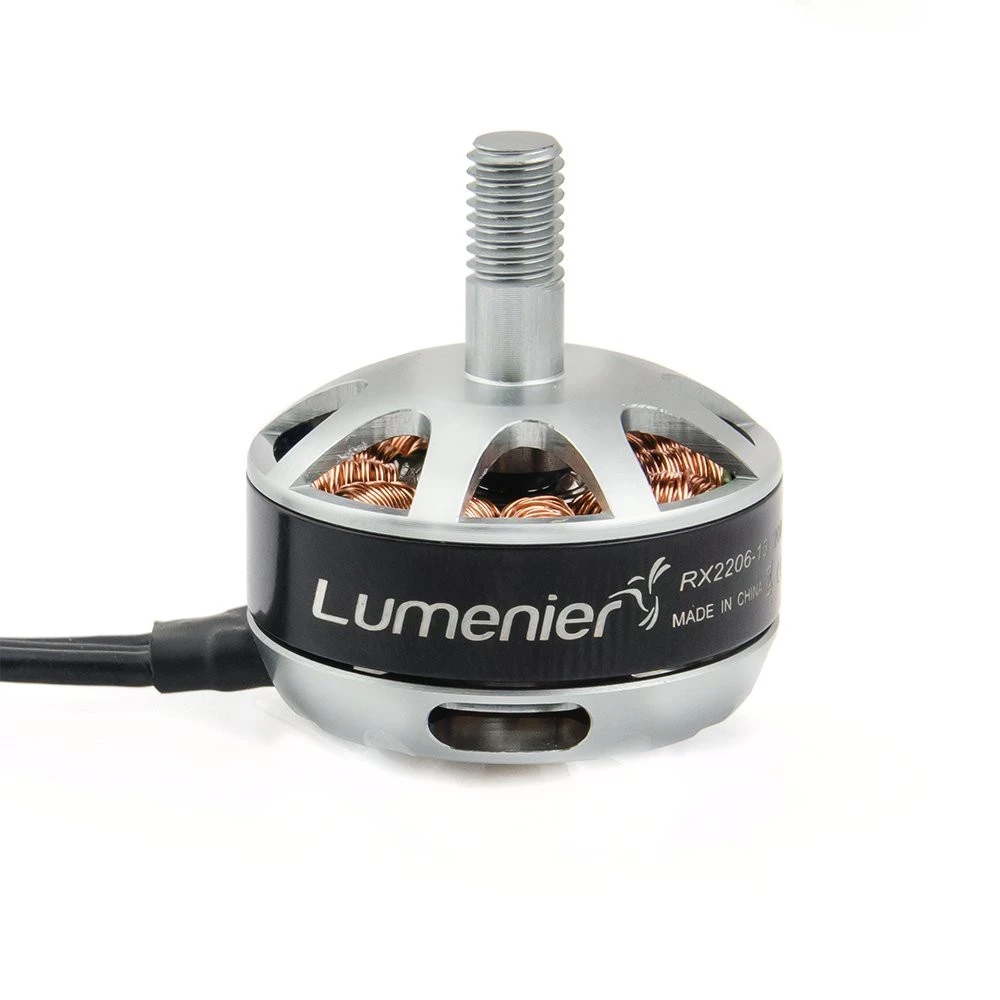

Lumenier RX2206-11 2350Kv Brushless Motor 2-4s

The Lumenier RX2206-11 2350Kv brushless motor has been engineered from the ground up, it’s the perfect blend of elegant design and high end performance for FPV Drone Racing. These Lumenier RX2206-11 2350Kv brushless motors have been designed to give you top of the line performance and value for your Racing Drone. Using high quality bearings and CNC precision machined parts, each Lumenier motor provides silky smooth and reliable power.

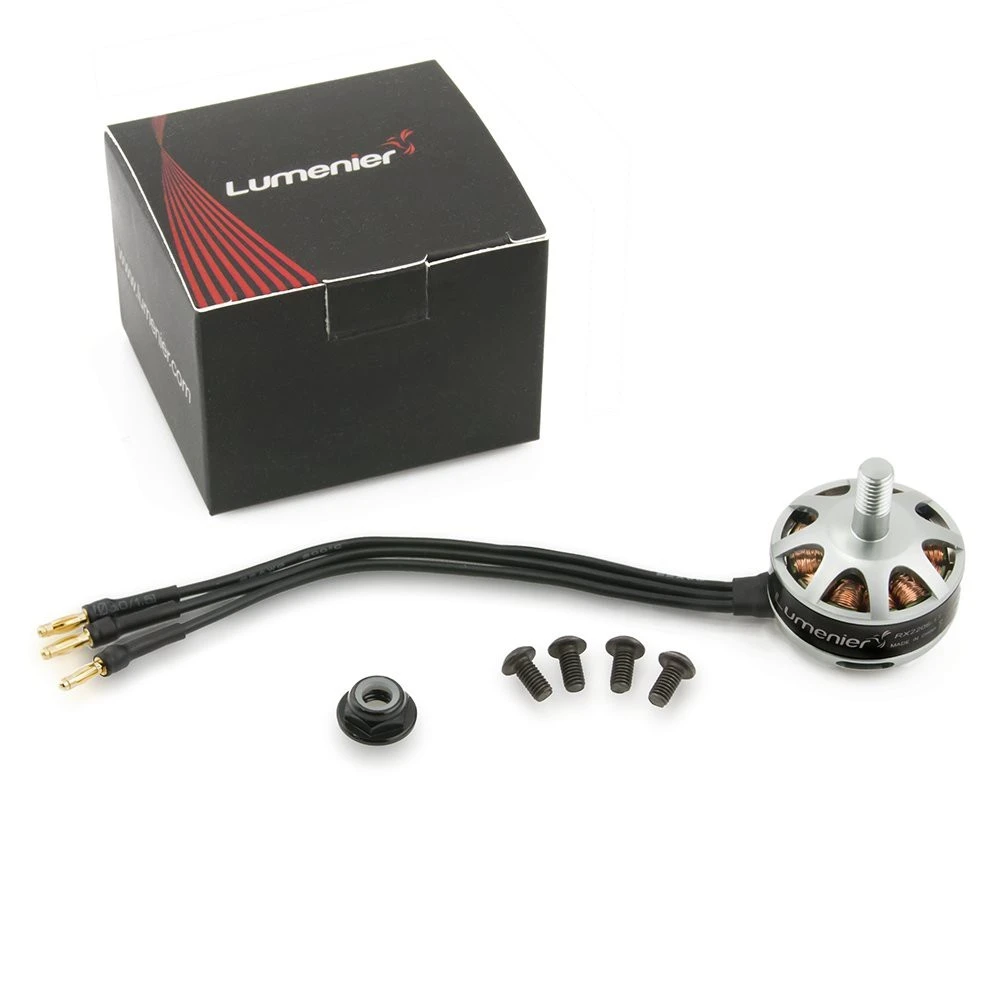

The Lumenier RX2206-11 2350Kv motors have a strong 3mm internal shaft which are machine pressed into the upper bell of the motor. No longer is there a need for screws that will loosen over time. The motor features an integrated 5mm threaded prop adapter allowing you to directly mount the propellers to the motors without the need of a separate prop adapter, saving additional weight. An ultra-lightweight, black anodized, low profile, flanged aluminum lock nut is also included with each motor ensuring your propellers do not come loose during flight. Each motor comes with 4x M3x5 screws for mounting on most airframes. The motor wire length is 100mm and includes pre-soldered male 2mm bullet connectors for easy installation. Alternatively, you can also simply cut the motor wires to the desired length and directly solder them to your ESC.

Specification

• KV: 2350

• Configuration: 12N14P Stator

• Diameter: 22mm

• Stator Length: 6mm

• Shaft Diameter: 3mm

• Windings: 11 Turn DLRK

• Wire Lenght: 100 mm

• Motor Dimension (Diameter x Length): 27 x 17mm

• Weight: 26.5g (29g w/ bullets)

• ldle current @12.6 Volts (A): 0.81 A

• No.of Cells(Lipo): 2-4S

• Max Continuous current 60 Sec: 16A

• Max Continuous Power 260 W

• Max. efficiency current: (2.2-6A)>80%

• Max Burst Current: 32 Amps  for less than 10 seconds

• Internal resistance: 260mΩ
