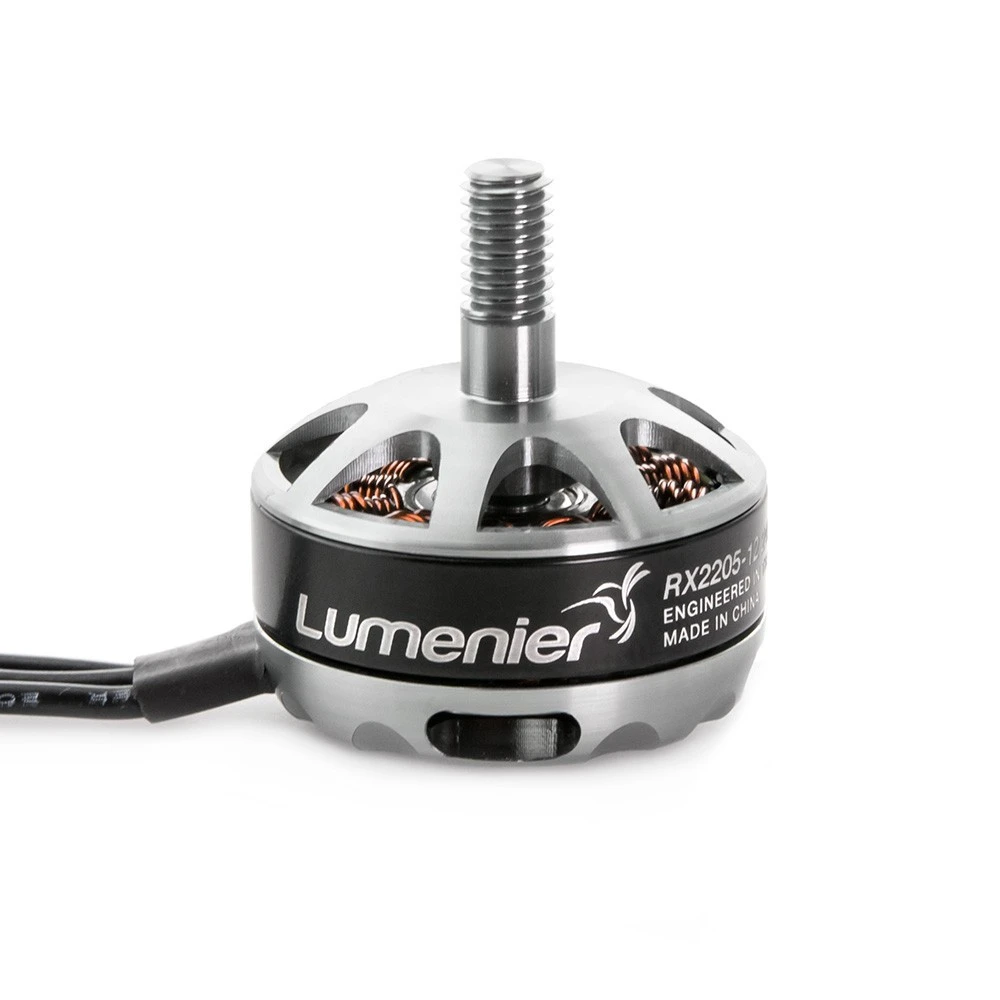

Lumenier RX2205-12 2400Kv Brushless Motor 2-4s

The new Lumenier RX2205-12 2400Kv motor fills the gap in Lumenier’s multi-rotor motor lineup offering the perfect balance between high Kv whilst maintaining enough torque to quickly spool-up and spool-down the motor.

With a 2400kv rating and 2205 stator size the new RX2205-12 fits in perfectly between the Lumenier RX2204 and RX2206 motors, which are some of the most popular and well known motors on the market. With the new RX2205 motors, Lumenier offers very granular motor choices from 2204 to 2206 across a wide range of kv ratings providing the ideal motor for every build. The new 2205 motors come in at 24g including wires which continues Lumenier’s tradition of creating some of the lightest racing motors on the market.

The RX2205 uses stainless steel bearings and silver anodized CNC-ed aluminum components to provide a motor which not only performs excellently, but is also very durable and hard wearing. Carefully assembled and dynamically balanced in Lumenier’s climate controlled facility, the new Lumenier 2205 motors take advantage of new glue technology, and application robots for even glue distribution. Advanced curing procedures ensure the magnets won’t slip even when put under the strain that pilots put on them during FPV racing and freestyle competitions.



Specifications:

• Kv: 2400

• Configuration: 12N14P

• Windings: 12 turn DLRK

• Termination: D (Delta)

• Stator Diameter: 22mm

• Shaft Diameter: 3mm

• Motor Dimension: 27x17mm

• Weight: 24g (with wires)

• Idle Current @12.6v (Io): 0.81A

• Cells (LiPo): 2-4S

• Max Continuous Current (A) 60s: 20A

• Max Burst Current <10s: 32A

• Max Continuous Power (W) 60s: 290W

• Max Efficiency Current: (2.2-6A) 80%

• Internal Resistance (Rm): 260mΩ

• Motor Wire Length: 100mm

• Motor Connection: Bare Wire
