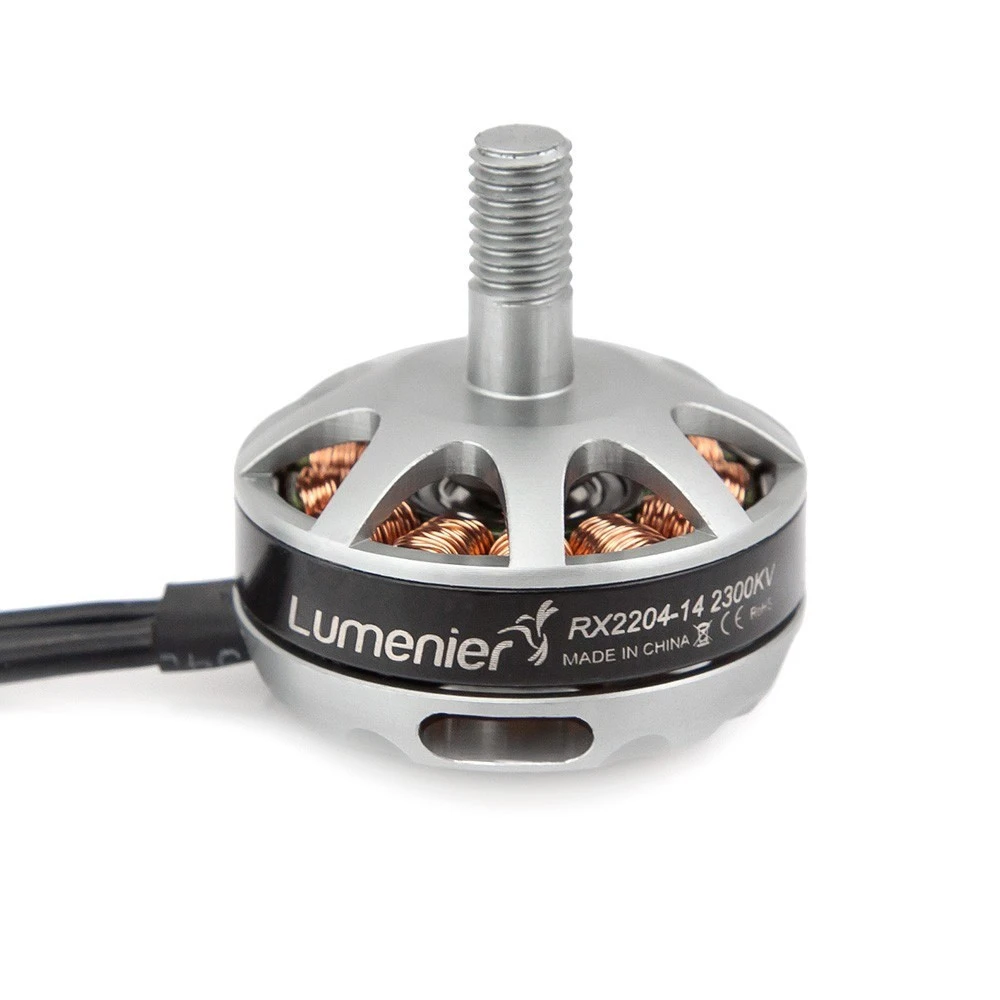

Lumenier RX2204-14 2300Kv Motor

The Lumenier RX2204-14 2300Kv brushless multirotor motors have been designed to give you top of the line performance and value for your RC models. Engineered from the ground up the Lumenier RX2204-14 2300Kv motor is the perfect blend of elegant design and high end performance. By using high quality bearings and CNC precision machined parts, each Lumenier motor provides silky smooth, reliable power.

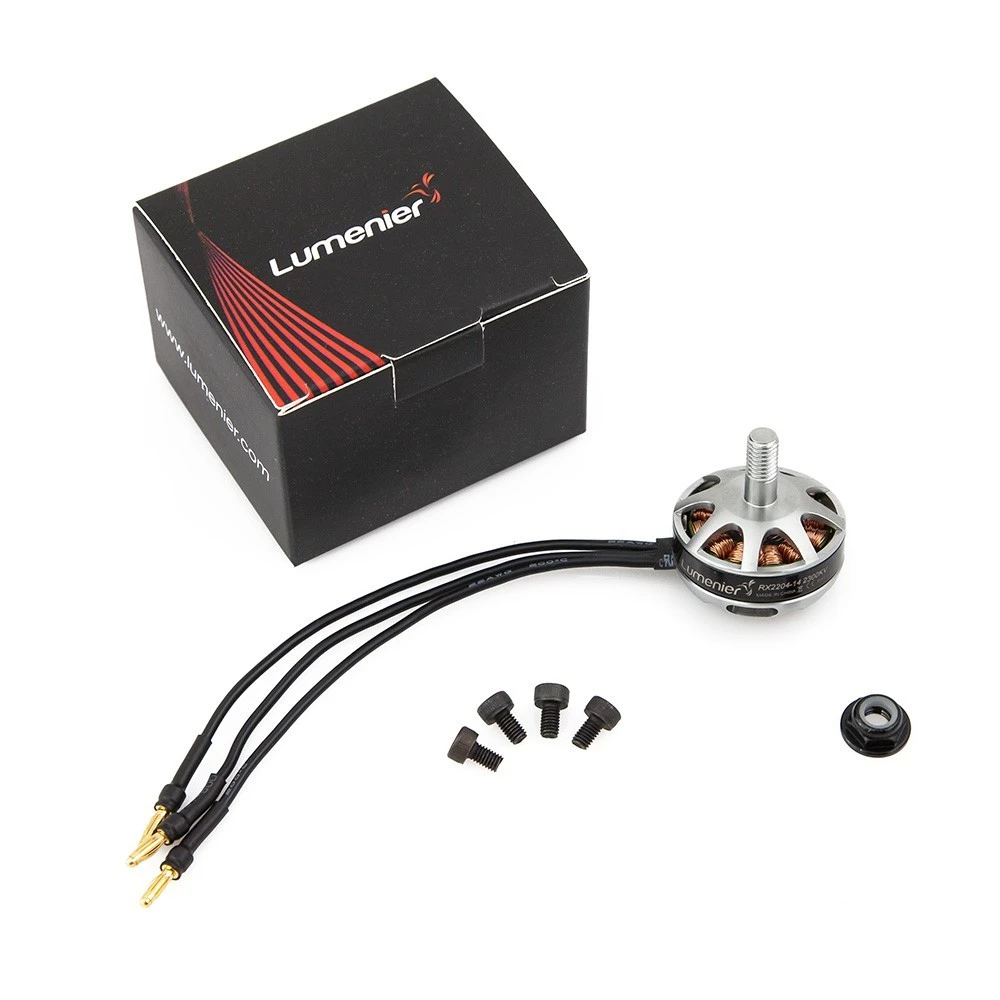

The Lumenier RX2204-14 2300Kv motors have a strong 3mm internal shaft which has been machine pressed into the upper bell of the motor. No longer is there a need for set screws that loosen over time. The motor features an integrated 5mm threaded prop adapter allowing you to directly mount the propeller to the motor without the need of a separate prop adapter, saving you weight. An ultra-lightweight, black anodized, low profile, flanged aluminum lock nut is also included with each motor ensuring your propellers do not come loose during flight. Each motor comes with 4x M3x5 socket cap screws for mounting on most airframes. The motor wire length is 100mm and includes pre-soldered male 2mm bullet connectors for easy installation. Alternatively, you can also simply cut the motor wires to the desired length and directly solder them to your ESC.

Specification

• KV: 2300

• Configuration: 12N14P Stator

• Diameter: 22mm

• Stator Length: 6mm

• Shaft Diameter: 3mm

• Windings: 14 Turn DLRK

• Wire Lenght: 100 mm

• Motor Dimension (Diameter x Length): 27 x 15mm

• Weight: 23.3g

• ldle current @12.6 Volts (A): 0.58A

• No.of Cells(Lipo): 2-4S

• Max Continuous current 60 Sec: 15A

• Max Continuous Power 190W

• Max. efficiency current: (2.2-6A)>80%

• Max Burst Current: 32 Amps  for less than 10 seconds

• Internal resistance: 260mΩ
