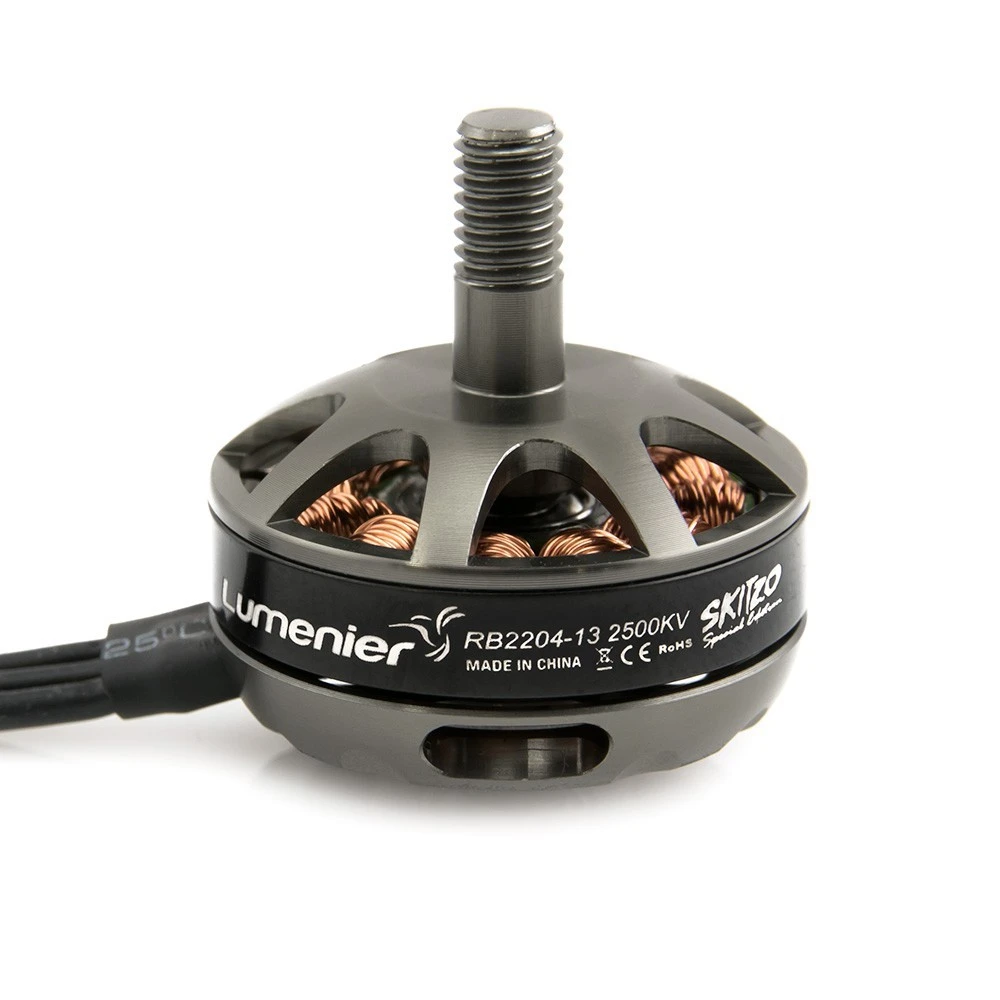

Lumenier RB2204-13 2500Kv SKITZO Special Edition Motor

The Lumenier RB2204-13 2500Kv motors have been producted in collaboration with the FPV pilot Skitzo. The Lumenier RB2204-13 2500Kv motor has been engineered from the ground up with Skitzo who is one of the most influential and talented FPV freestyle pilots today. It will come as no surprise that the RB2204-13 2500Kv is the perfect FPV freestyle motor.

Lumenier has devloped a motor which is a perfect blend of elegant design and high end performance. The RB2204-13 2500Kv motor uses high quality steel bearings and CNC precision machined parts, each of the Lumenier motors provides a silky smooth action with reliable power. The size of the motor has been carefully selected to be optimized for 5″ props on a 4s battery. This motor and propeller combination gives an excellent burst of power which quickly elevate your aircraft above and around objects.

The Lumenier RB2204-13 2500Kv motors have a strong 3mm internal shaft which is machine pressed into the motors upper bell. There is no longer a need to use a set of screws that will loosen over time. The integrated 5mm threaded prop adapter on the RB2204-13 motor means that you directly mount the propeller to the motor without the need of a separate prop adapter, this allows for a saving in weight. The propellers are held in place with a supplied ultra-lightweight, black anodized, low profile flanged aluminum lock nut. These lock nuts ensuring your propellers do not come loose during flight. Each motor comes with 4x M3 x 5 screws for mounting on most airframes. The motor wire length is 100mm and includes pre-soldered male 2mm bullet connectors for easy installation. You can also reduce the motor wires to the desired length and directly solder them to your ESC. With the motor wires cut to a shorter length (bullets removed) the motor only weighs an incredible 21.5g.

Includes

• 1 x Lumenier RB2204-13 2500Kv SKITZO Special Edition Motor

• 1 x Lumenier M5 Black Aluminum Low Profile Lock Nut (CW)

• 4 x M3 x 5 Socket cap screws

Spec:

• Kv 2500

• Configuration 12N14P

• Windings13 turn DLRK

• TerminationD (Delta)

• Stator Diameter 22mm

• Shaft Diameter 3mm

• Motor Dimension 27x15mm

• Weight 21.5g (23g w/ bullets)

• Idle Current @12.6v (Io), @16.6v (Io)0.58A, 0.63A

• Cells (LiPo)2-4S

• Max Continuous Current (A) 60s 15A

• Max Burst Current <10s 30A

• Max Continuous Power (W) 60s190W

• Max Efficiency Current (2.2-6A) 80%

• Internal Resistance (Rm) 260mΩ

• Motor Wire Length100mm

• Motor Connection Male 2mm bullet
