Lumenier QAV250 Carbon Fiber Prop Guards

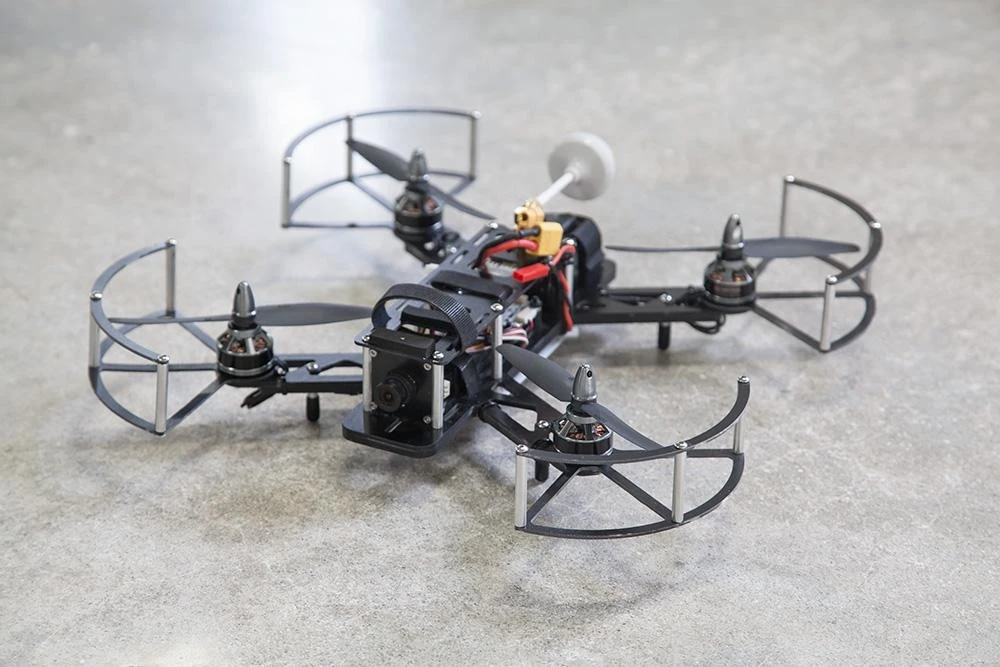

The Lumenier QAV250 carbon fiber propeller guards will help you avoid crashes caused by light prop strikes when flying close to objects. The QAV250 carbon fiber prop guards will make first contact instead of the propellers, this allows the propeller to continue delivering lift while brushing a wall or other obstacles you are close to, helping to avoid a costly crash. This prop guard set will work on V1 of the QAV250 if using motors with M3 motor mounting screws. The QAV250 Mini FPV Quadcopter Carbon Fiber Edition can use these propeller guards, if using the motors from RCX you will need to use M2 mounting screws.

Please note that the propeller guards are mounted underneath the motors, you will require longer motor mounting screws which are not supplied with the guards, however these are available separately, see below for links to screws.

The QAV250 carbon fiber prop guards will help avoid crashes, however they are not a guarantee that you will not stall a propeller and crash. If flying in to an object at speed the force of the impact will still result in a crash. Another important point to consider when using the guards. if you fly into small branches or fly against a pole that avoids the prop guards, etc. a stalled prop is still going to happen.

Specifications:

• Each assembled prop guard weighs 13.25g. Total for all 4 guards together is 53g.

• Will fit on G10 QAV250, Carbon Fiber QAV250 and possibly other mini quad frames that use 5″ props.

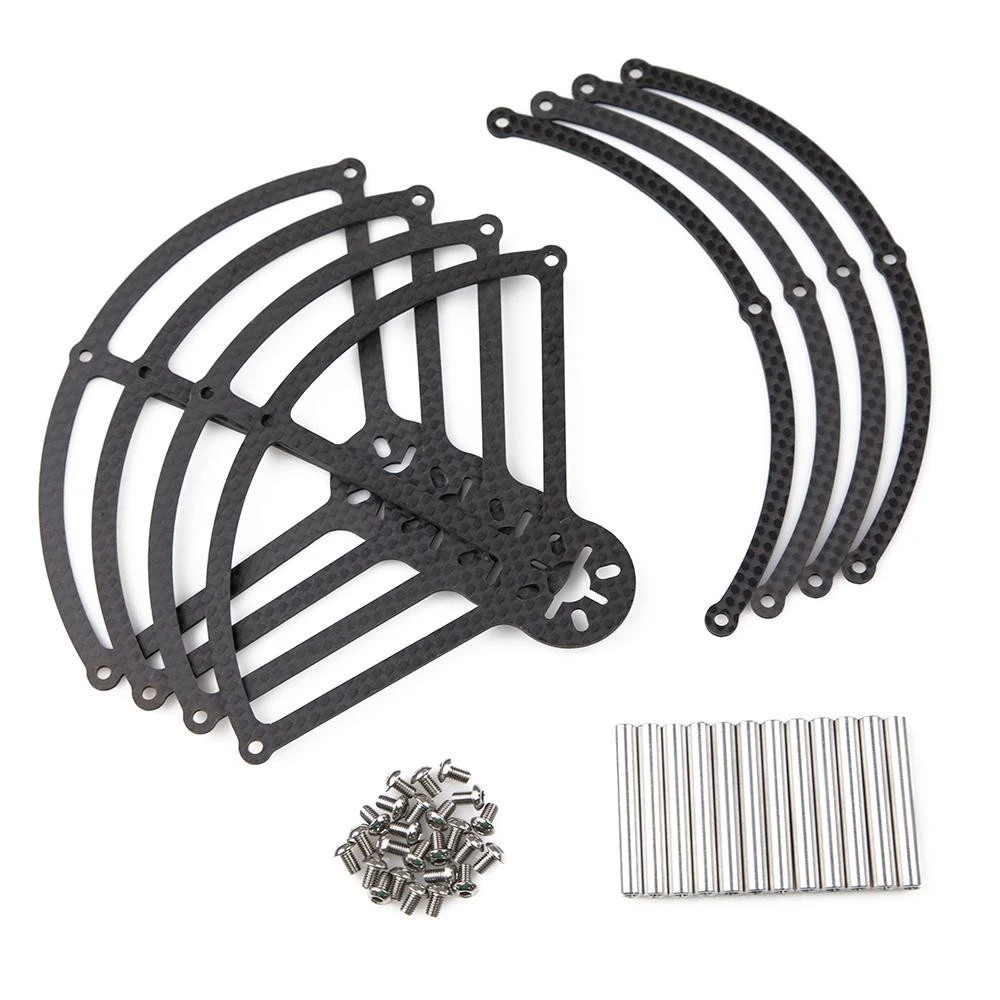

Includes:

• 4x prop guard sets made of Carbon Fiber

• 12x 35mm aluminum spacers and screws

Not Included but required:

Longer Motor Mounting Screw options:

• For motors that use M3x8 screws, you will need 16 M3 screws that are 7-8mm long.

• For motors that use M2x8 screws, you will need 16 M2 screws that are 7-8mm long.
