Lumenier Pagoda 2 Long Stem 5.8 GHz Antenna RHCP

Lumenier Pagoda 2 Long Stem 5.8 GHz Antenna RHCP

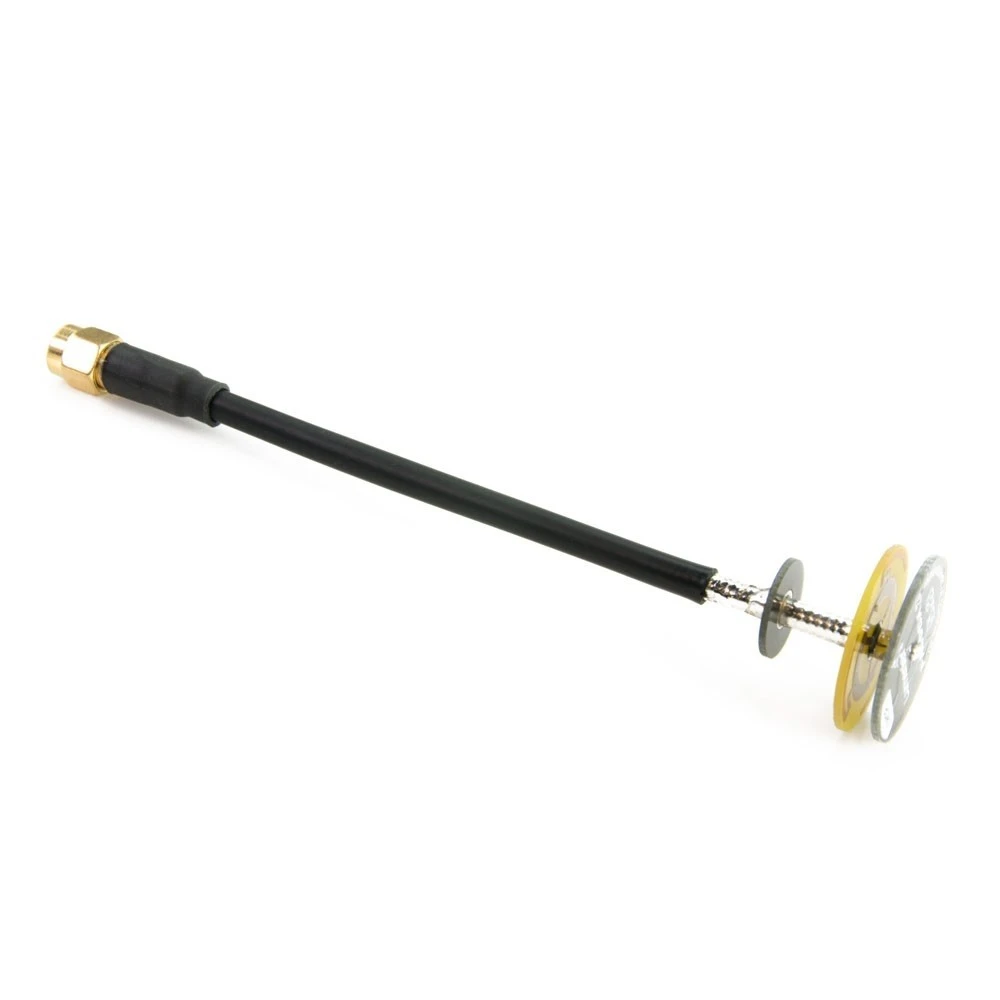

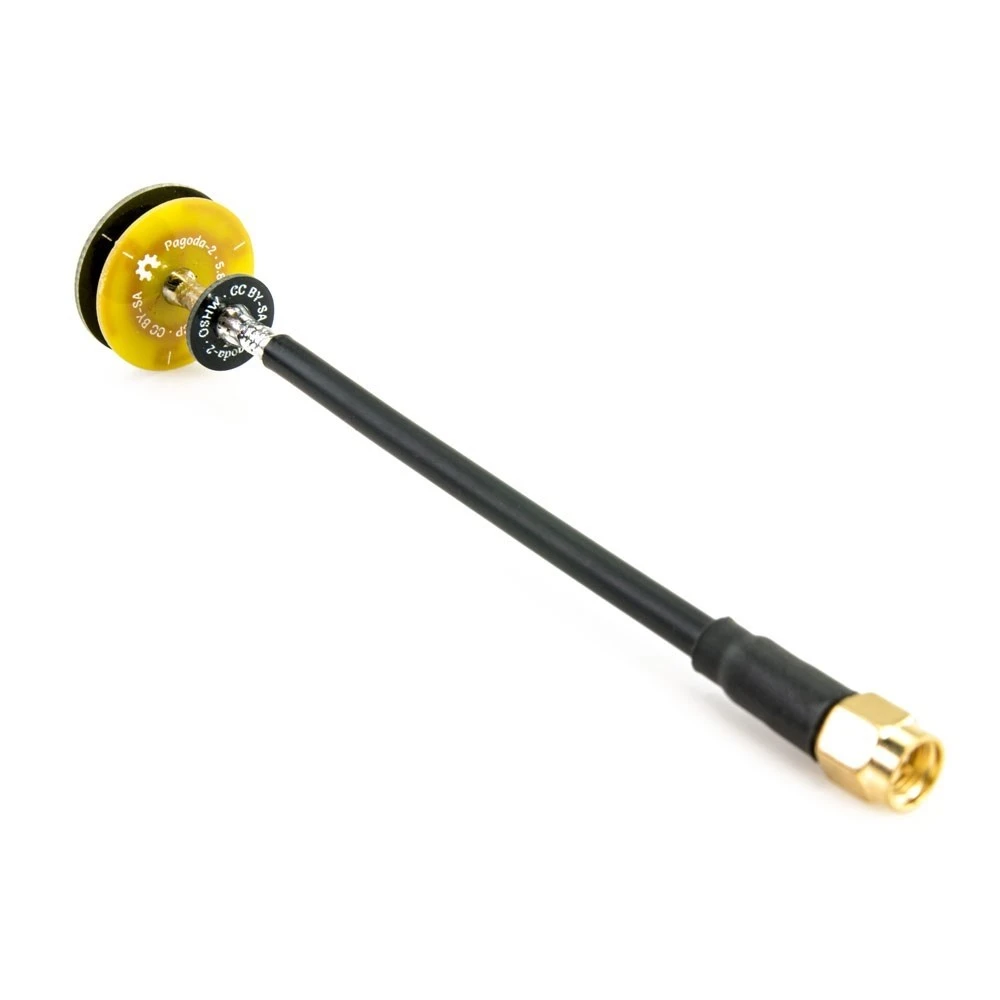

The Lumenier Pagoda 2 Long Stem 5.8 GHz Antenna RHCP is an omni-directional circular polarized 5.8GHz FPV antenna with great performance in a small sized antenna, only 125mmx 22.5mm & 8 grams in weight. The Lumenier Pagoda 2 Antenna was designed by Maarten Baert and manufactured by Lumenier under the Creative Commons License.

The Lumenier Pagoda 2 Antenna gives an excellent omni-directional radiation pattern along with a good axial ratio, FPV flyers & racing drone pilots will find solid all around coverage from these antennas. The Pagoda does not come with a protective case, this was done to keep the weight lower, however, you can print your own 3D printed cover as an alternative. The Lumenier Pagoda 2 5.8 GHz Antenna RHCP antenna’s simplified manufacturing process keeps costs low allowing for a great low price for an antenna with high performance.

Spec’s:

• Gain: ~2dbic

• Axial ratio: < 1.3

• Bandwidth: 5.5GHz-6.05GHz

• Radiation Efficiency: 95%

• SWR: S11 < -20 dB, VSWR < 1.22 (at center frequency)

• Weight: 11g

• Size: 125mm x 22.5mm

• Cable: Semi-rigid RG402

• Connector: SMA (crimp shield + heat shrink)

• Works great as both a transmitting or receiving antenna

• Compatible with other styles of 5.8GHz RHCP antennas

• Suppiled as single antenna
