Lumenier Multi-functional RGB LED Tail Light

The Lumenier Multi-functional RGB LED tail light has been designed for FPV drone racing, as drone racing has become more popular the need for a clear and consistent LED lighting solution is now becoming a requirement at most race meetings. The Lumenier Multi-functional RGB LED tail light is the answer for this requirement, after months of perfecting the Lumenier Multi-functional RGB LED tail light makes life easy for the pilot and builder.

The Lumenier Multi-functional RGB LED tail light provides consistent and clear lighting for racing drones and race organisers, and assists the audience seeking to identify pilots during day and night racing and aerobatics events. The Lumenier LED lighting is powered by this Multifunctional RGB LED Tail Light and system controller. With the wide voltage input range you can easily power the tail light, supply any voltage between 5v – 26v. With the simple push of a button the LED Tail board will cycle through many solid color choices and pre-programmed patterns. The Lumenier Multi-functional RGB LED tail light board can provide power and control signals for additional Lumenier Digital RGB Arm LED Board (sold separately), as well as additional LED boards that are daisy chained after the 4 supported Arm LED boards, powering side LEDs, top LEDs, etc.

The LED Tail board can power its own 9 RGB LEDs, 4 LEDs on up to 4 Arm LED boards (16 LEDs), and an additional 20 LEDs that are daisy chained after the 4 Arm LED boards, this allows for up to 45 LEDs total. Holding the button on the LED Tail board switches the board into “Cleanflight Mode”, which enables you to program the 9 LEDs of the LED Tail board and any number of LEDs that are daisy chained thereafter (Cleanflight can support a total of 32 LEDs). The LED Tail board stores the last setting it was in when it is power cycled. One of the modes of the LED Tail board is an “OFF” mode that turns all LEDs off.

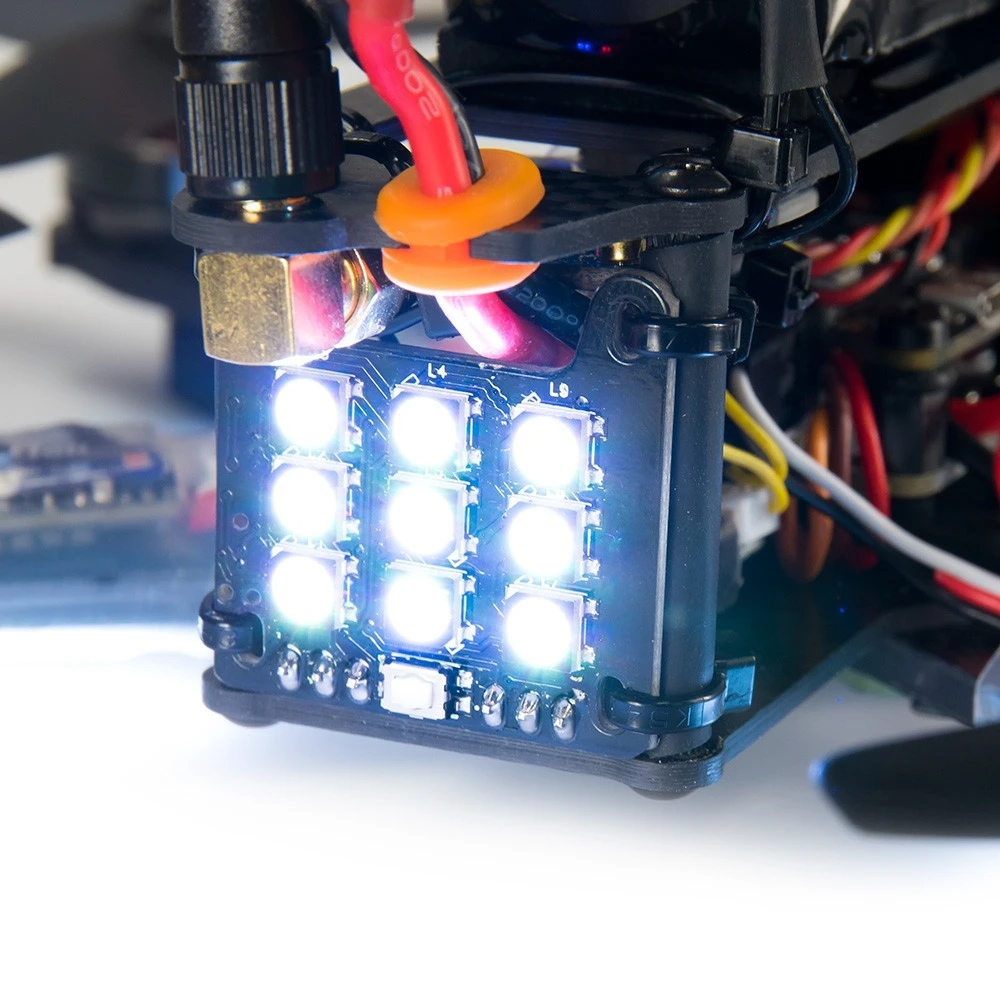

Note: The LED Tail Light Kit includes 2 pieces of heat shrink tubing. Install this tubing over your metal spacers where the LED board will attach itself via the zip ties. Otherwise the back of the LED board may short circuit on metal or carbon.

Specifications:

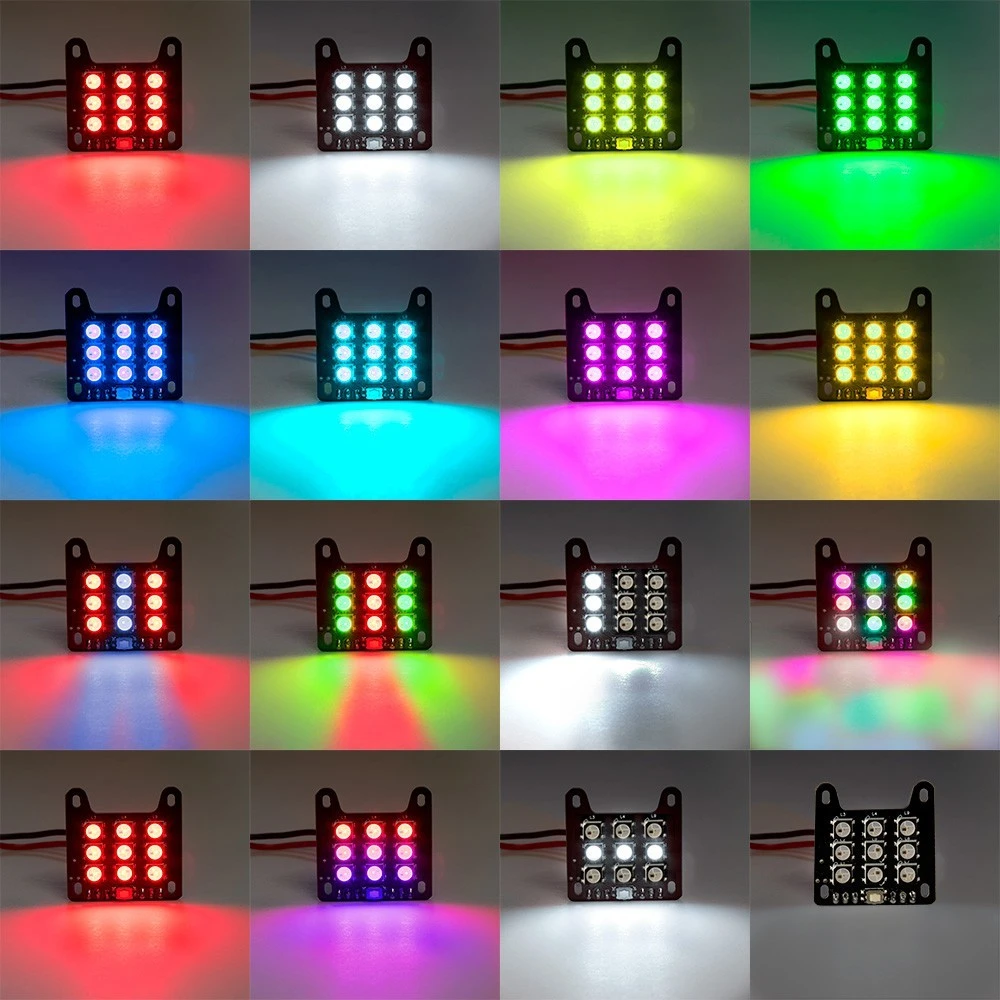

• 16 pre-programmed colors / patterns

• Height: 32mm

• Width: 32mm

• Weight: 4g

• 1.5mm thick PCB, 5mm including LEDs and components

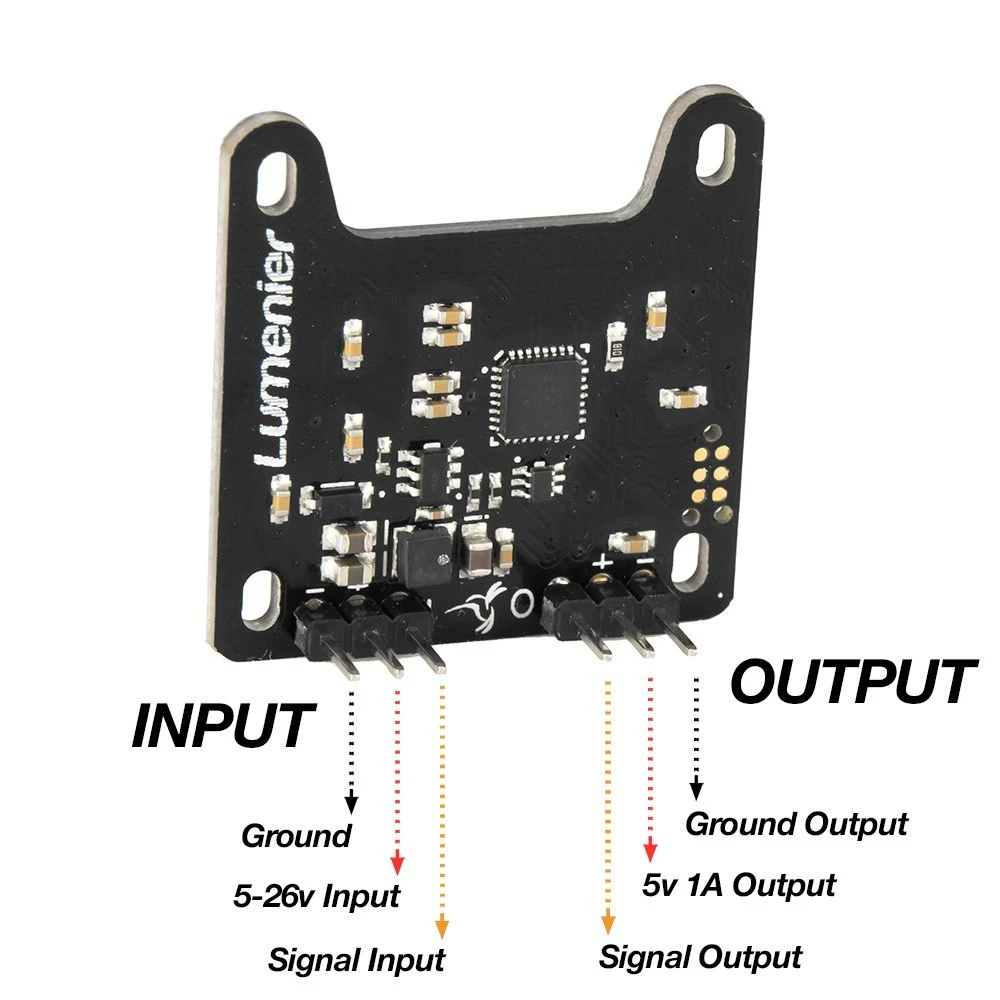

• Onboard 5v/1A regulator (5-26v direct input)

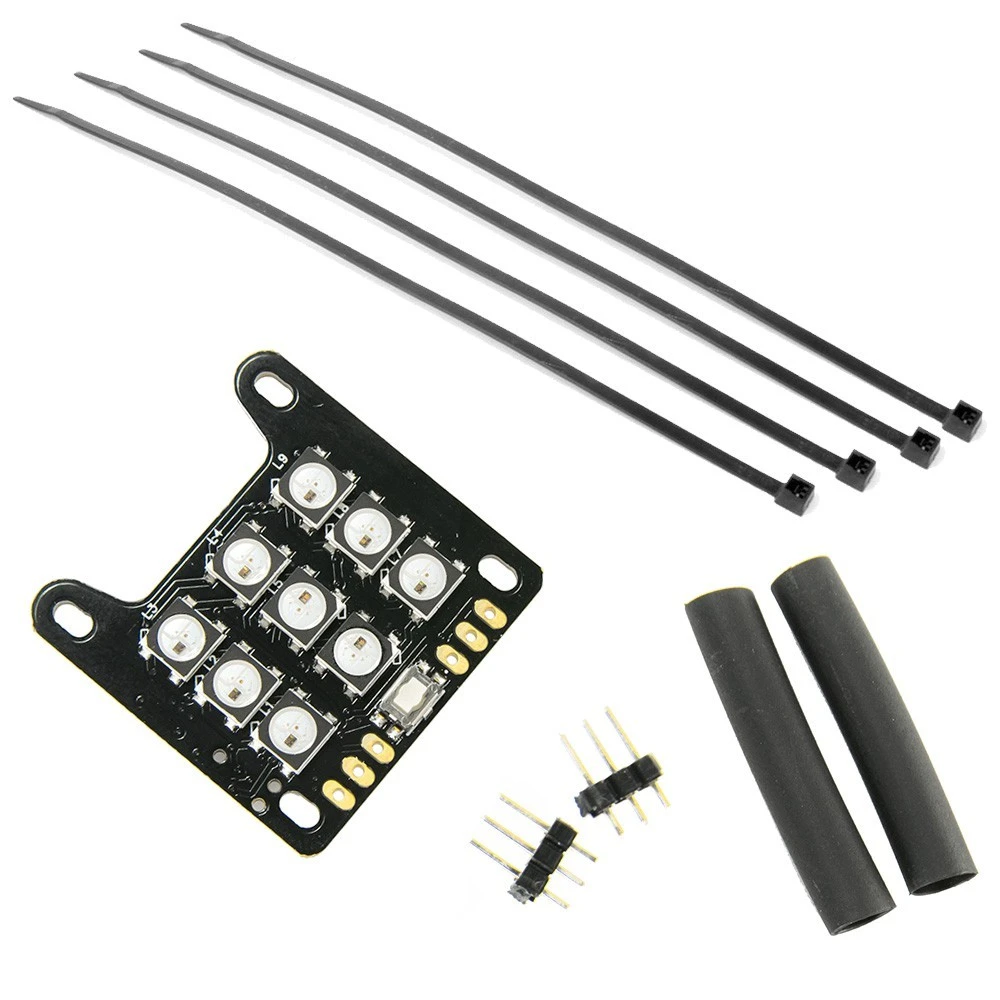

Included:

• 1 x Lumenier Multi-functional RGB LED Tail Light

• 4 x Mini Zip Ties

• 2 x 1 x 3 single row pin header

• 2 x Heat shrink tubing for stand offs



Additional products to build the full system:



• LED Arm Board
• QAV-R LED Power and Signal Distribution Board
