Lumenier MICRO LUX F4 Flight Controller

The Lumenier micro LUX F4 flight controller brings the incredible power and performance to the micro brushless world. The Lumerier micro LUX F4 uses a powerful F4 processor along with top of the line hardware. Now you can get all the performance from a F4 based flight controller in a micro size! This flight controller uses 20x20mm mounting holes and a low profile design allowing for smaller airframe designs than ever before. The micro LUX comes with BetaFlight pre-installed.

The Lumenier micro LUX is available as a stand-alone MICRO F4 Flight Controller or with an included 8CH SBUS FrSky compatible receiver. The micro LUX supports both SBUS and PPM inputs as well as DSM/DSMX receivers with both 5v and 3.3v support.

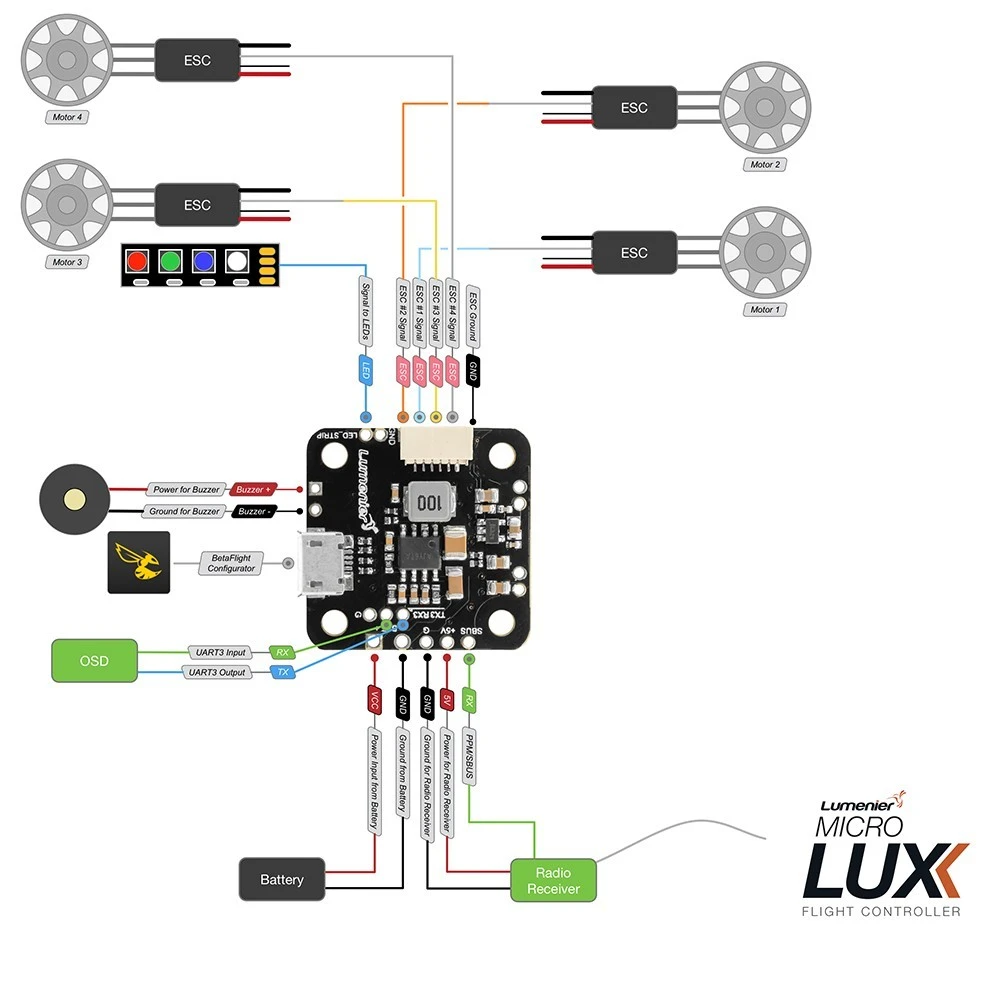

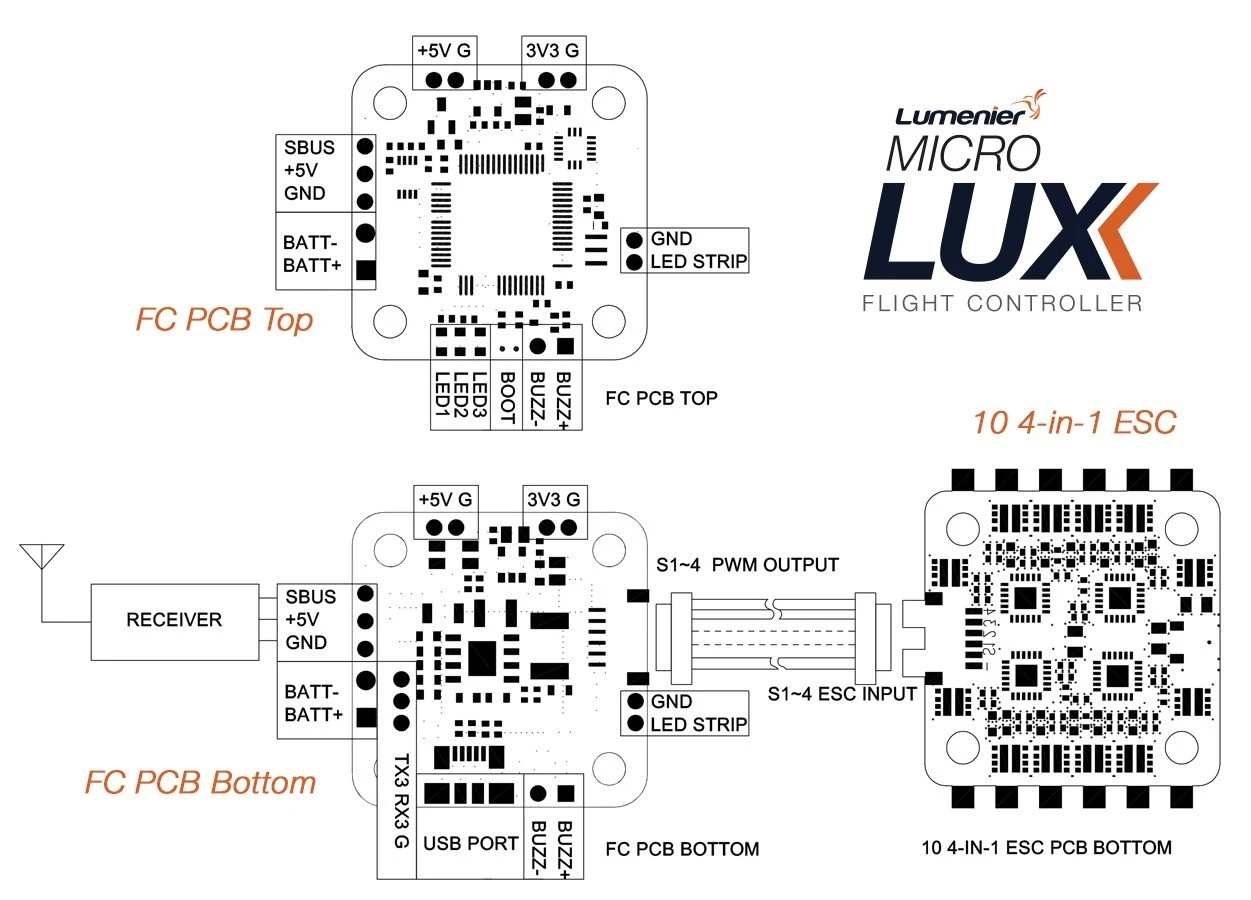

The micro LUX features a direct plug and play capability with the Lumenier Mini BLHeli_S 10A 4-in-1 OPTO ESC with a simple ESC signal wire jumper.  If you need more power, pair this flight controller with 2x of the Lumenier BLHeli_S 20A 2-in-1 OPTO ESCs (20x20mm)..



Software/Hardware Features

• 2-4S Direct Lipo input support (5-16v)

• Onboard 5v/2A and 3.3v/0.2A regulators

• SBUS and PPM support

• RGB LED dedicated pad and support

• 3x UART Ports

• Betaflight support (Supports new DSHOT protocol)

• BLHeli passthrough flashing supported by hardware

Specifications

• STM32F405 (1MB flash) 32-bit processor

• ICM-20608-G SPI Gyro/Accelerometer

• High quality 1.6mm PCB

• Micro USB connector for programming

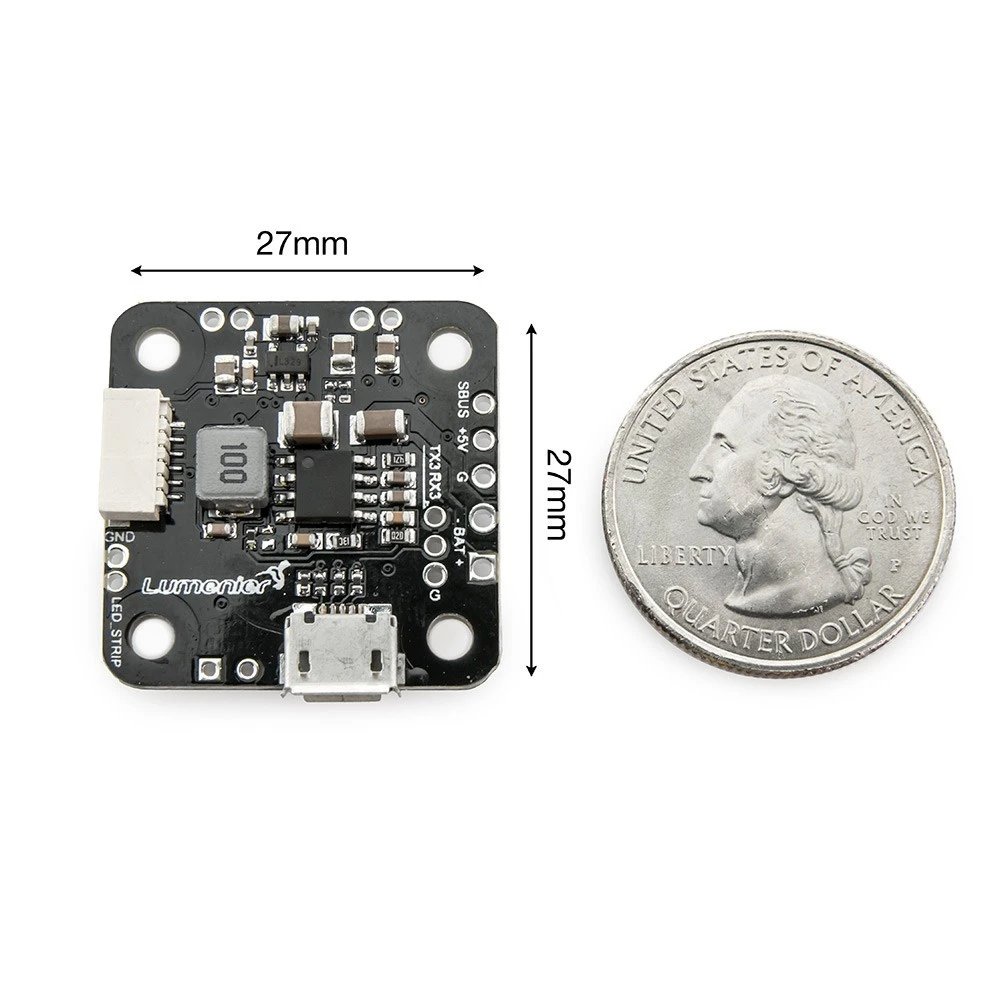

• Dimensions: 27 x 27 x 6mm (includes USB in height)

• Mounting Holes: 20mm square to center of holes

• Weight: 4g

Includes

• 1x Lumenier MICRO Lux Flight Controller

• 2x Pin Headers (3×1)

• 8x Anti-Vibration Mounting Rings

• 2x ESC Input cables

Downloads

• Download the Lumenier MICRO LUX User Manual (coming soon)
• Download Cleanflight (Load the “BLUEJAYF4” target)
• Download Betaflight Configurator – Latest Betaflight Firmware  (Load the “BLUEJAYF4” target)
