Lumenier Digital RGB Arm LED Board

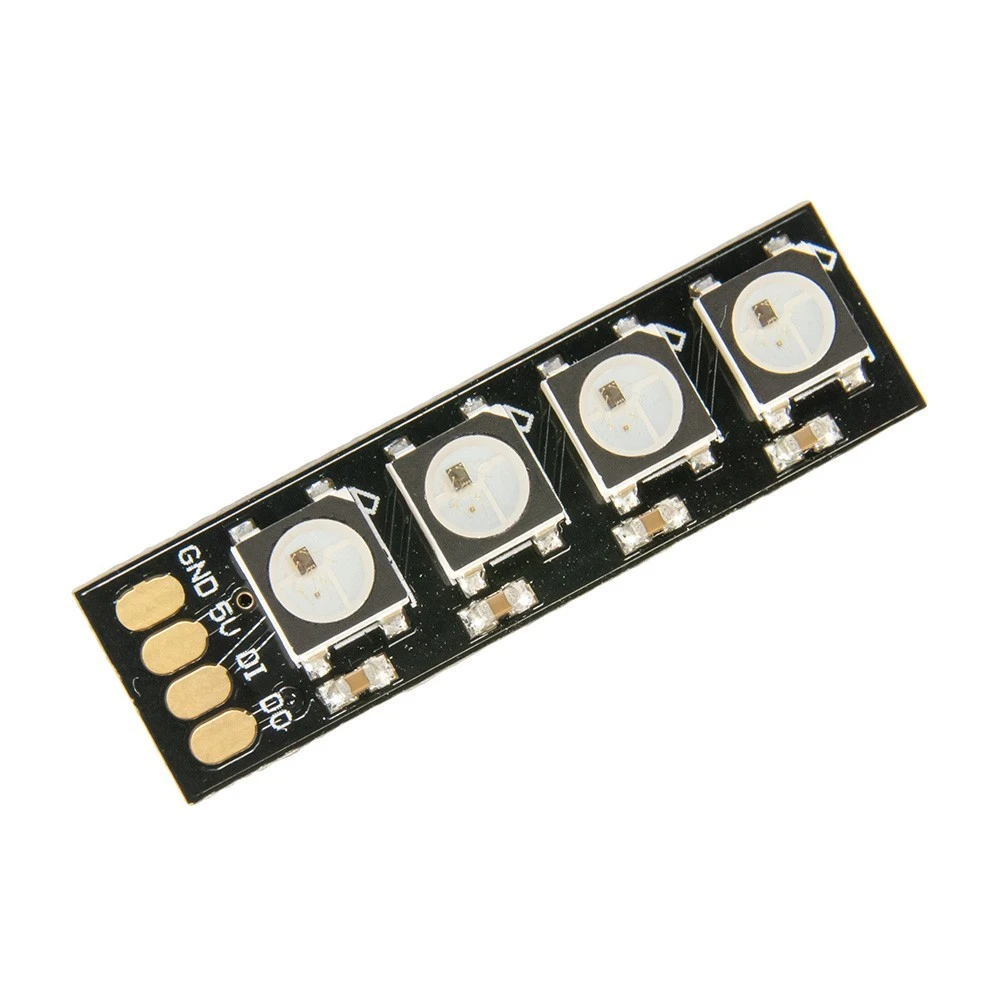

The Lumenier digital RGB arm LED board has 4 super bright LEDs which are universaly addressible, the array of RBG LEDs can work directly with the Lumenier RGB LED Tail or with a flight controller using Cleanflight LED control software.

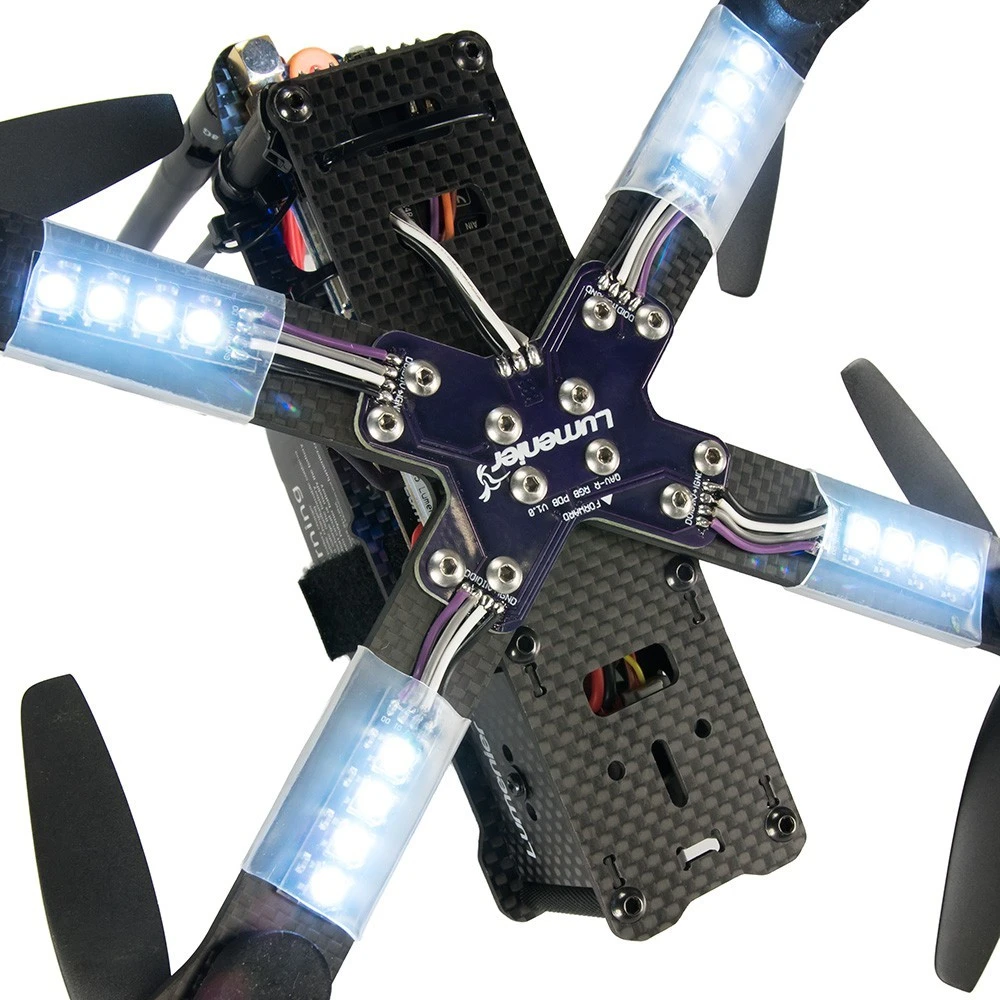

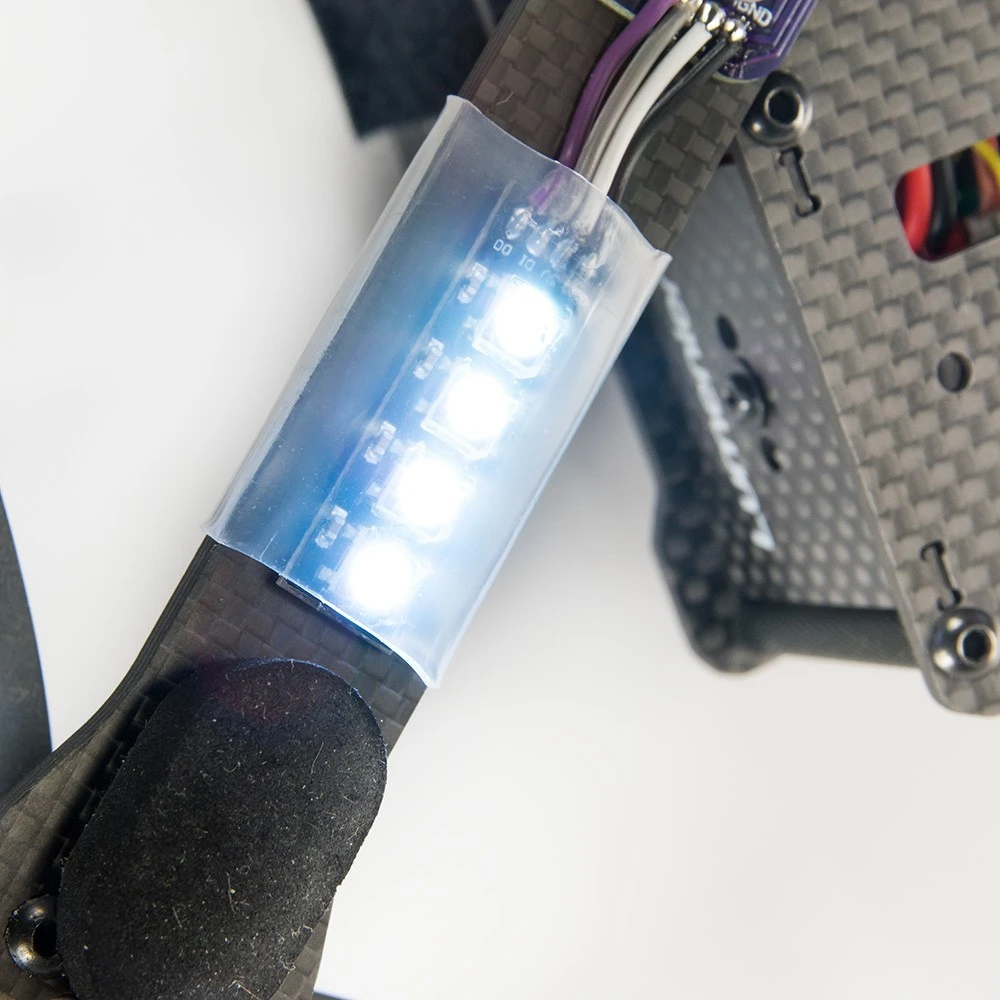

The Lumenier digital RGB arm LED board works with a 5v supply, they also need a ground and a signal source in order to work. The layout of the PCB board means that it keeps wiring clean and neat with input and output pads on the same end of the board, each arm on your aircraft can have a LED board with the wiring pointing to the middle.

The Lumenier digital RGB LED board are supplied as single units, you will need to order one per arm.

Specifications:

• Length: 32mm

• Width: 10mm

• Weight: 1g

• Input Voltage: 5v (over 5v will burn the LEDs)

• 1mm thick PCB, 1.75mm including LEDs

• Input and Ouput signal pads on the same end for clean wiring

• 1x Lumenier Digital RGB Arm LED board
