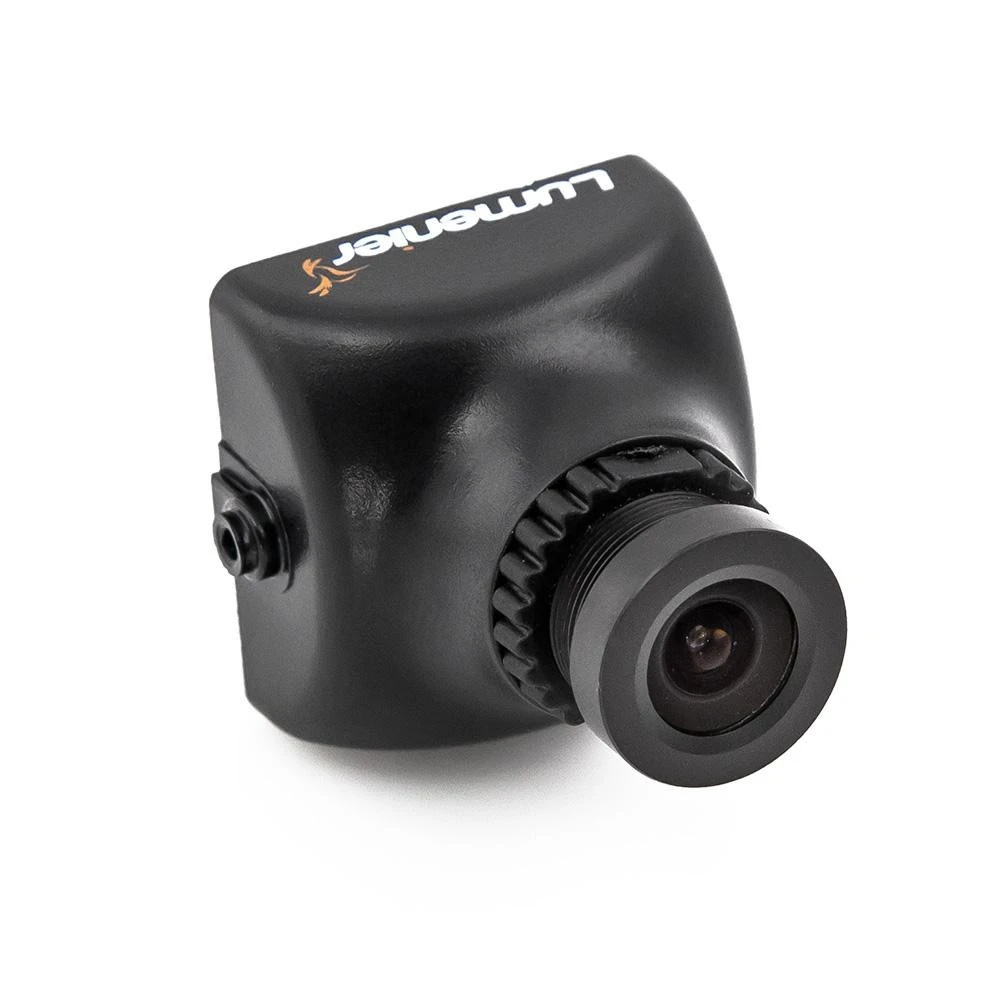

Lumenier CM-650 Mini 650TVL Camera Black Case

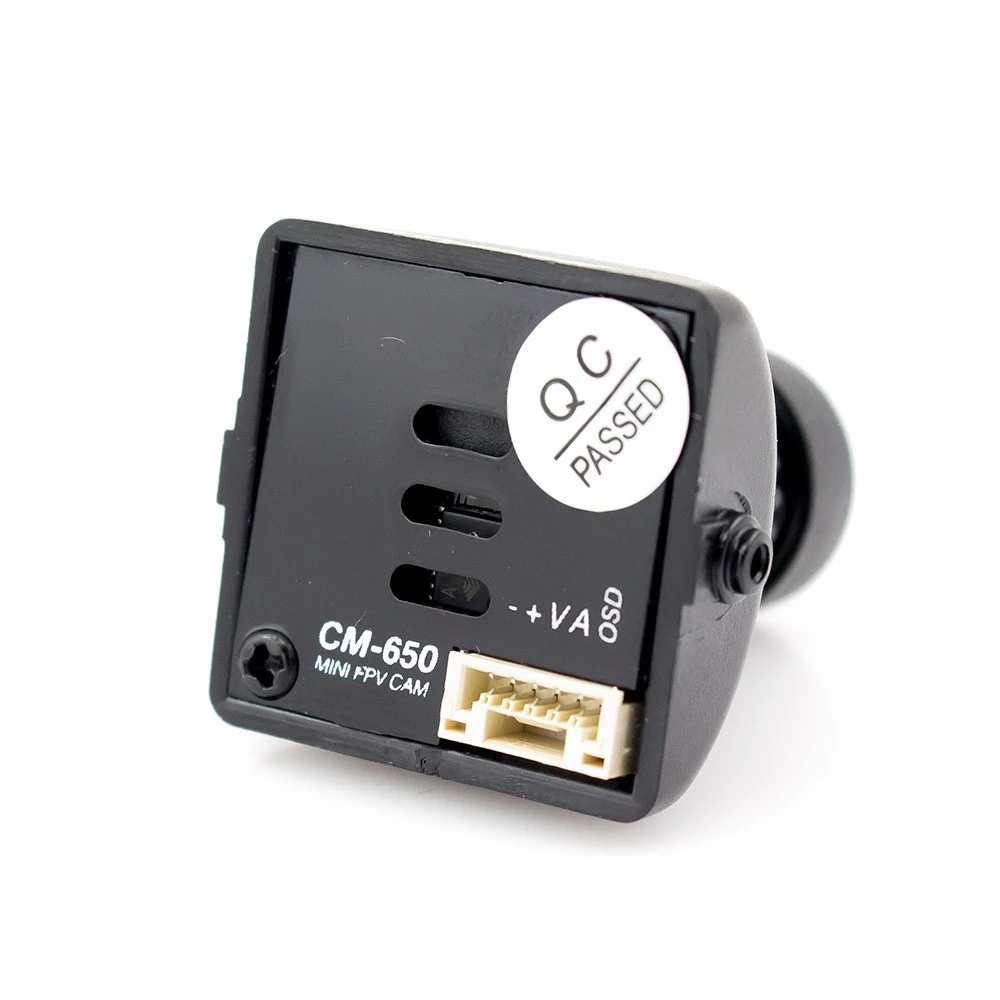

The Lumenier 650TVL FPV camera is a high quality camera with full OSD controls designed for first person view flying. The Lumenier 650TVL camera comes in a small, aerodynamic enclosure that is only 14 grams and measures 26 x 26mm. While the Lumenier 650TVL is small in size, this compact camera is full of features, giving you the best of both size and performance. This camera works well with Lumenier, FatShark and ImmersionRC transmitters which will power cameras at 5v. Make sure that you connect the power to the correct pins on the camera, some manufacturers have different pin out configurations.

• 650TVL

• 2.8 mm Lens

• Suitable for FPV running on 5-20v power

• Low illumination: 0.01Lux

• 1/3″ SONY SUPER HAD II CCD

• Nextchip 2040

• Powerful OSD menu

• D-WDR (Wide Dynamic Range)

• 2D-DNR (Digital Noise Reduction)

• Low Power Consumption(70mA)

• Mirror function

Specifications

CCD	1/3” Sony SUPER HAD II CCD
Pixel	NTSC: 768(H)×494(V)
TV System	NTSC
Resolution	650TVL
Synchronization	internal synchronize
Shutter Speed (CCD IRIS)	NTSC: 1/65~1/100000 sec
Noise	> 65 (AGC OFF)
Video Out	1.2Vp-p,75ohm, synchronize
Horizontal Resolution	Color 700TVL
Min. Illumination	0.01Lux
Auto Gain	Off/Low/Mid/High
Back Light Compensation (BLC)	Off /Back light compensation/ Strong light suppression
Private shading (PRIVACY)	1~8 private shading area
Motion Detection (MD)	On/ Off (Multi level sensitivity settable)
Auto White Balance	Manual / Auto / Auto track
Mirror	Horizontal Mirror optional
Negative	Positive / Negative optional
Color to B&W	Auto
DNR	2DNR
Day / Night Shift	Auto/ Color/ B&W/ External control (can set start and end position )
Menu (OSD)	English menu
White Dot Repair	Support
Image Adjustment	Support
Camera Title	Support
Power Requirement	DC 5V-20V (2-5s Lipo Battery)
Working Temperature	-10 C ~ +50 C
Working Humidity	20~80%
Storage Temperature	-40 C ~ +65 C
Storage Humidity	20~95%
Dimensions(mm)	26X26(W*L – Includes case)
Power Consumption	70mA



When using this transmitter on builds with ESC’s that feature regenerative braking, we strongly recommend powering the transmitter with a 12V step down regulator to protect it from voltage spikes. 12V Step Down Voltage Regulator
