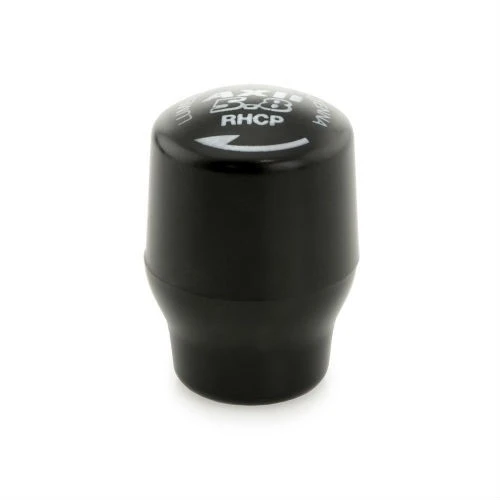

Lumenier AXII Stubby 5.8Ghz RHCP Antenna

The Lumenier AXII Stubby 5.8Ghz antenna uses the same technology as found on the full sized Lumenier AXII 5.8Ghz antenna and shrinks it down to less than half the size and almost half the weight.

Lumenier brings you one of the smallest, lightest and best peforming antenna’s on the market with this original design that features a new RF pathway technology (unique hybrid network) giving you maximum performance at minimal size and weight (4.7g).

Despite it’s impressive size and weight, there has been no sacrafice made to the performance, and in fact this antenna is capable of out performing most other antenna’s in all other catagories. Precise engineering has allows this antenna to have a near perfect 1.0 Axial ratio giving true circularity. The AXII Stubby has a max high gain of 1.6dBic resulting in better range and penetration, also a wide bandwidth enabling support with popular FPV brands using 5.5-6.0Ghz.

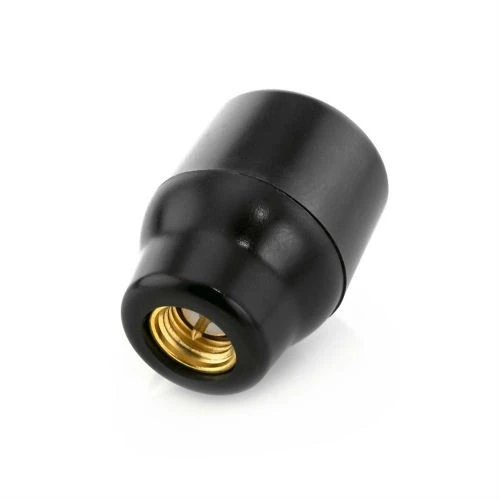

The AXII Stubby has been designed to withstand a huge amount of punishment as delivered from the nature of flying from FPV pilot’s. This is acheived by manufacturing a very light antenna whereby the SMA connector is securely house inside the case for maximum support and protection. The outer shell case is constructed from an impact resistant polycarbonate material for maximum strength.

Specification.

• Gain: 1.6dbic

• Axial ratio: 1.0 (near perfect)

• Bandwidth: 5.5GHz-6.0GHz

• Radiation Efficiency: 98%

• SWR: <=1.5:1

• Weight: 4.7g

• Size: 24mm x 16mm

• Connector: SMA

• Works great as both a transmitting or receiving antenna

• Compatible with other styles of 5.8GHz RHCP antennas
