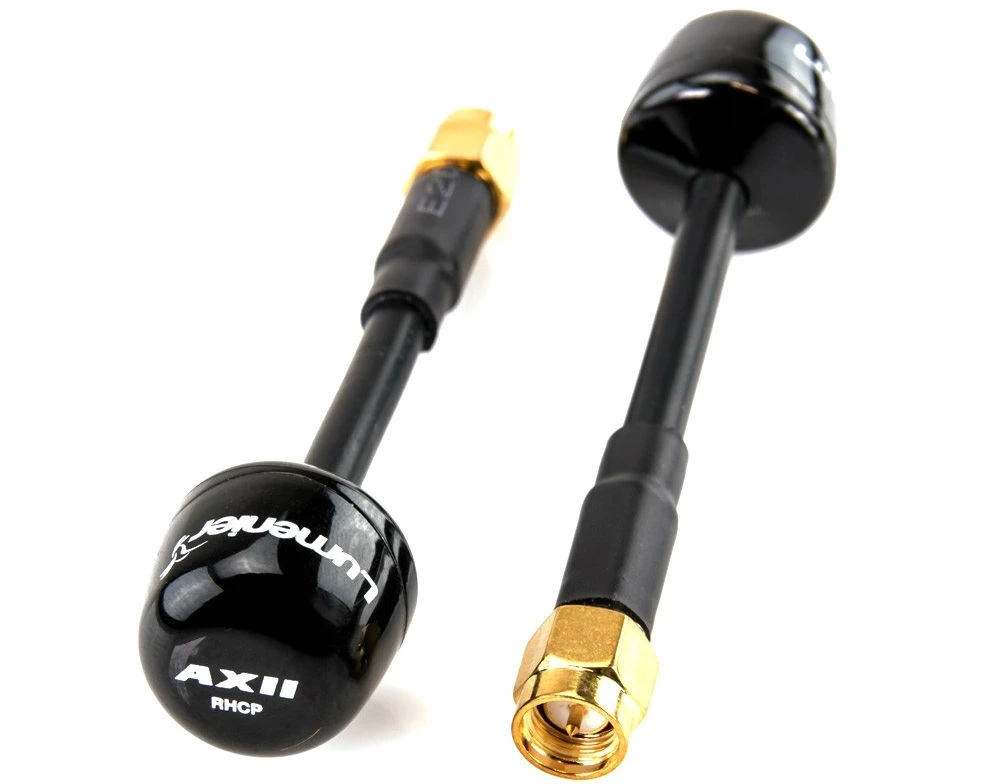

Lumenier AXII 2 5.8GHz Antenna RHCP

Lumenier AXII 2 5.8GHz Antenna RHCP

The Lumenier AXII 2 5.8GHz Antenna RHCP antennas are supplied as a matched pair of antennas, these FPV antennas make a huge leap forward in FPV antenna solutions. Lumenier, in collaboration with the renowned FPV antenna designer Hugo of TrueRC, brings you one of the smallest, lightest and best performing FPV antennas on the market. The Lumenier AXII 2 5.8GHz Antenna RHCP is based on the original design that features a new RF pathway technology (unique hybrid network) enabling it to be super light weight (7.8g) and less than half the size of most other 5.8GHz CP antennas available.

Even though the Lumenier AXII 2 5.8GHz Antenna RHCP is both small and lightweight, performance is not sacrificed, and in fact it out performs most other antennas in all categories. Precision engineering has given this antenna a near perfect 1.0 Axial ratio resulting in a true circularity. As well as that, the Lumenier AXII 2 5.8GHz Antenna RHCP has a high max gain of 2.2 dBic gain allowing better range and penetration. It has a wide bandwidth covering the popular FPV 5GHz band from 5.3GHz-6.2GHz, ensuring you have a clear and strong signal no matter which frequency your on.

The Lumenier AXII 2 5.8GHz Antenna RHCP is designed to be incredibly durable amde from polycarbonate, and ultra-sonically welded shut to withstand the beatings FPV pilots put their antennas through. The cable is a semi-rigid, black coated RG402 cable and has a total lenght of 73mm long, allowing for 90 degrees or more of freedom. The SMA connection is reinforced with a metal collar crimped to the base for additional support. The outer shell case is made from an impact resistant polycarbonate material, and it is sealed shut to guard the antenna elements inside. Note: When installing, secure the antenna via the SMA connector, do not twist the cap.

Specifications.



• Gain: 2.2dbi

• Axial ratio: 1.0 (near perfect)

• Bandwidth: 5.3GHz-6.2GHz

• Radiation Efficiency: 98%

• SWR: <=1.5:1

• Weight: 7.8g

• Size: 70mm x 17.5mm

• Cable: Semi-rigid RG402

• Connector: SMA

• Works great as both a transmitting or receiving antenna

• Compatible with other styles of 5.8GHz RHCP antennas
