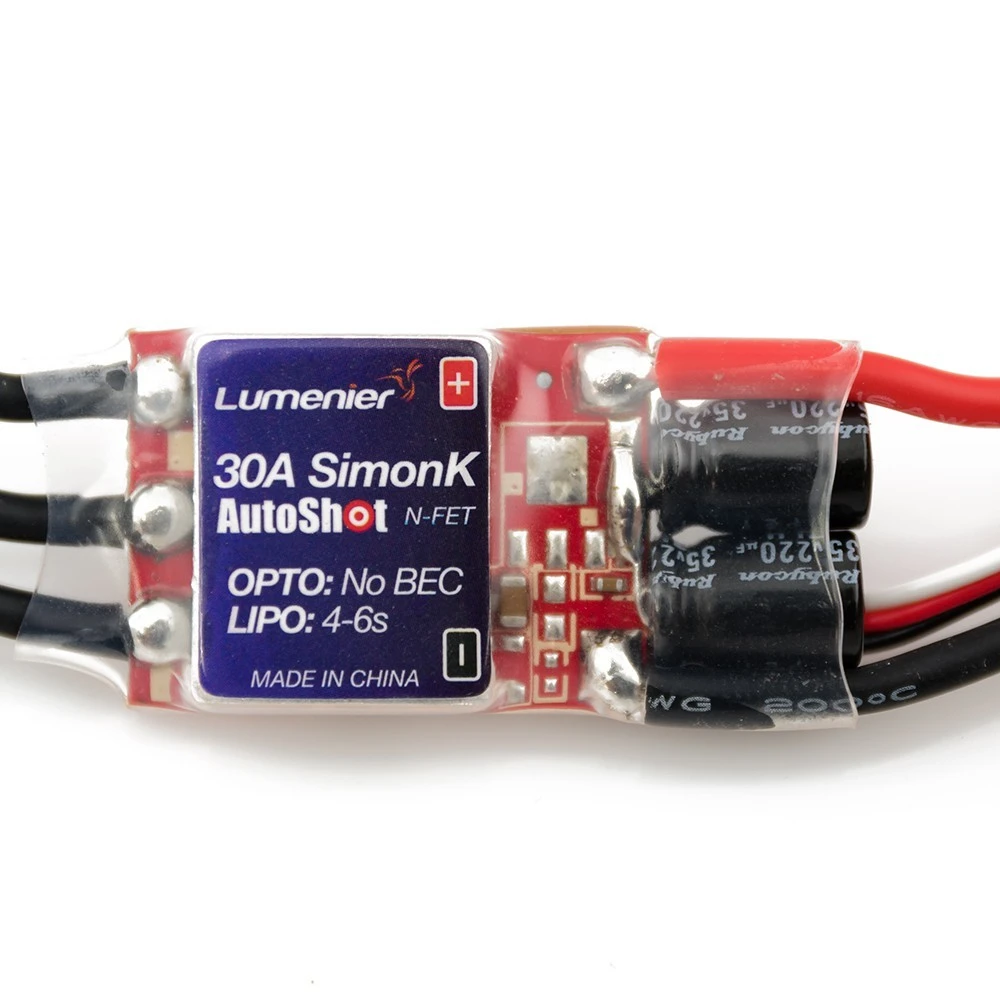

Lumenier 30 Amp 4-6s ESC With SimonK Firmware Opto

Lumenier 30 amp 4-6s ESC With SimonK Firmware Opto.

The new Lumenier 30 amp ESC features and extremely low output resistance, consequently giving you longer and more efficient flights. Combined with the SimonK firmware which provides precise, linear and smooth throttle response for an all around better experience.

This version of the Lumenier 30 amp ESC is Opto isolated and does not feature a BEC, meaning you will not be able to provide power to your electronics from the ESC.

Specification

• Output: Continuous 30 amp

• Weight: 35g

• Size: 45mm(L), 24mm(W), 9.5mm(H) (Including Capacitor)

• Motor Wire Length: 40mm with 3.5mm Female Bullet Connectors

• Signal Wire Length: 16cm to Male Servo Connector

• Power Wire Length: 10cm to bare wire

• Battery Cells: 4-6S Lipo Battery

• BEC: No BEC, Opto Isolated
