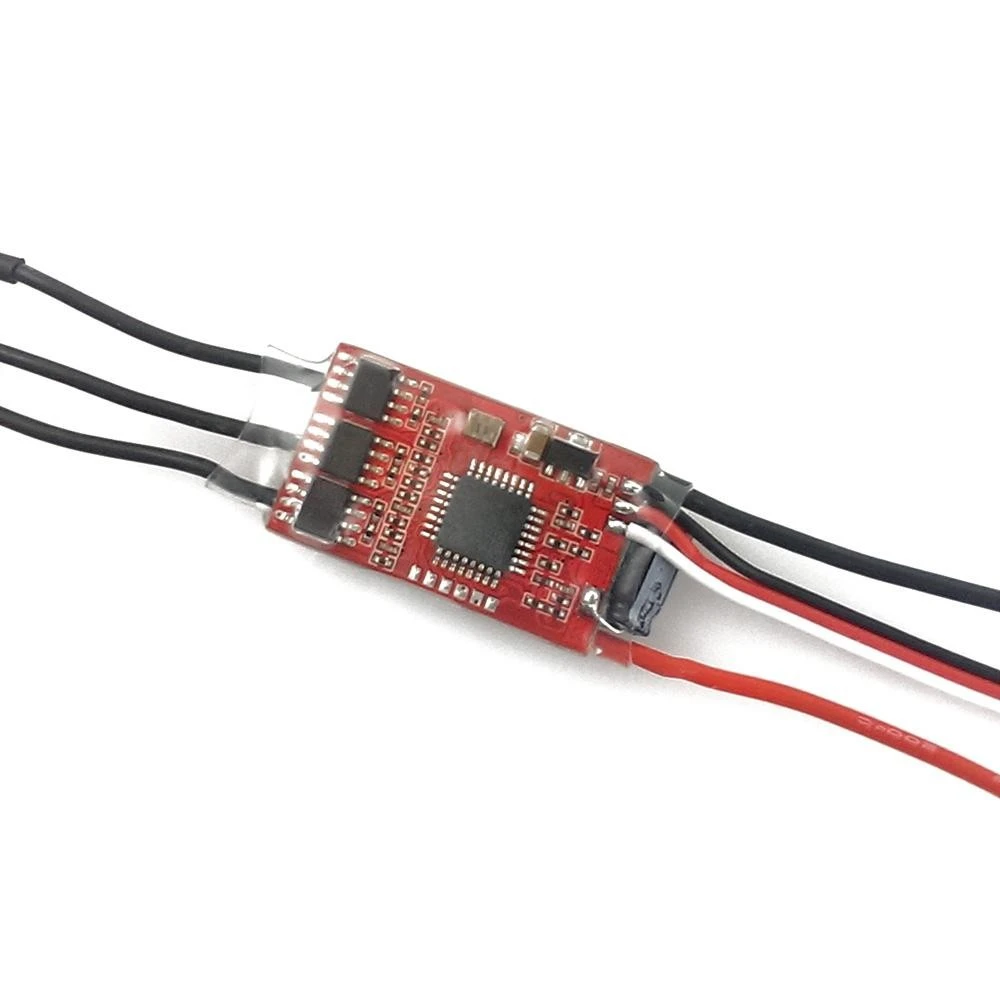

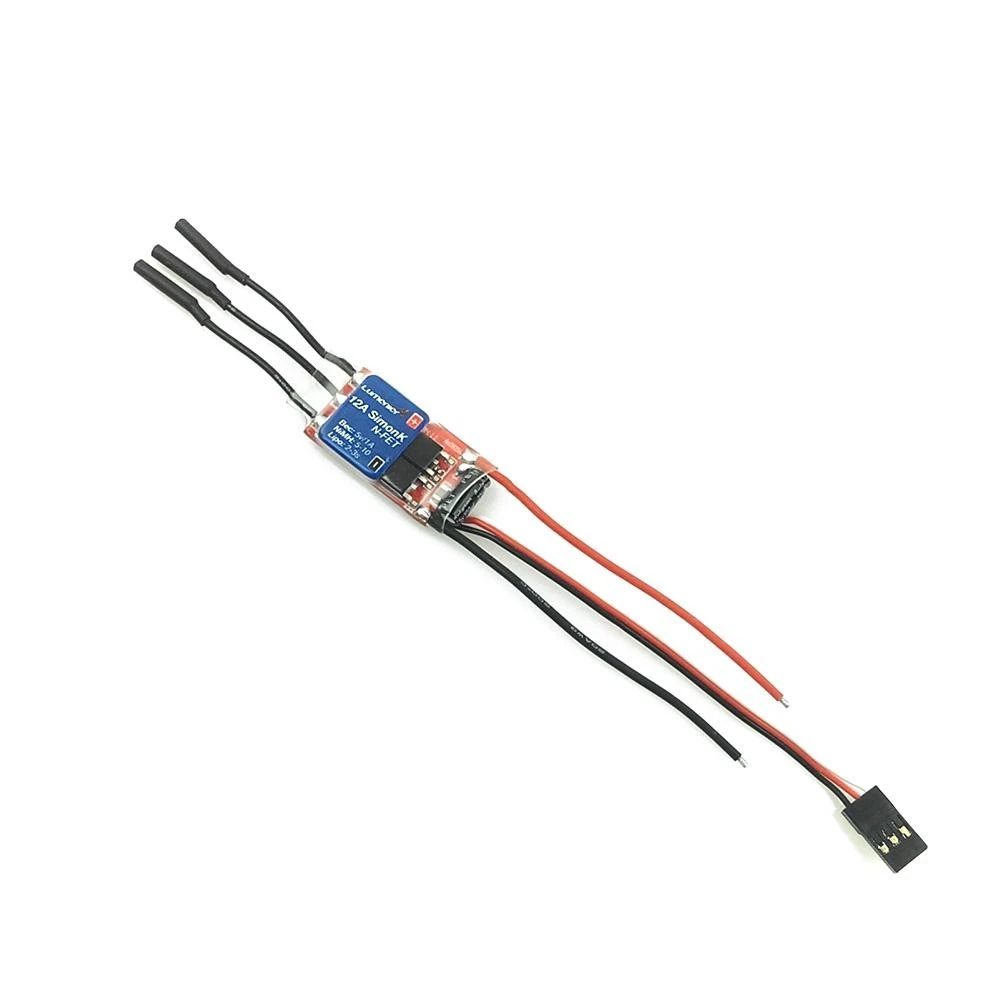

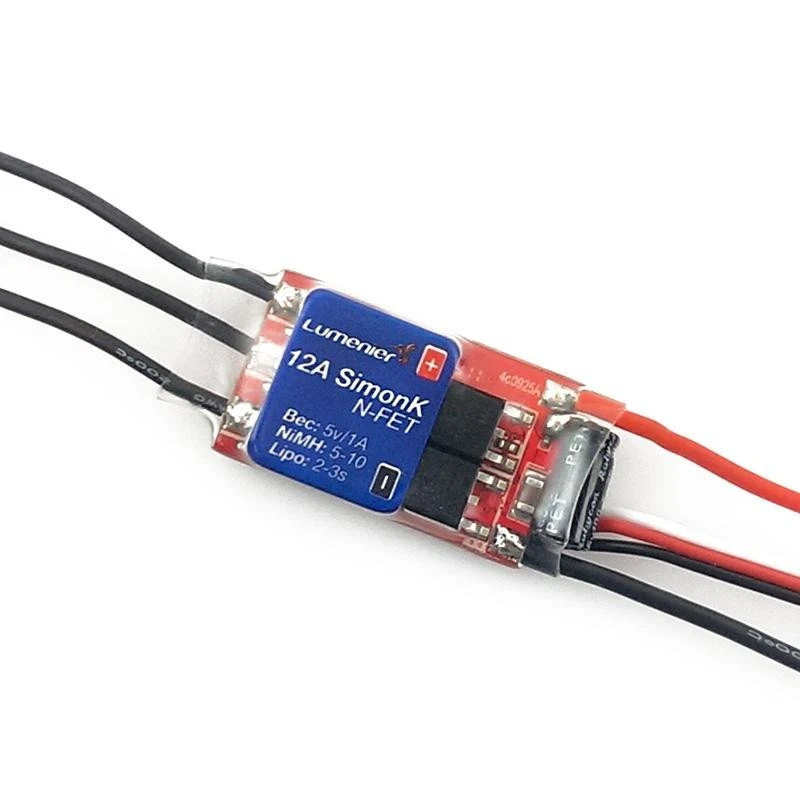

Lumenier 12 Amp ESC With SimonK Firmware (N-FET)

Lumenier 12 Amp ESC with SimonK Firmware N-FET

The

Lumenier 12 Amp ESC with SimonK Firmware is a perfect ESC to use with Mini FPV Quadcopters and Hexacopters, the small foot print of these ESC’s make them the ideal choice for use on either the QAV250 G10 V2 or the QAV250 Mini FPV Quadcopter Carbon Fiber Edition. The ESC’s only weigh 10 grams and with the small profile of  just 31 x 18 x 7mm’s they can be secured without taking up valueble space on small airframes.

An ESC has either P-channel and N-channel FETs mixed or N-channel FETs only. The ESCs which use only N-channel FETs have the advantage of lower resistance, less losses and hence more efficiency

Features:



• Max continuous load: 11 amps

• Burst Current: 16A for 10sec

• N-Fet Only with BEC flashed with bs_nfet.hex

• BEC: 5v @ 1amp max

• Lipo Cells: 2 to 3 cells

• Cables are fitted with female 2mm bullet connectors

• Weight: 10g

• 15cm signal wire / 5v power

• 5cm motor wires (including 2mm bullet connector)

• 70cm ESC power wires
