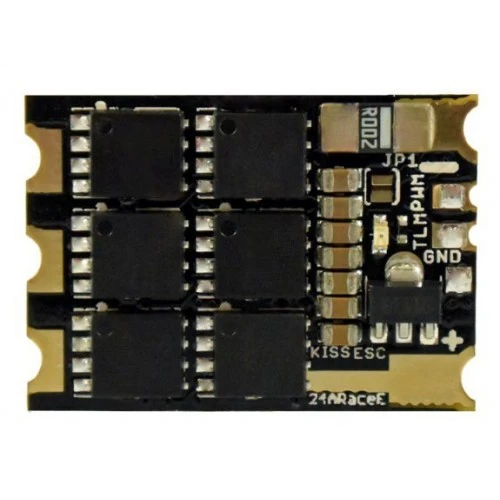

KISS ESC 24A Race Edition 32bit

KISS ESC 24A Race Edition 32bit 2-5s

After more then a year of development, this KISS ESC 24A Race Edition revolutionary speed controller provides multirotor drone racing pilots with an experience they have never felt before. Even with the super simple motto, this ESC is still safe and intelligent with features such as current measurement/current limiting, temperature protection, and telemetry capabilities.

Please Note: These ESCs come preflashed with the v1.02 firmware which inludes the bootloader for future firmware updates

Features

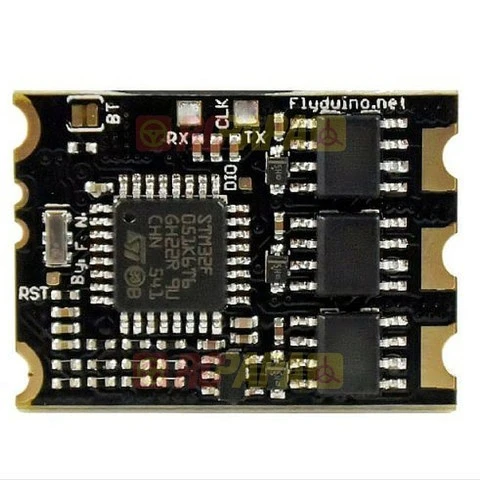

• 32-bit ARM Cortex MCU @48Mhz

• Telemetry capability (voltage, current, temp, rpm)

• Over-current protection (measures the current and reduces it to max 30A)

• Over temperature protection (reduces the max power if hotter then 120°C)

• Expanded adaptive auto timing (3,25-30° advance will be calculated on each commutation)

• For Race Multicopters (24A continuous also with bad cooling *)

• High max. RPM (450.000ERpm, 64.000Rpm with a 14 Pol Motor)

• Small size (19 x 27 mm)

• Accurate RPM control (~ 950 steps)

• No additional capacitor needed**

• Very fast throttle response

• Linear throttle response

• Active freewheeling (low diode losses)

• Regenerative braking

• Fast FET switching because of the use of gate drivers

• 2-5S LiPo

• Oneshot42, Oneshot125 and normal (25 – 500Hz) PWM auto detected.

• Operating voltage 6 – 25V

• Maximum continuous current 24A

• Instantaneous maximum current 30A active limited

• 500,000 ERPM maximum field speed (use of 450,000 recommended)
