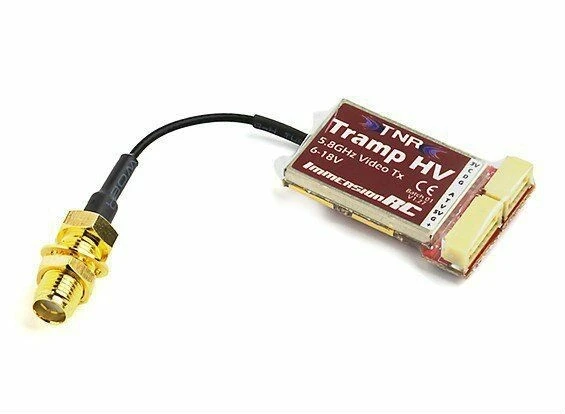

ImmersionRC Tramp HV International V2

The ImmersionRC Tramp HV international version V2 is a 5.8GHz Video Tx, its one of the most advanced 5.8GHz Video Transmitter available today. THe small and lightweight video transmitter is only 4 grams, with a small footprint of 31 x 20mm, the Tramp HV is the smallest direct LiPo-powered vTx from ImmersionRC to date.

The ImmersionRC Tramp HV V2 international version Video Tx manages to pack in the features of larger FPV video transmitter into its tiny size, the traditional ImmersionRC 5V filtered camera power supply included. With twin ground cables from the tiny locking connectors makes sure that noisy supply currents are kept away from the camera power supply. The ImmersionRC Tramp HV international version is happy to running directly from a 2s-4s (HV) LiPo, the TrampHV or run from a 5V supply already available in the quad.

The ImmersionRC Tramp HV V2 was the first transmitter to support the “Pit mode” which, transmits a tiny amount of power on a pre-defined frequency to allow for quad setup at a race event without disrupting the show. Pit mode on the TrampHV is a little different than other offerings, being controlled by race directors transparently at drone races. A race director can stay legal by choosing a pit frequency authorized for use at the event, which can be different for events in different regions. Programmed at the event using the Touch’n’Race wand.

The Tramp HV V2 is the only Video Transmitter in this size and weight class with a fully screened RF deck, providing protection against dust, dirt and knocks, while ensuring smooth sailing through the RTT&E certification process. An optional plastic case can be easily installed to increase this protection even further, without adding excessive size and weight.

The TrampHV V2 was designed alongside ImmersionRC’s RF Lap Timing system, with certified compatibility. LapRF eliminates the need for transponders on the quad for lap timing, and instead uses the energy emitted by the 5.8GHz transmitter on the quadcopter. Two LapRF versions will be available, a 16-channel race version for larger events, and a personal system no larger than a hockey puck for personal use (up to 4 pilots). Both versions sport a wireless connection to a smart phone for timing and configuration.

Another first, introduced by ImmersionRC at FPV AirRace, is technology which allows video transmitters to power up cleanly on their assigned channel without wiping out neighboring channels. Gone are the days when your fellow pilots need to hover safely why you power up beside them. This technology enables asynchronous race starts, where pilots join a race at any time without creating any interference.

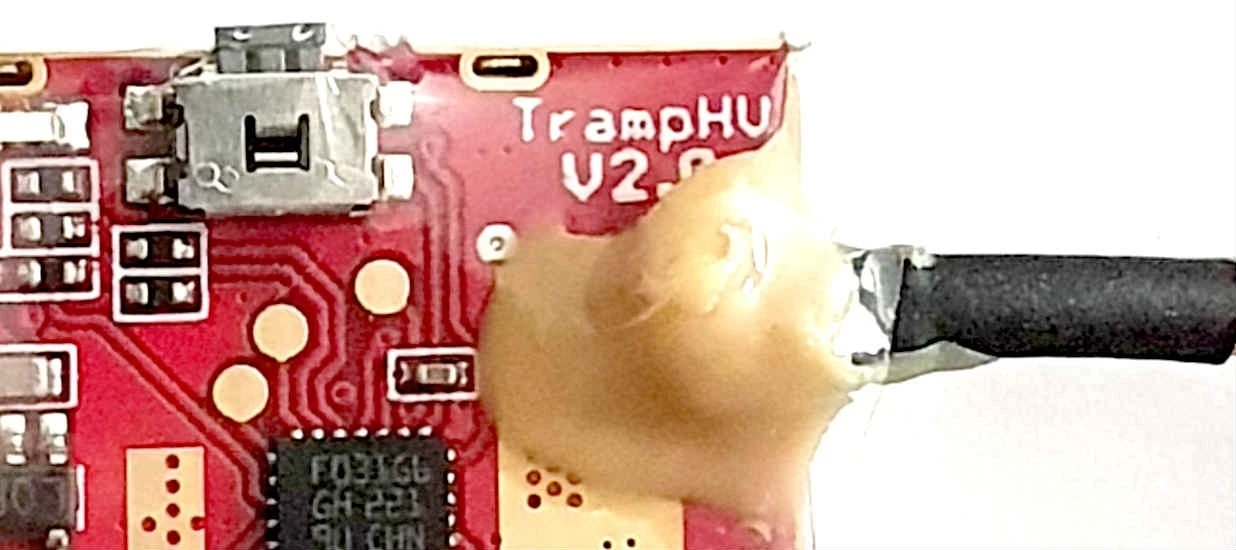

Please note the face lable on the V2 has not been updated, it still shows V1. These are the latest V2 HV Tramp, the conformation of the V2 is found on the reverse of the boards, please see the photos.



Features:

• Smallest direct LiPo powered vTx in the business.

• TNR Touch-free wand control.

• Traditional button+LED control of frequency and power.

• 1mW -> 600mW linear power control.

• All 40 standard channels.

• Built-in thermal protection.

• Factory power normalization.

• Glitch-Free frequency changes.

• Micro-power pit mode.

• Additional channels for race events (race wand only).



Specs:

• Dimensions: L=32mm x W=14mm x H=5mm

• Weight: 4g (Tx only, without SMA cable)

• Power Output: Programmable, 1mW to > 600mW

• Channels: 48 standard, arbitrary using race wand

• RF Impedance: 50 ohms

• RF Connector: U.FL

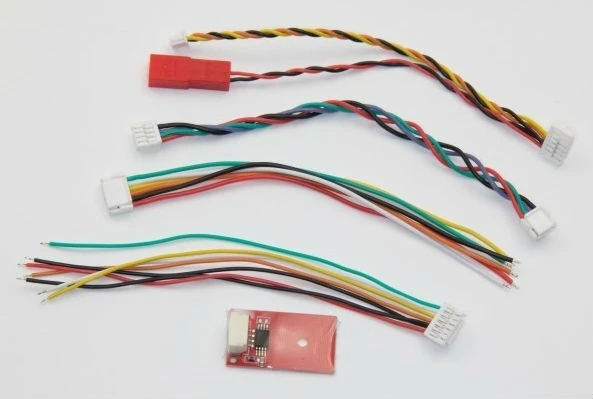

• AV Connector: JST-GH, 6 pin, locking

• TNR Connector: JST-GH, 4 pin, locking

• Audio: Mono, Sub-carriers on 6.0 and 6.5MHz (cloned)

• Modulation: FM, Audio and Video

• Pit Frequency: User/Race Organizer Definable

• Video Impedance: 75 ohms

• Power Requirements: 2s-4s HV Lipo

• Power Consumption: ~4W max. @ 600mW, ~1.9W @ 200mW
