ImmersionRC SpiroNET LZR Long Range Array Mounting Kit



The ImmersionRC LZR Long Range Array Mounting Kit allows yuou to mounting two of the ImmersionRC SpiroNet LZR patch antennas for the ultimate long-range 5.8GHz flying. Using the custom cables and mounting kit adding your antennas to your rapidFIRE receiver and fly further and with more confidence than ever before on 5.8.

The twin-antenna array, when coupled with a rapidFIRE receiver, provides all of the rapidFIRE multi-pathing elimination benefits at extreme range.

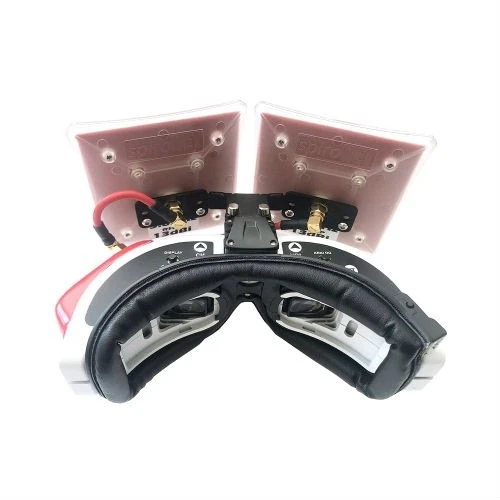

A milled carbon-fiber plate is mounted under the Dominator fan-plate cover. Two tool-free thumbscrews attach the formed aluminum mount to the goggles.

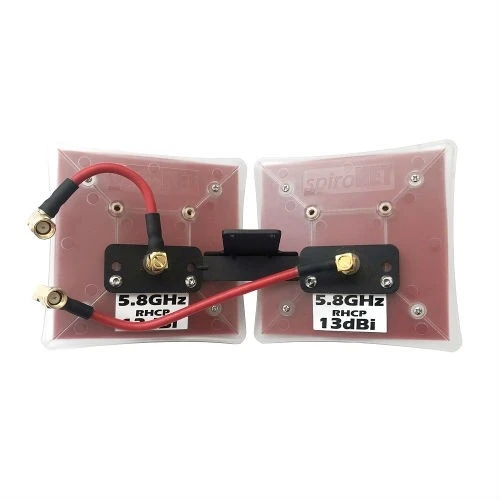

Four M3 screws mount the twin LZR 13dBi antennas to the aluminum mount and hook up the two supplied semi-rigid high-frequency cables.

The LZR Antennas or goggles shown in some pictures are not included, you need to add two LZR antennas to this kit array mounting kit.

Features when using the array with two LZR antennas:

• 5.8GHz Band, Twin 13dBi gain

• ~70 degree -3dB Horiz Beam Width, 35 Vert

• F/B Ratio > 35dB, VSWR < 1:1.35 @ Center Freq.

• Right Hand Circular Polarization

• Carbon Fiber FatShark Dominator Goggle Mount

• Thumb Screw Quick Release

• Two included 8GHz RG402 cables

• 10km+ (easy) on 5.8GHz

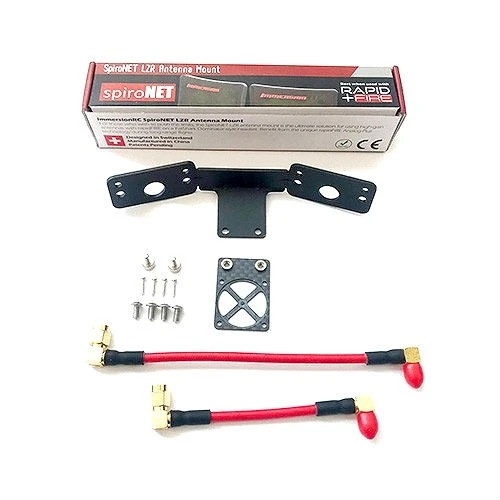

Supplied in the kit:

• 2x High quality (8GHz) Coaxial cables

• 1x Milled carbon fiber Dominator fan mount

• 2x Thumb Screws

• 4x Fan mount screws (extended)

• 4x Antenna screws

• 1x Stamped Aluminium antenna mount
