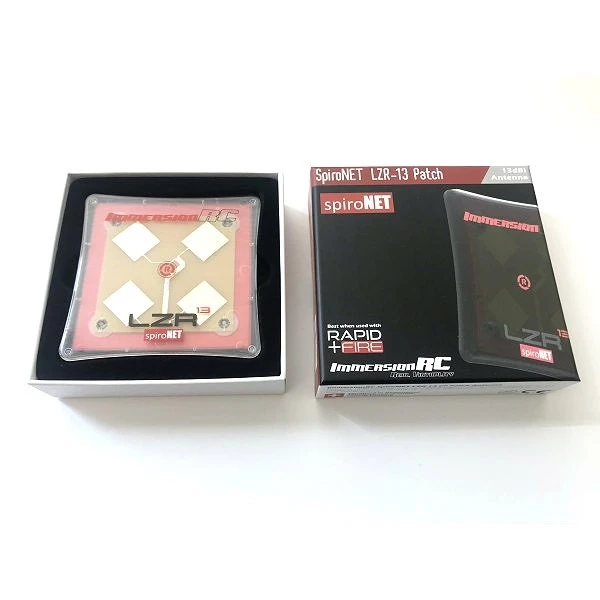

ImmersionRC SpiroNet LZR Antenna 5.8GHz 13dBi RHCP

The ImmersionRC SpiroNet LZR patch antenna is a 5.8GHz RHCP which has been custom-designed, with no expense spared for FPV pilots. The SpiroNet LZR patch antenna is light enough to be mounted directly onto an LCD headset, or directly onto the front of a 5.8Ghz receiver.

ImmersionRC SpiroNet LZR patch antenna will breathe new life into the CE-Legal 25mW systems, allowing multi-km range flights with ease.  For 600mW systems, its time to start worrying about the range of the control link, since with a combination of this antenna, and a spiroNET omni, the video range can greatly exceed the control range of most 2.4GHz radios.

• Precision manufactured with very tight tolerances, *each antenna* is 100% tested on a professional antenna tester (Rhode & Schwartz) to ensure maximum range and performance.

• SMA male connector compatible with all FatShark/ImmersionRC 5.8GHz products sold to date.

• Right-Hand circular polarization

• 5.8GHz ISM Band

• 13dBi gain

• Beam width 35 degrees (H + V)

• F/B Ratio 26dB

• VSWR < 1.5:1 (5740 – 5860MHz)

• Impedance 50ohms
