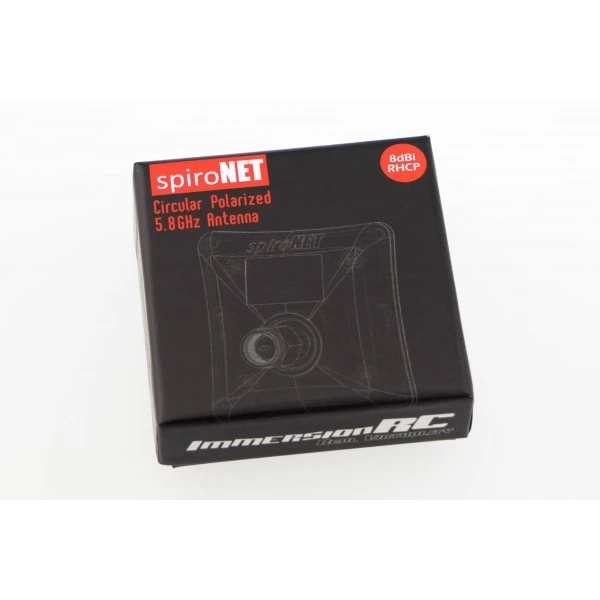

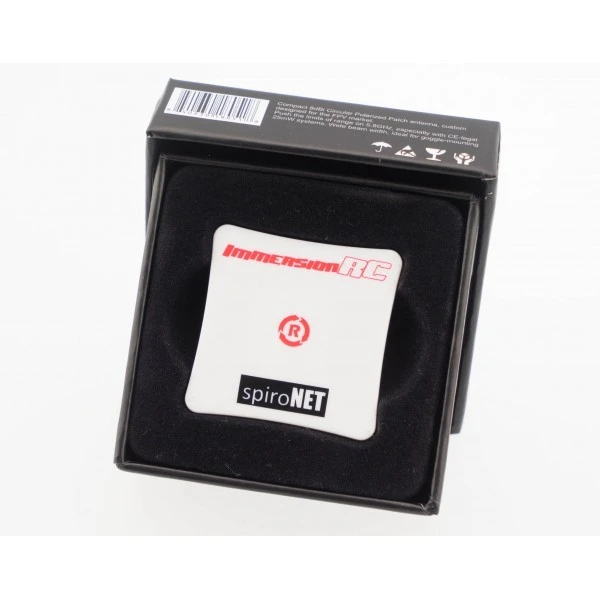

ImmersionRC SpiroNet 8dBi RHCP Mini Patch

The ImmersionRC 5.8 GHz Right-Hand (RHCP) Circular Polarized patch antenna has been custom designed for First Person View users, FPV video goggle users will be able to use the patch antenna directly mounted to their goggles, this patch antenna is only 7 grams.

The ImmersionRC LHCP antennas can also be used on on either the ImmersionRC Uno5800 V4.1 Race Edition 5.8 GHz A/V Receiver or the ImmersionRC Duo5800 V4.1 Race Edition 5.8 GHz A/V Receiver to deliver the best possible range and performnce. Every patch antenna has been tested on Rhode & Schwartz test equiment before shipping to ensure the highest level of precision during manufacture with very tight tolerances.

Features:

• Precision manufactured with very tight tolerances tested on Rhode & Schwartz to ensure maximum range and performance

• SMA male connector compatible with all FatShark/ImmersionRC 5.8GHz products sold to date

• Right-Hand circular polarization

• 5.8GHz ISM Band

• 8dBi gain

• Beam width -3dB at + / – 45 degrees (H + V) (90 degree total)

• F/B Ratio >356dB

• VSWR < 1:1.35 at 5800MHz

• Impedance 50 ohms

• Weight 7g
