ImmersionRC SpiroNet 5.8GHz Patch Antenna LHCP

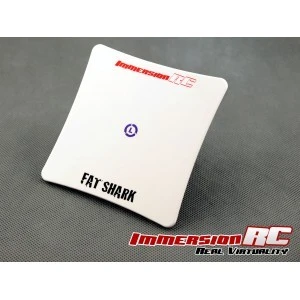

ImmersionRC SpiroNet 5.8 GHz LHPC Patch Antenna

The ImmersionRC Fat Shark Spiro Net 5.8 GHz Left Hand Circularly Polarized patch antenna have been custom designed for First Person View applications. This compact 13 dBi 5.8 GHz Left Hand Circularly Polarized antenna is small and lightweight, which means that it can be mounted directly onto any of the LCD headset from Fat Shark, like the Fat Shark Attitude V2 goggles. The ImmersionRC Uno or ImmersionRC Duo receiver’s users will also find this 5.8 GHz Circularly Polarized antenna very useful to extend the range and reliability of the Uno or Duo receivers which allows the best possible video link to you craft.

The Spiro Net 5.8 GHz Circularly Polarized patch antenna’s have been manufactured to very tight tolerances and are tested on professional antenna testers (Rhode & Schwartz) to ensure maximum range and performance is delivered. The range of an ImmersionRC 5.8 GHz 25 mW Transmitter is extended out to a much greater distance when used with ImmersionRC SpiroNet 5.8 GHz LHCP Circular Polarized Antennas, many users experience video reception in excess of a mile, while the ImmersionRC 600 mW 5.8 GHz Long Range Transmitter using the patch antenna on the receiver can exceed 3 miles in the right conditions when used with the ImmersionRC SpiroNet 5.8 GHz LHCP Antenna Set on the transmitter.

• SMA connector compatible with all FatShark / ImmersionRC 5.8 GHz products sold to date.

• Left-hand circular polarization.

• 5.8GHz ISM Band.

• 13dBi gain.

• Beam width 35 degrees (H + V).

• F/B Ratio 26dB

• VSWR < 1.5:1 (5740 – 5860MHz)

• Impedance 50ohms
