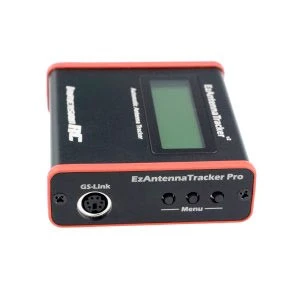

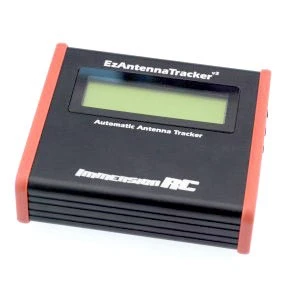

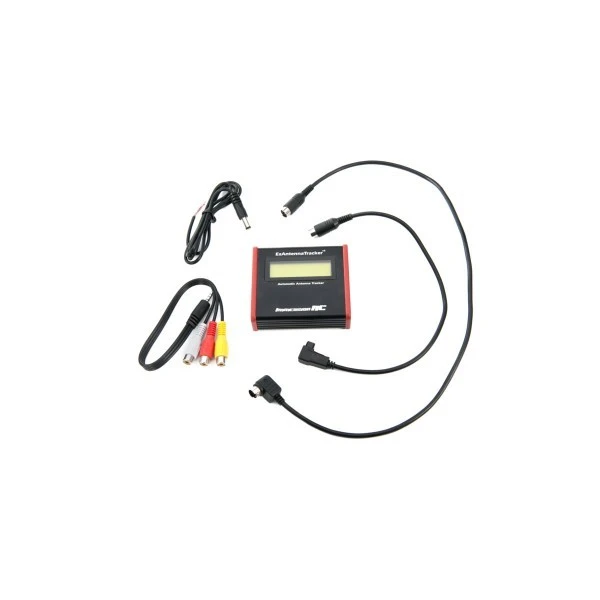

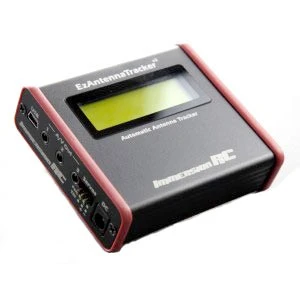

ImmersionRC EZ Antenna Tracker V2

The ImmersionRC EZ Antenna Tracker V2 is the replacement for the V1 and has been designed for First Person View applications; the ImmersionRC EZ Antenna Tracker V2 is a small and lightweight system which will allow you to connect directly to your antenna tracker station servos controlling the pan and tilt functions to keep your patch antenna on target with your airframes transmitter. The ImmersionRC EZ Antenna Tracker V2 uses the audio channel from the ImmersionRC 5.8 GHz 25 mW Transmitter or ImmersionRC 600 mW 5.8 GHz Long Range Transmitter for the telemetry downlink information of the of the aircraft position to ensure that the information supplied from the either the ImmersionRC EZOSD or ImmersionRC Tiny Telemetry module is up to date, meaning that the ImmersionRC EZ Antenna Tracker V2 is always pointing the ImmersionRC SpiroNet 5.8 GHz Patch Antenna directly towards the craft for the best possible video quality and range.

The ImmersionRC EZ Antenna Tracker V2 operates on 5 – 7.4 Volts and is supplied with a 3.5 mm pole socket for direct connection to receivers and has a standard USB port on board to allow for updates which will keep the system updated when new firmware is available. The integrated LCD on the Immersion RC EZ Antenna Tracker 2V the user to see a real time telemetry and sensor data which includes the EzUHF status. The menu is very intuitive; user can have easy access to use the system through just the three buttons. On board is a non-volatile memory that will record the last know position of the model and also stores the antennas position and orientation so no configuration is needed for repeated flights from the same location. The Immersion Antenna Tracker V2 also has the added features of an integrated power supply to power the servos, a video buffer and a single-cable hookup to an ImmersionRC Uno, and Duo A/V receiver.
