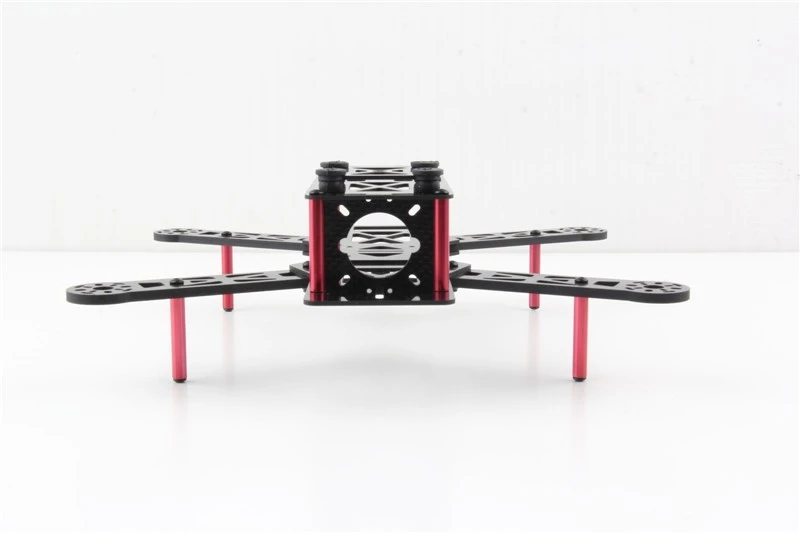

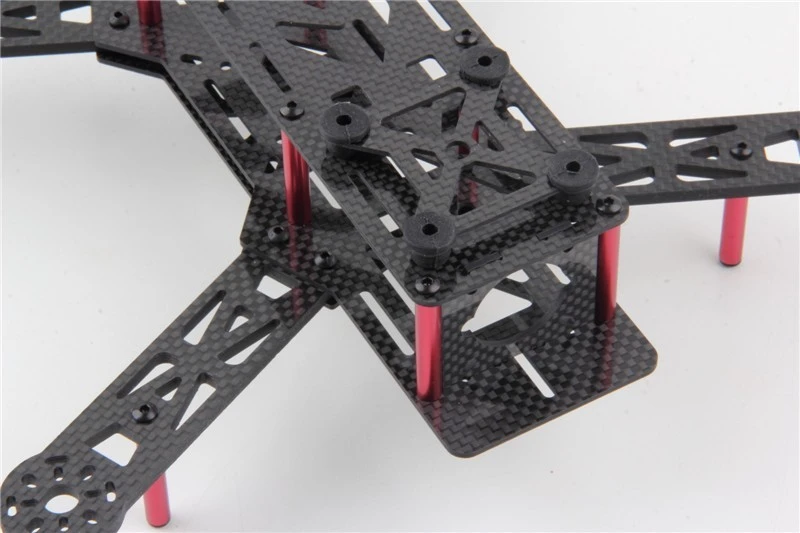

H280 Mini Carbon Fiber FPV Quadcopter Frame

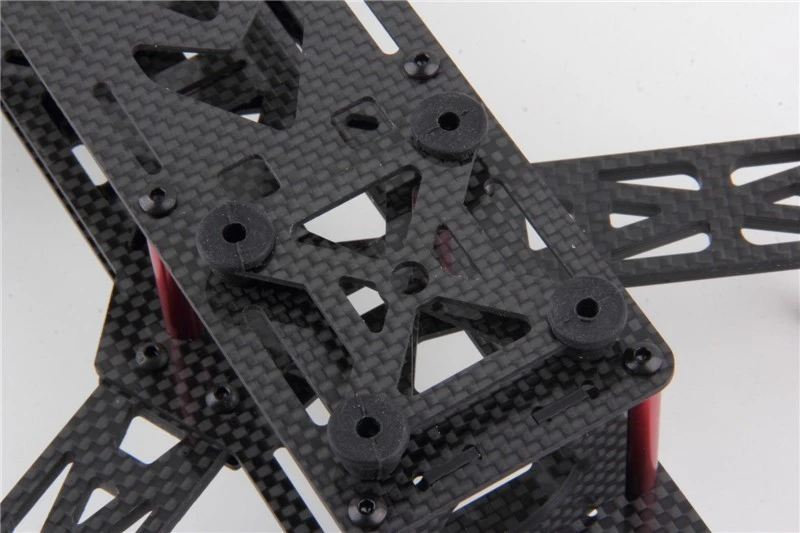

The Mini H280 3K Carbon Fiber Quadcopter frame kit is a strong lightweight frame designed for First Person View Racing, the 280-sized frame is great for fast flights in tight flying locations or for the opposite, slow gentle flights making it a very versatile frame. The weight of the naked frame is less than 170 grams. The Mini H280 can run with either 5 or 6 inch propellers using 12 -20 Amp ESC’s. The plate on the top is isolated from vibrations, which makes it an ideal location to strap on an action camera of your choice. The standard spaced motor holes on the arms mean that you can add the motor of your choice and customise the frame to meet your needs, the best sized motors for this frame are between 1806 and 2208 with a KV of 1500 to 2600 and running a 4s LiPo battery around 1300-1800 mAh’s. The H280 comes as a kit to build which includes all of the parts you need.

Specifications:

• Main material: 3K Carbon Fiber

• Wheelbase: 280mm With rubber damper to decrease vibration during flight

• Aluminium alloy spacer, light weight, reliable

• Package size: 23 X 9 x 5cm

• Package weight: 230g

• Mini H280 Carbon Fiber Quadcopter Frame Kit (Unassembled)
