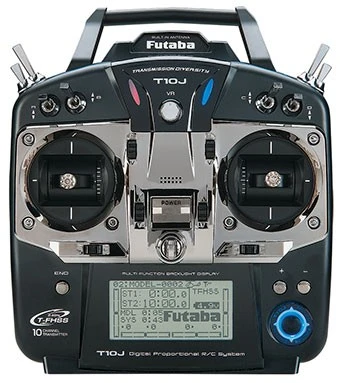

Futaba T10J 10-Channel 2.4 GHz Computer Radio System

The Futaba T10J radio uses the very latest T-FHSS transmission technology with the R3008SB receiver to offer a full 10 channel 2.4 GHz radio controllers system combined with sophisticated telemetry options for real time flight information. The telemetry transmission allows the pilot to view the signal strength, receiver battery voltage and external battery voltage; these features are built-in to the R3008SB receiver. Additional telemetry sensors from the Futaba range can be added as required.

The T10J displays the telemetry data on the large, clear backlit LCD displayed screen, there is also an option for an audio output, and this is available via an earphone (not supplied). The T10J is an extremely sophisticated system which is supplied complete with transmitter battery and delta peak wall charger, the full range R3008SB receiver has 8 conventional outputs, or a full 10 through the S-Bus or S-Bus 2 outputs. The T10J also includes an S-Bus servo programming function with up to 30 model memories, the T10J also features a model memory transfer function, where a model memory can be wirelessly transferred to or from another T10J transmitter, or from the T8J. This function allows pilots to quickly switch radios and program settings for Multirotor or fixed wing aircrafts.

The T10J also includes S-FHSS transmission; all of the current FHSS air receivers can be used with the T10J ranging from the micro 6 channel R2106GF through to the 8 channel R2008SB. The T10J has extremely powerful mixing functionality, with 16 aircraft, 17 helicopters and 13 glider mixes being built-in, there are also an additional six freely programmable mixers.



Features:

• Mode 2

• 30 Model Memory

• Telemetry of signal strength, Rx battery voltage and external voltage as standard

• Wide range of optional telemetry sensors available

• Large 128 x 64 dot LCD w/LED Backlight

• T-FHSS and S-FHSS transmission modes

• Aircraft, Helicopter and Glider mixing functions

• S-Bus/S-Bus 2 servo programming function

• Model Memory transfer function

• Telemetry audio via earphone (earphone not included)

• Rechargeable Tx Battery and Charger

• Alarm/Warning function

• Two circuit Timer

• Auxiliary Channels Selectable

• Six Programmable Mixers



The T10J Radio Controller supports the following telemetry sensors:

• Futaba Telemetry Voltage Sensor SBS-01V

• Futaba Telemetry Temp Sensor SBS-01TE

• Futaba Telemetry Temperature Sensor SBS-01T

• Futaba Telemetry Optical RPM Sensor SBS-01RO

• Futaba Telemetry Magnet RPM Sensor SBS-01RM

• Futaba Telemetry GPS Sensor SBS-01G

• Futaba Telemetry Air Pressure Sensor SBS-01A

• Futaba External Voltage Lead SBS-01V
