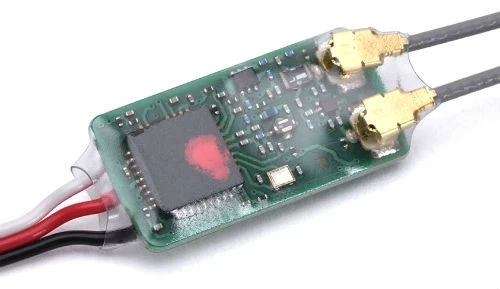

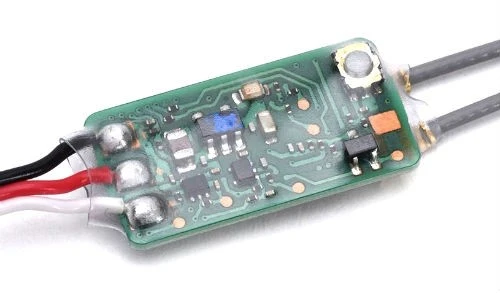

Futaba R2000SMB Receiver

The Futaba R2000SMB is a micro S-Bus receiver aimed at the FPV pilot. The R2000SMB is micro in size, its only 2.9 grams. However, it features dual antenna diversity, S-Bus with RSSI (Received Signal Strength Indicator) and is suitable for lightweight micro models, indoor and FPV racing drones. The Futaba R2000SMB uses the S-FHSS protocol and S.Bus port providing up to 8 channels.

The Futaba R2000SMB micro S-Bus receiver RSSI has a battery failsafe voltage set to 3.7V, this is the low voltage level of a 4-cell NiMH or NiCd battery. Ensure you use this battery voltage or ESC with a compatible regulated voltage. The failsafe function can be set for each channel – the setting method differs with each transmitter, so please refer to the instruction manual.

Spec:

• Dual Antenna Diversity

• Only 20 x 10 x 3mm

• Weight 2.9 grams

• Operating voltage 3.7-8.4 Volts

• S-FHSS 2.4 GHz

• Battery F/S 3.7 Volts
