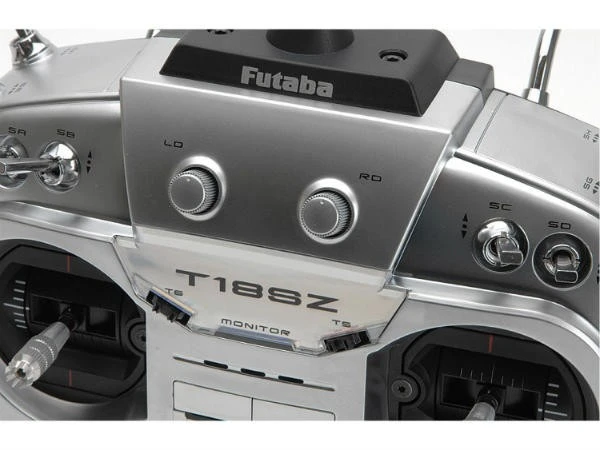

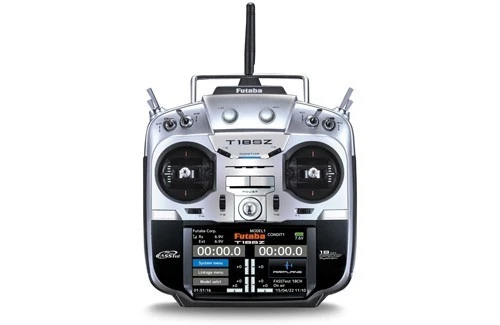

Futaba 18SZ 2.4 Ghz Mode 2 Radio Controller + R7008SB Receiver

Futaba 18SZ 2.4 Ghz Mode 2 Radio Controller + R7008SB Receiver P-CB18SZ/LUK

Packed full of possibilities, the Futaba 18SZ includes a Li-Fe battery for extended run times, S-FHSS, T-FHSS, FASST and FASSTest transmission systems, 4.3″ colour ultra quick response touch screen, flight conditions, a massive range of mixing and programming options for Aircraft, Gliders, Helicopters and Multirotors, Telemetry, Data Logging, etc, not to mention full 18 channel operation.

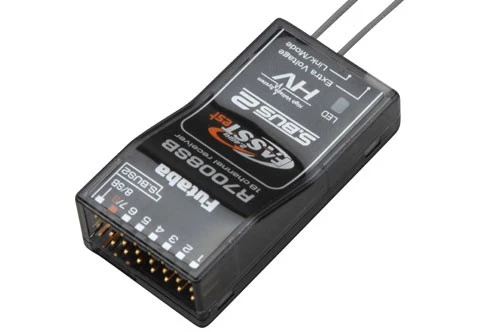

Supplied complete with the 8 18 channel R7008SB receiver, the Futaba 18SZ is the perfect radio for any serious pilot, and of course the regular software updates provided by Futaba will keep this superb radio up to date.

• Futaba 2.4GHz FASSTest, FASST, T-FHSS, S-FHSS Modulation

• 18 Channel (16 Linear + 2 Digital)

• 30 Internal Model Memory

• SD Card External Model Memory (SDHC is available.)

• Telemetry System (Details Below)

• Voice Message

• Easy Software Updates using SD card

• Stick Calibration

• Ultra-Fast 109mm (4.3″) Colour TFT-LCD Touch Screen

• 2 Front Dials

• 2 Side Levers

• 6 Trim Levers

• 8 Toggle Switch

• Long life LiFe Battery (LT2F2100B)

• Antenna Angle Adjustment (90 degree and 3 step Rotation)

• Built-in Speaker

• Earphone Jack

• S.BUS I/F (with Power Supply)

• Trainer PPM 8CH / PPM 12CH / S.BUS (16CH)

• Trainer S.BUS Port

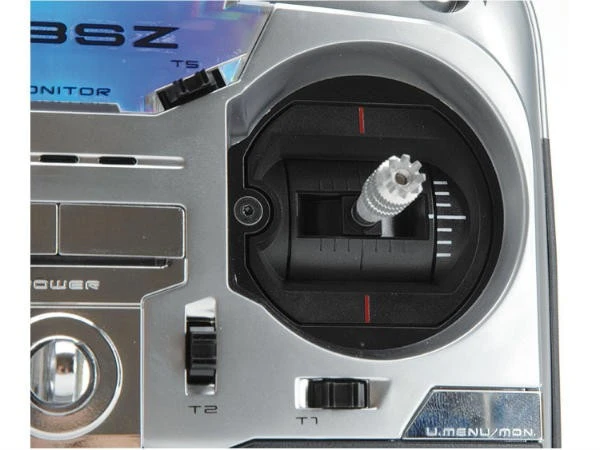

• Adjustable Angle Sticks

• Built-In Vibrator

Basic Program Features

• 15 Character User Names

• 15 Character Model Names

• Condition Name

• Function Setting

• Function Rename (AUX function only)

• Sub Trim (±240 steps)

• Servo Reverse

• Fail Safe

• Battery Fail Safe (All Channels on FASSTest/FASST-Multi/S-FHSS, 3 Channel FASST 7CH)

• EPA (30 – 140% with Limit setting)

• Servo Speed Adjustment

• Trim Setting (Step, Rate, Mode)

• Flight Condition (Maximum 8 conditions)

• AFR (D/R)

• AFR Curve Mode (3 Types)

• AFR Curve Point Number (Maximum 17 points)

• Programmable Mixing (10 per Condition)

• Throttle Cut

• Idle down

• Logic switch (Condition switch only)

• Data editor for S.BUS equipment

• Servo Monitor (with NT and Moving Test)

• 2 Up/Down Timers

• Integral Timer (System Timer)

• Model Timer

• Stick Alarm

Aircraft

• 13 Wing Types

• 3 Tail Types

• 2 Rudder Types

• Flap Settings

• AILE Differential

• AILE to Camber FLAP Mix

• AILE to Brake FLAP Mix

• AILE to RUD Mix

• AIRBRAKE to ELEV Mix

• RUDD to AILE Mix

• RUDD to ELEV Mix

• Camber Mix

• ELEV to Camber Mix

• Camber FLAP to ELEV Mix

• Snap Roll

• Airbrake Mix

• V-Tail

• Ailvator

• Winglet

• FLAPERON Mix (use Camber Mix)

• ELEVON Mix (use Camber Mix)

• Motor Mix

• Multi Engine

• Gyro Sense

• THR Curve (Using AFR)

• PIT Curve (Using AFR)

Helicopter

• 8 Swash Types (H-1, H-2, H-3, HR3, HN3, HE3, H-4, H4X)

• Pitch / Throttle Curve

• 3 Pitch / Throttle Curve Modes

• Pitch / Throttle Curve (Maximum 17 points)

• Acceleration

• Throttle Hold

• Swash Mixing

• Throttle Mixing

• PIT to NEEDLE Mixing

• PIT to RUD Mixing

• Gyro Sense (3-axis is available)

• Governor

• Condition Hold

• Hovering Pitch

• High / Low Pitch

• Hovering Throttle

• Swash AFR

• Swash Setting (Mixing Rate, Linkage Compensation, Speed Compensation)

• Swash Ring

• Throttle Limiter

Glider

• 13 Wing Types

• 3 Tail Types

• 2 Rudder Types

• Flap Settings

• AILE Differential

• AILE to Camber FLAP Mix

• AILE to Brake FLAP Mix

• AILE to RUD Mix

• RUDD to AILE Mix

• AIRBRAKE to ELEV Mix

• Camber Mix

• ELEV to Camber Mix

• Camber FLAP to ELEV Mix

• Butterfly Mixing

• Butterfly to ELEV (ELEV rate in Butterfly Mix)

• Trim Mix 1

• Trim Mix 2

• V Tail Mix

• Ailvator Mix

• Winglet Mix

• Flaperon Mix (Using Camber Mix)

• Elevon Mix (Using Camber Mix)

• Motor Mix

Telemetry Options

• Receiver Battery

• Temperature Sensor

• RPM Sensor (Magnetic)

• RPM Sensor (Optic)

• Altitude Sensor (with Vario)

• GPS Sensor (Included Altitude Sensor)

• Voltage Sensor

• Current Sensor

• Voice

• Data Logging



The T18SZ Radio Controller supports the following telemetry sensors:



• Futaba Telemetry Voltage Sensor SBS-01V

• Futaba Telemetry Temp Sensor SBS-01TE

• Futaba Telemetry Temperature Sensor SBS-01T

• Futaba Telemetry Optical RPM Sensor SBS-01RO

• Futaba Telemetry Magnet RPM Sensor SBS-01RM

• Futaba Telemetry GPS Sensor SBS-01G

• Futaba Telemetry Air Pressure Sensor SBS-01A

• Futaba External Voltage Lead SBS-01V
