Futaba 14SG Radio Controller Combo With R7008SB Receiver (Mode 2)

Futaba 14SG Radio Combo with R7008SB Receiver (Mode 2)

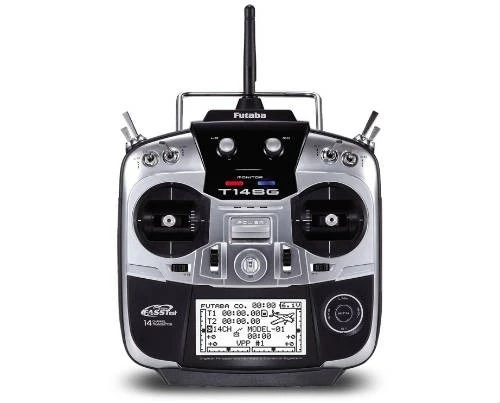

Futaba’s new 14SG radio system is the perfect radio for any pilot looking for a feature packed radio offering amazing flexibility and upgradability, and of course comes complete with built-in telemetry, supplied with the 8 / 18 channel Futaba R7008SB Receiver S-Bus HV 2.4GHz receiver. The  Futaba 14SG is able to transmit on Futaba’s FHSS, FASST and FASSTest transmission systems, the 14SG allows the use of small, light and low cost FHSS receivers as well as FTR (Futaba Transmitter Ready) models, whilst also enabling owners of large complicated and expensive aircraft and helicopters to utilise the ultimate transmission system for reliability and interference rejection, Futaba’s FASST system, those requiring telemetry having the further option of FASSTest, FASST expanded system telemetry. Programming is made easier than ever with rotary dial along with integrated switches to quickly select or exit programs etc, whilst the vibration warning alert function adds increased safety/security in flight and even an S-Bus servo programming function is included. The Futaba 14SG Radio is supplied with the HT5F1800B 6.0v 1800mAh Tx battery, which will give around 4 hours flying – more than enough for most pilots.

Main Features:

• 14 Channels

• FHSS/FASST/FASSTest Transmission Modes

• Aircraft/Helicopter/Glider Modes

• Telemetry

• Comprehensive Mixing

• 30 Model Memory (Unlimited with optional SD Card)

• Updatable Software

• Left and Right Sliders



The Futaba 14SG Radio and R7008SB receiver supports the following telemetry sensors:

• Futaba Telemetry Voltage Sensor SBS-01V

• Futaba Telemetry Temp Sensor SBS-01TE

• Futaba Telemetry Temperature Sensor SBS-01T

• Futaba Telemetry Optical RPM Sensor SBS-01RO

• Futaba Telemetry Magnet RPM Sensor SBS-01RM

• Futaba Telemetry GPS Sensor SBS-01G

• Futaba Telemetry Air Pressure Sensor SBS-01A

• Futaba External Voltage Lead SBS-01V



Specifications:

• Transmitting Frequency: 2.4GHz band

• Switchable: FASSTest14CH, FASSTest12CH, FASST MULTI, FASST 7CH, S-FHSS

• Power Supply: 6.0V HT5F1800B NiMH battery

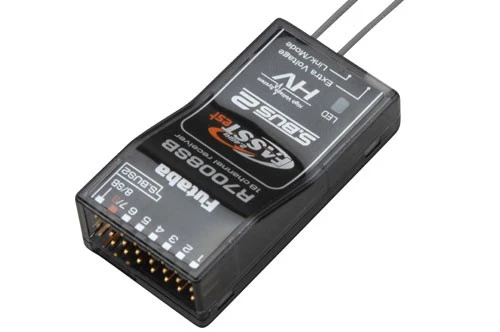

• R7008SB Receiver

• Receiving Frequency: 2.4GHz FASSTest system

• Power Requirement RX: 3.7 – 7.4V (voltage range 3.5 – 8.4V)

• Current drain RX: 75mA

• Extra Voltage Port RX: 0 – 70V DC

• RX Size: 0.98×1.9×0.56″ (24.9×47.3×14.3mm)

• Weight: 10.9g



Features:

• Channels: 12 proportional, 2 switched

• Compatible with FASSTest, FASST and S-FHSS protocols

• FASSTest telemetry – compatible with Futaba telemetry sensors (sold separately)

• Free user-updatable software

• 30-model memory

• 10-character user naming

• 10-character model naming

• Airplane, helicopter and glider programming

• Large, 1.75” x 3” backlit LCD screen with 128 x 64 resolution

• SensorTouch™ programming

• SD Card compatibility for external model memory and software updates (SD: 32MB-2GB; SDHC 4GB-32GB)

• Left and right assignable slider switches

• Two assignable rotary knobs

• Six assignable three-position switches

• One assignable momentary two-position switch

• One assignable two-position switch

• Comfortable rubber grips on the sides and back

• Wide top switch spacing

• Adjustable stick tension

• Dual ball bearing gimbals

• 4 vibration warning types

• Home/Exit; User Menu/Servo Monitor buttons

• Audio earphone jack (for telemetry alarms)

• 6V 1800mAh NiMH battery pack

• User stick calibration

• Trainer system

• Servo speed adjust

• 5 programmable mixes

• V-tail, Ailvator, winglet, motor mixing

• Trim mix

• Logic switch (condition switch only)

• Internal programmer for S.Bus servos

• User menu

• Servo monitor (neutral and moving tests)

• 2 count up/countdown timers

• Integral timer

• Model timer

• Quick model select



Airplane mode:

• 7 different wing types

• 3 different tail types

• 2 different rudder types

• Flap setting menu

• Differential ailerons

• Aileron to camber flap mixing

• Aileron to brake flap mixing

• Aileron to rudder mixing

• Rudder to aileron mixing

• Rudder to elevator mixing

• Camber mixing

• Elevator to camber mixing

• Camber flap to elevator mixing

• Snap roll mixing

• Airbrake mixing

• V-Tail mixing

• Ailvator

• Winglet

• Motor mixing

• Fuel mixture mixing

• Gyro mixing

• Throttle curve (5-point)

• Pitch curve (5-point)

• Idle down



Helicopter Mode:

• 6 swash plate types

• Pitch/throttle curves (5-point)

• Throttle hold

• Swash mix

• Throttle mix

• Pitch to rudder mixing

• Fuel mixture

• Gyro (Flybarless support)

• Governor (700-3500 rpm)

• Hover pitch

• Hover throttle

• High/low pitch

• Swash AFR

• Swash setting (mixing rate, linkage compensation, speed compensation)

• Swash ring (electronic)

• Throttle cut



Glider Mode:

• 11 different wing types

• 3 different tail types

• 2 different rudder types

• Flap setting menu

• Differential ailerons

• Aileron to camber flap mixing

• Aileron to brake flap mixing

• Aileron to rudder mixing

• Rudder to aileron mixing

• Rudder to elevator mixing

• Camber mixing

• Elevator to camber mixing

• Camber flap to elevator mixing

• Butterfly mixing

• Butterfly to elevator mixing
