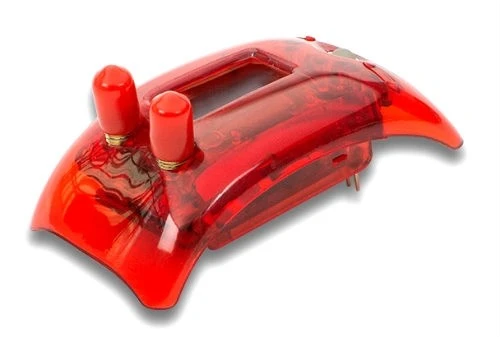

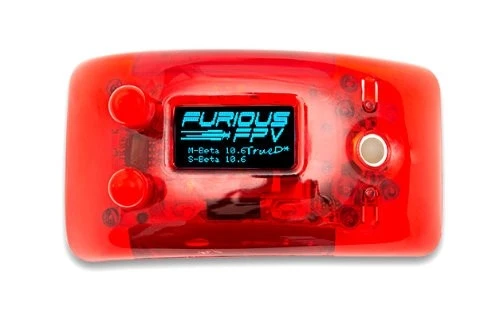

FuriousFPV True-D X Receiver Module

The FuriousFPV True-D X Receiver Module has advanced analog video processing and will automatically find and show all the detected channels (the channels closest to your VTX transmission frequency will be displayed although it will prioritize channels which you have saved) sorted by corresponding signal strength. The FuriousFPV True-D X Receiver Module will also enable you to scan the 5.8GHz band and displays the RSSI of each frequency in a graph. This means that you can use this mode to check the transmission of video transmitters or to find a channel with the lowest noise floor for the best video performance.

The FuriousFPV True-D X Receiver Module comes with 2 modes: TRUE X, TRUE Diversity and an indoor and outdoor setting to maintain the best video signal depending on the flight environment. A useful feature of the FuriousFPV True-D X Receiver Module is helping to find a lost drone. If you lose your drone while flying there is a graphical interface which will guide you to the drone with a buzzer warning in the direction that it detects the strongest signal along with a RSSI graph. However, this can only work if your drone is still transmitting (battery still plugged in).

All Dominator goggles, including V1, V2, V3, SE, HD1, HD2, HD3, HDO are supported by the FuriousFPV True-D X Receiver Module. There is an auxiliary power board included with a flat flex cable for goggles that cannot provide enough power, the FatShark HDO do not require this.



Specifications:

• Antenna Connection: SMA Female connector

• Working Frequency: 5.8GHz

• Input Power: 5V-500mA

• Number of Channels: 48 Channels

• CE/FCC certified



Package includes:

• True-D X

• Replacement trackball

• Adapter board

• Ribbon cables

• Manual
