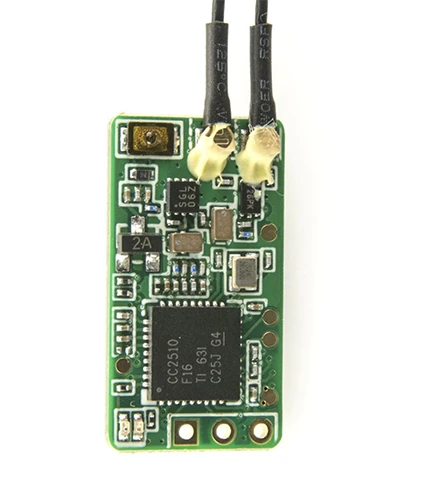

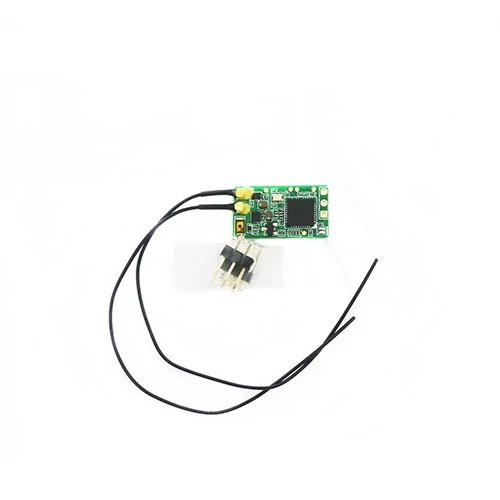

FrSky XM+ Micro D16 SBUS Full Range Receiver

The FrSky XM Plus is a tiny 2.4GHz diversity receiver, weighing in at less than  2g it is perfect for those racers who are looking to lower their AUW. These are classed as full range, so identical to your X4R, XSR and D4R setups. However, please note they don’t have an S.Port (only SBUS for control signals) so they can’t be used for telemetry setups. The FrSky XM Plus is a full range receiver at only1.6 grams, this is a very popular receiver for use on racing drones.

Specifications:

• Dimension: 21.5 x 12 x 3.5mm (L x W x H)

• Weight: 1.6g

• Number of Channels: Up to 16CH from SBUS (1-15ch for PWM,16ch RSSI for FC)

• Operating Voltage Range: 3.7~10V

• Operating Current: 30mA @5V

• Operating Range: 1km

• With RSSI output on board: Analog 0~3.3V

• Firmware Upgradeable

• Compatibility: FrSky D16 mode
